Usage

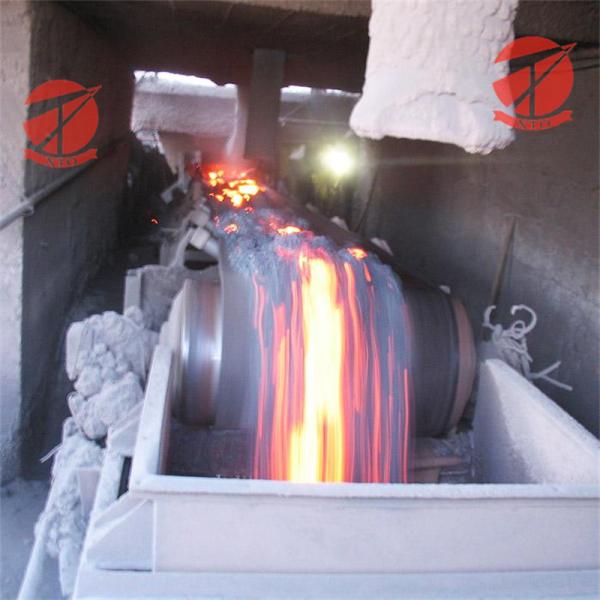

Heat resistant steel cord conveyor belt is a special conveyor belt with steel cord as the skeleton and high temperature resistance. It has high strength, durability and stability, can work normally in high temperature environment, and is widely in steel, metallurgy and other industries. When selecting and using, heat resistant steel cord conveyor belt is necessary to pay attention to the working environment temperature and load requirements, and do installation and maintenance to ensure its normal operation.
Characteristics
Developed new structure carcass materials will reduce the strength loss of heat aging during running, and thus will extend the working life.
The cover uses superior ethylene-propylene rubber or halogenate rubber which will enhance the high temperature resistant property of the rubber and reduce the loss of heat aging.
Standard Specifications
Model | Tensile Strength(N/mm) | Cord Pitch (mm) | Cord Diameter (mm) | Min Cover thickness (mm) | Width (mm) |
ST630 | 630 | 10 | 3 | 4 |
800-2400 |
ST800 | 800 | 10 | 3.5 | 4 | |
ST1000 | 1000 | 12 | 4 | 4 | |
ST1250 | 1250 | 12 | 4.5 | 4 | |
ST1600 | 1600 | 12 | 5 | 4 | |
ST2000 | 2000 | 12 | 6 | 4 | |
ST2500 | 2500 | 15 | 7.2 | 5 | |
ST3150 | 3150 | 15 | 8.1 | 5.5 | |
ST3500 | 3500 | 15 | 8.6 | 6 | |
ST4000 | 4000 | 15 | 8.9 | 6.5 | |
ST4500 | 4500 | 16 | 9.7 | 7 | |
ST5000 | 5000 | 17 | 10.9 | 7.5 | |
ST5400 | 5400 | 17 | 11.3 | 8 | |
ST6300 | 6300 | 19.5 | 12.8 | 10 | |
ST7000 | 7000 | 19.5 | 13.5 | 10 | |
ST7500 | 7500 | 21 | 15 | 10 |
Note: Cover thickness, cord diameter, and cord pitch can be manufactured according to customer’s requirements.
Cover Properties
Item | GB20021Standard | ||||
T1 | T2 | T3 | T4 | ||
Test Temperature | |||||
≤100℃ | ≤125℃ | ≤150℃ | ≤175℃ | ||
Permitted change range | |||||
Hardness | Difference Before and after aging | +20 | +20 | ±20 | ±20 |
Maximum after aging | 85 | 85 | 85 | 85 | |
Tensile strength | Change rate of property % | -25 | -30 | -40 | -40 |
Minimum value after aging | 12 | 10 | 5 | 5 | |
Elongation at break | Change rate after aging % | -50 | -50 | -55 | -55 |
Minimun value after aging | 200 | 200 | 180 | 180 |
