US Stainless Steel Five-Way Flanged Ball Valve with PN1.0-32.0MPa Nominal Pressure
US Stainless Steel Five-Way Flanged Ball Valve with PN1.0-32.0MPa Nominal Pressure
US Stainless Steel Five-Way Flanged Ball Valve with PN1.0-32.0MPa Nominal Pressure
US Stainless Steel Five-Way Flanged Ball Valve with PN1.0-32.0MPa Nominal Pressure
US Stainless Steel Five-Way Flanged Ball Valve with PN1.0-32.0MPa Nominal Pressure
US Stainless Steel Five-Way Flanged Ball Valve with PN1.0-32.0MPa Nominal Pressure
US Stainless Steel Five-Way Flanged Ball Valve with PN1.0-32.0MPa Nominal Pressure
US Stainless Steel Five-Way Flanged Ball Valve with PN1.0-32.0MPa Nominal Pressure
US Stainless Steel Five-Way Flanged Ball Valve with PN1.0-32.0MPa Nominal Pressure
US Stainless Steel Five-Way Flanged Ball Valve with PN1.0-32.0MPa Nominal Pressure
US Stainless Steel Five-Way Flanged Ball Valve with PN1.0-32.0MPa Nominal Pressure
US Stainless Steel Five-Way Flanged Ball Valve with PN1.0-32.0MPa Nominal Pressure
Specifications
Model NO. :
Q45F-16P
Driving Mode :
Pneumatic/Electric
Nominal Pressure :
PN1.0-32.0MPa
Channel :
Straight Through Type
Structure :
Oil Seal Ball Valve
Type :
Floating Ball Valve
Function :
Blow-Down Valve, Atmospheric Valve, Bypass-Valve
Temperature :
Normal Temperature
Standard :
Hg/20592
Application :
Industrial Usage, Water Industrial Usage, Household Usage
Transport Package :
Plywood Case
Specification :
DN15-DN100
Trademark :
XuTeng
Origin :
Zhejiang China
HS Code :
8481804090
Supply Ability :
2000PCS/Month
Package Size :
30.00cm * 30.00cm * 20.00cm
Package Gross Weight :
5.000kg
Media :
Oil, Water ,Gas,Acid,Petroleum,Coal,Thick and Corr
Material :
Stainless Steel
Connection Form :
Flange
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Place of Origin :
Zhejiang China
Certification :
CE/SGS/ISO9001
MOQ :
1
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Price :
negotiate
Description
US Stainless Steel Five-Way Flanged Ball Valve with PN1.0-32.0MPa Nominal Pressure

Product Description
US Stainless Steel Five-Way Flanged Ball Valve with PN1.0-32.0MPa Nominal Pressure

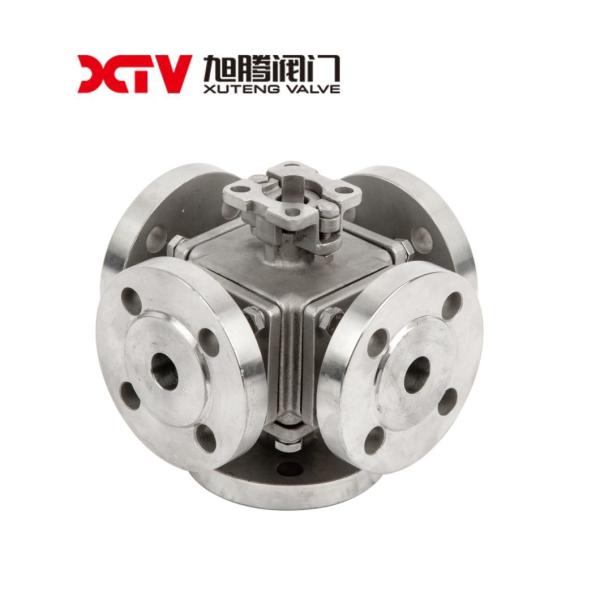

Xuteng brand five-way flanged ball valve can choose from one inlet to four outlets selectively, or from four inlets to one common outlet.
It has a set of specially designed positioning mechanism, which relies on precise position limit technology to realize the determination of each interface to ensure the maximum flow path.
The conventional pressure resistance can reach 34MPa.
Reliable quality, durable, is the best choice for high-quality needs, welcome to negotiate, Xuteng will create a better future with you.
Product Name Stainless Steel Five-Way Flanged Ball Valve
1. Material Stainless Steel 304/316( CF8/CF8M)
2. Size 1/2''~4'' ( DN15~DN100)
3.Certificate ISO9001 & CE
4. Port Reduce Port, L type & T type available
5. Working Pressure 1000PSI (PN63/6.3Mpa)
6. Working Temp. _20ºC~200ºC
7. Seal PTFE, RPTFE, PPL,PI
8. Locking handle Option
9. Inspection& Testing According to API598
10.Delivery Time 15~20 Days
11.Payment Terms T/T, Western Union, PayPal, etc.
30% prepayment, 70% balance paid before shipping or against copy of BL
12.Warranty 12 Months after leaving factory
13.Others We also manufacture High Platform Flange Ball Valve, Gate Valve, Globe Valve, Check Valve & Y Strainer
