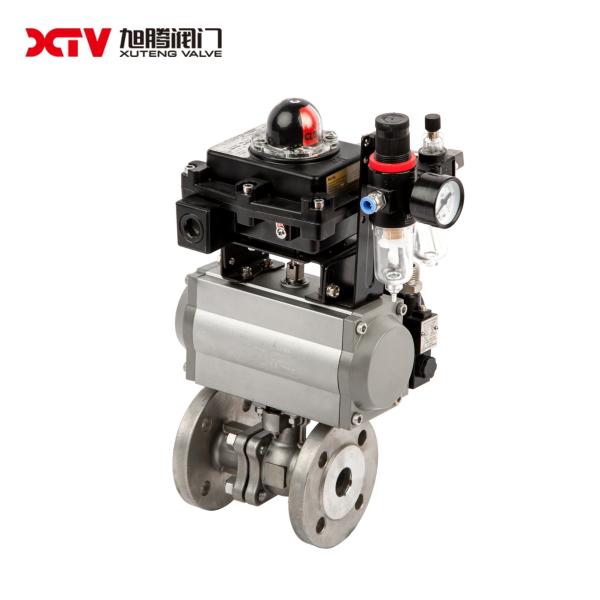

Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100
Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100
Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100
Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100
Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100
Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100
Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100
Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100
Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100
Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100
Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100
Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100
Specifications
Model NO. :
Q41F-64C
Driving Mode :
Electric, Pneumatic, Manual
Nominal Pressure :
PN1.0-32.0MPa
Channel :
Straight Through Type
Structure :
Floating Ball Valve
Type :
Floating Ball Valve
Function :
Blow-Down Valve, Relief Valve, Bypass-Valve, Industrial Usage, Water Industrial Usage, Househol
Temperature :
High Temperature
Standard :
GB/T12237
Application :
Industrial Usage, Water Industrial Usage, Household Usage
Net Torque :
7n.M-1250n.M
Transport Package :
Plywood Case
Specification :
1/2"-12" / DN15-DN300
Trademark :
Xuteng
Origin :
Zhejiang China
HS Code :
8481801090
Supply Ability :
10000PCS/Week
Package Size :
40.00cm * 20.00cm * 30.00cm
Package Gross Weight :
3.000kg
Media :
Oil, Water, Gas, Acid
Material :
Carbon Steel
Connection Form :
Flange
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Place of Origin :
Zhejiang China
Certification :
CE/SGS/ISO9001
MOQ :
1
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Price :
negotiate
Description
Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100
The ball of the ball valve is floating. Under the action of the medium pressure, the ball can produce a certain displacement and press tightly on the sealing surface of the outlet end to ensure the sealing of the outlet end. The floating ball valve has a simple structure and good sealing performance, but the load of the ball bearing the working medium is all transferred to the outlet sealing ring, so it is necessary to consider whether the sealing ring material can withstand the working load of the ball medium. This structure is widely used in medium and low pressure ball valves.
Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100
Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100
Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100
Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100
Water Industrial Usage Carbon Steel High Platform Flanged Floating Ball Valve GB PN64-100

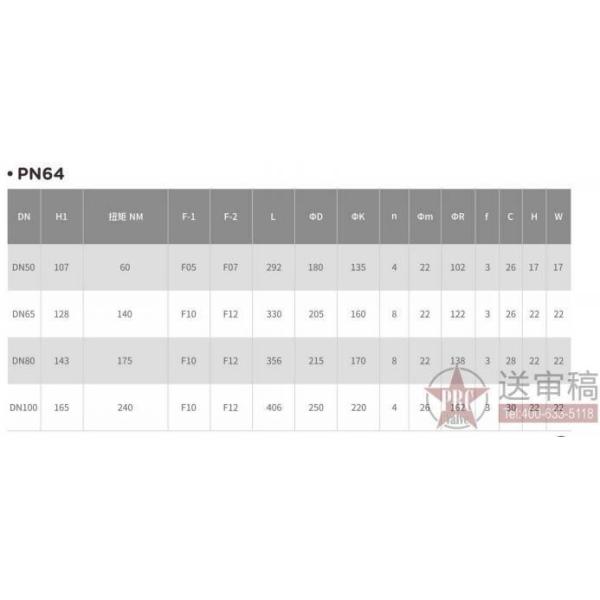

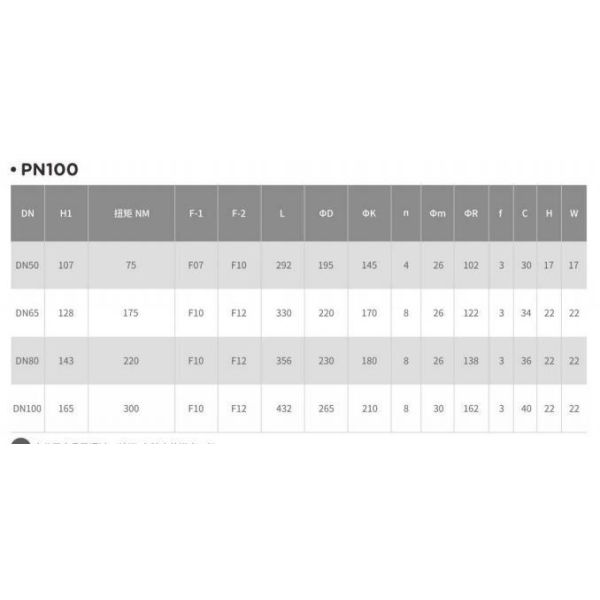

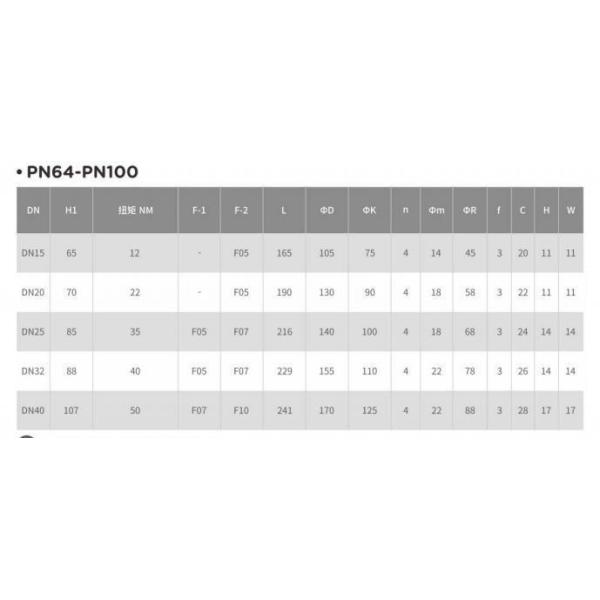

Name GB flange floating ball valve(PN64-100)
Model No. Q41F-64C/100C
Size DN15-DN300
Connection Form Flange
Channel Straight Through Type
Spool material SS304,SS316,SS316L,304L,2205,
2507,A105,F304,F316,316L,304L,F51,F53
Stem material 2Cr13,1Cr13,17-4PH,F304,F316,F304L,F316L,F51,F53
sealing material RPTFE,PTFE,PPL,PI,A105,F304,
Filler material PTFE,RPTFE Flexible graphite()
Application Industrial Usage
Export Markets Global
Origin Wenzhou, Zhejiang Province
Nominal pressure PN64-100
