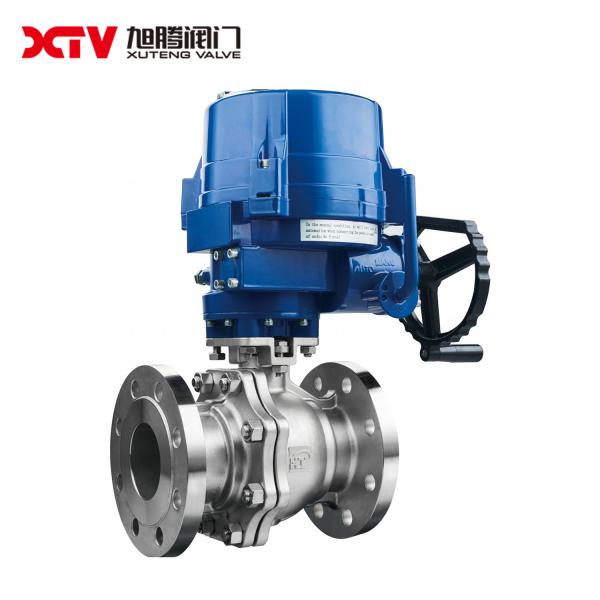

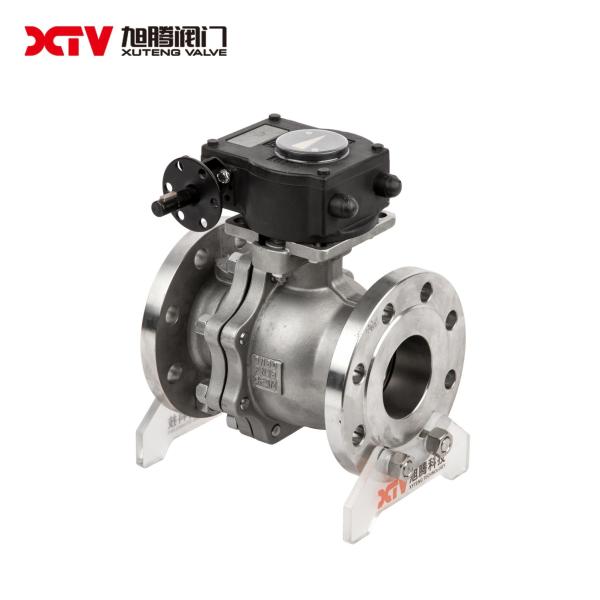

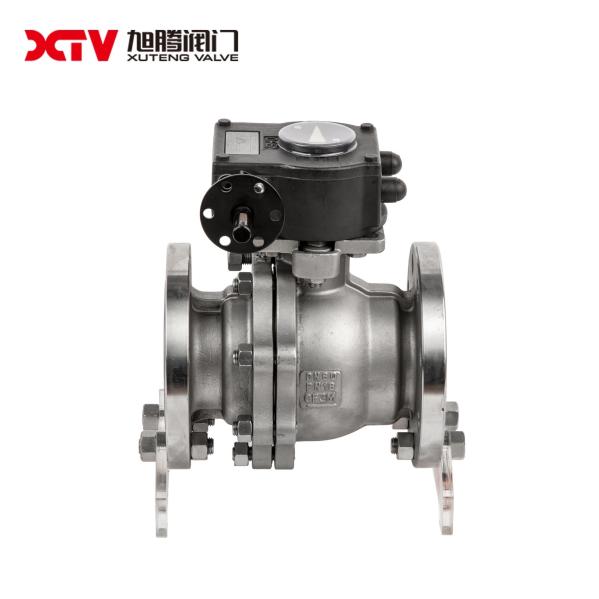

Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Specifications
Model NO. :
Q41F-10/40P
Driving Mode :
Electric, Pneumatic, Manual
Nominal Pressure :
PN1.0-32.0MPa
Channel :
Straight Through Type
Structure :
Floating Ball Valve
Type :
Floating Ball Valve
Function :
Blow-Down Valve, Relief Valve, Bypass-Valve, Industrial Usage, Water Industrial Usage, Househol
Temperature :
High Temperature
Standard :
GB/T12237
Application :
Industrial Usage, Water Industrial Usage, Household Usage
Stem Material :
2Cr13, 1Cr13, 17-4pH, F304,
Spool Material :
SS304, SS316, SS316L, 304L
Sealing Material :
Rptfe, PTFE, Ppl, Pi, A105, F304
Actuator :
Manual, Pneumatic, Electric, Turbine
Transport Package :
Plywood Case
Specification :
1/2"-12" / DN15-DN300
Trademark :
Xuteng
Origin :
Zhejiang China
HS Code :
8481801090
Supply Ability :
10000PCS/Week
Package Size :
30.00cm * 30.00cm * 30.00cm
Package Gross Weight :
3.000kg
Media :
Oil, Water, Gas, Acid
Material :
Stainless Steel
Connection Form :
Flange
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Place of Origin :
Zhejiang China
Certification :
CE/SGS/ISO9001
MOQ :
1
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Price :
negotiate
Description
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
The ball of the ball valve is floating. Under the action of the medium pressure, the ball can produce a certain displacement and press tightly on the sealing surface of the outlet end to ensure the sealing of the outlet end. The floating ball valve has a simple structure and good sealing performance, but the load of the ball bearing the working medium is all transferred to the outlet sealing ring, so it is necessary to consider whether the sealing ring material can withstand the working load of the ball medium. This structure is widely used in medium and low pressure ball valves.
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage

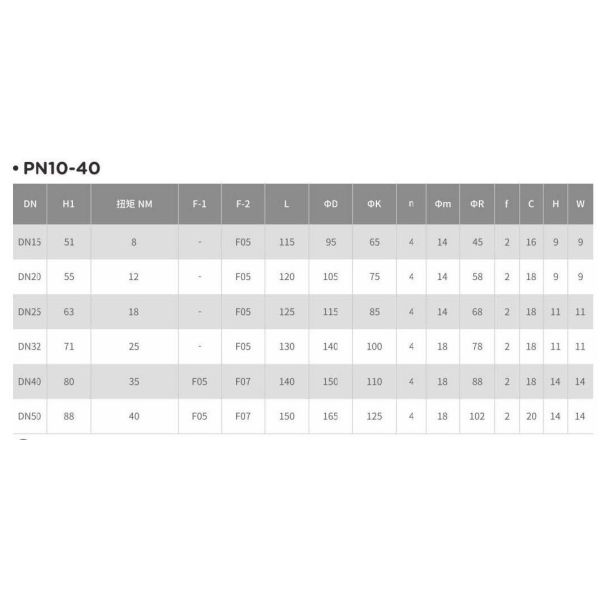

Name DIN Flange Floating Ball Valve(PN10-40)
Model No. Q41F-10/40P
Size DN15-DN300
Connection Form Flange
Channel Straight Through Type
Spool material SS304,SS316,SS316L,304L,2205,
2507,A105,F304,F316,316L,304L,F51,F53
Stem material 2Cr13,1Cr13,17-4PH,F304,F316,F304L,F316L,F51,F53
sealing material RPTFE,PTFE,PPL,PI,A105,F304
Filler material PTFE,RPTFE Flexible graphite
Application Industrial Usage
Export Markets Global
Origin Wenzhou, Zhejiang Province
Nominal pressure PN10-40
Factory drawing:

warehouse
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage

workshop:
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage


Other products:
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage

Certificate:
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage
Stainless Steel High Platform Flanged Floating Ball Valve PN10-40 for Industrial Usage




FAQ

Q : Are you a factory or a trading company?
A : We are a R & D factory.

Q : Which country do you export to?
A : We can export to any country according to buyer's need.

Q : Do you accept the customized order?
A : YES!

Q : What is your main market?
A : Southeast Asia, Middle East, North America, South America, Europe, etc.

Q : Can you give me a discount?
A: As you know, we are the manufacturer, so please trust us that our prices are competitive.
If the quantity is large, we can consider giving you a discount.

Q : If the product has quality problems, what will you do?
A : We will be responsible for all quality problems.


Q :What is your payment term?
A :1.T/T, 30% down payment, balance paid before shipment.
2. Letter of credit.

Q: If the product has quality problems, what will you do?
A: We will be responsible for all quality problems.
