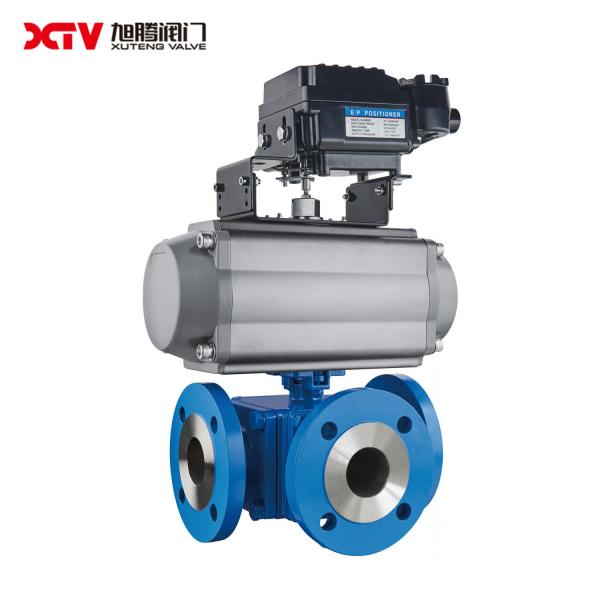

High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
Specifications
Model NO. :
Q45F-300LB
Driving Mode :
Electric,Pneumatic,Manual
Nominal Pressure :
Pn16-Pn25
Channel :
Tee Type
Structure :
Floating Ball Valve
Type :
Floating Ball Valve
Function :
Blow-Down Valve, Relief Valve, Atmospheric Valve, Bypass-Valve
Temperature :
Normal Temperature
Standard :
GB/T12237
Application :
Industrial Usage, Water Industrial Usage, Household Usage, Industrial Usage, Water Industrial Usage, Househol
Transport Package :
Plywood Case
Specification :
CE/SGS/ISO9001
Trademark :
Xuteng
Origin :
China
HS Code :
8481801090
Supply Ability :
10000PCS/Week
Package Size :
100.00cm * 100.00cm * 100.00cm
Package Gross Weight :
70.000kg
Media :
Oil, Water ,Gas,Acid
Material :
Stainless Steel
Connection Form :
Flange
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Place of Origin :
Zhejiang China
Certification :
CE/SGS/ISO9001
MOQ :
1
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Price :
negotiate
Description
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
Three-way ball valve has T type and L type. The T type can connect three orthogonal pipes to each other and cut off the third channel, and play the role of diversion and confluence. The L three-way ball valve type can only connect two pipes that are orthogonal to each other, and cannot keep the third pipe connected to each other at the same time, and only plays the role of distribution.
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
Name 3-Way Ball Valve (T Type)
Model No. Q45F-300LB
Size DN15-DN300
Connection Form Flanged
Channel Straight Through Type
Spool material SS304,SS316,SS316L,304L,2205,
2507,A105,F304,F316,316L,304L,F51,F53
Stem material 2Cr13,1Cr13,17-4PH,F304,F316,F304L,F316L,F51,F53
sealing material RPTFE,PTFE,PPL,PI,A105,F304,
Filler material PTFE,RPTFE Flexible graphite
Application Industrial Usage
Export Markets Global
Origin Wenzhou, Zhejiang Province
Nominal pressure 300LB
Company style

High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure

High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
Company Honor

High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure
High Platform ANSI T Type Square Three-Way Ball Valve 300LB for Pn16-Pn25 Pressure

FAQ

Q : Are you a factory or a trading company?
A : We are a R & D factory.

Q : Which country do you export to?
A : We can export to any country according to buyer's need.

Q : Do you accept the customized order?
A : YES!

Q : What is your main market?
A : Southeast Asia, Middle East, North America, South America, Europe, etc.

Q : Can you give me a discount?
A: As you know, we are the manufacturer, so please trust us that our prices are competitive.
If the quantity is large, we can consider giving you a discount.

Q : If the product has quality problems, what will you do?
A : We will be responsible for all quality problems.


Q :What is your payment term?
A :1.T/T, 30% down payment, balance paid before shipment.
2. Letter of credit.

Q: If the product has quality problems, what will you do?
A: We will be responsible for all quality problems.
