Specifications
Model NO. :
Q41F-10K
Driving Mode :
Electric, Pneumatic, Manual
Nominal Pressure :
PN1.0-32.0MPa
Channel :
Straight Through Type
Structure :
Floating Ball Valve
Type :
Floating Ball Valve
Function :
Blow-Down Valve, Relief Valve, Bypass-Valve
Temperature :
High Temperature
Standard :
JIS, ANSI, DIN, GB/T12237
Application :
Industrial Usage, Water Industrial Usage, Household Usage
Stem Material :
2Cr13, 1Cr13, 17-4pH, F304, F316,
Spool Material :
SS304, SS316, SS316L, 304L,
Sealing Material :
Rptfe, PTFE, Ppl, Pi, A105, F304
CE :
Yes
Transport Package :
Plywood Case
Specification :
1/2"-12" / DN15-DN300
Trademark :
Xuteng
Origin :
Zhejiang China
HS Code :
8481801090
Supply Ability :
10000PCS/Week
Package Size :
30.00cm * 30.00cm * 30.00cm
Package Gross Weight :
2.000kg
Media :
Oil, Water, Gas, Acid
Material :
Carbon Steel
Connection Form :
Flange
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Place of Origin :
Zhejiang China
Certification :
CE/SGS/ISO9001
MOQ :
1
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Price :
negotiate
Description
Straight Through Type JIS Flanged Manual Ball Valve Pump Valve with Pi Sealing Material
The ball of the ball valve is floating. Under the action of the medium pressure, the ball can produce a certain displacement and press tightly on the sealing surface of the outlet end to ensure the sealing of the outlet end. The floating ball valve has a simple structure and good sealing performance, but the load of the ball bearing the working medium is all transferred to the outlet sealing ring, so it is necessary to consider whether the sealing ring material can withstand the working load of the ball medium. This structure is widely used in medium and low pressure ball valves.
Straight Through Type JIS Flanged Manual Ball Valve Pump Valve with Pi Sealing Material
Straight Through Type JIS Flanged Manual Ball Valve Pump Valve with Pi Sealing Material
Straight Through Type JIS Flanged Manual Ball Valve Pump Valve with Pi Sealing Material

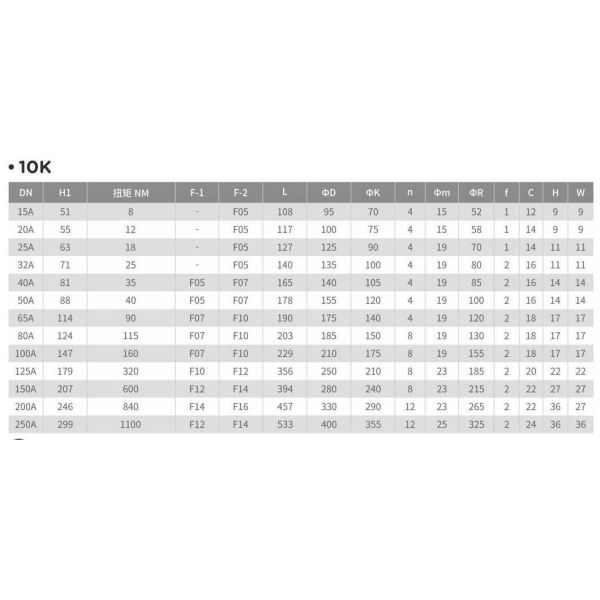

Name Flange Floating Ball Valve(10K)
Model No. Q41F-10K
Size DN15-DN300
Connection Form Flange
Channel Straight Through Type
Spool material SS304,SS316,SS316L,304L,2205,
2507,A105,F304,F316,316L,304L,F51,F53
Stem material 2Cr13,1Cr13,17-4PH,F304,F316,F304L,F316L,F51,F53
sealing material RPTFE,PTFE,PPL,PI,A105,F304
Filler material PTFE,RPTFE Flexible graphite
Application Industrial Usage
Export Markets Global
Origin Wenzhou, Zhejiang Province
Nominal pressure 10K
Company style

Straight Through Type JIS Flanged Manual Ball Valve Pump Valve with Pi Sealing Material
Straight Through Type JIS Flanged Manual Ball Valve Pump Valve with Pi Sealing Material

Straight Through Type JIS Flanged Manual Ball Valve Pump Valve with Pi Sealing Material
Company Honor
Straight Through Type JIS Flanged Manual Ball Valve Pump Valve with Pi Sealing Material
Straight Through Type JIS Flanged Manual Ball Valve Pump Valve with Pi Sealing Material


FAQ

Q : Are you a factory or a trading company?
A : We are a R & D factory.

Q : Which country do you export to?
A : We can export to any country according to buyer's need.

Q : Do you accept the customized order?
A : YES!

Q : What is your main market?
A : Southeast Asia, Middle East, North America, South America, Europe, etc.

Q : Can you give me a discount?
A: As you know, we are the manufacturer, so please trust us that our prices are competitive.
If the quantity is large, we can consider giving you a discount.

Q : If the product has quality problems, what will you do?
A : We will be responsible for all quality problems.


Q :What is your payment term?
A :1.T/T, 30% down payment, balance paid before shipment.
2. Letter of credit.

Q: If the product has quality problems, what will you do?
A: We will be responsible for all quality problems.
