Cnc Hand Dn 100 Medium Frequency Manual Resistance Seam Welder Welding Machine
Cnc Hand Dn 100 Medium Frequency Manual Resistance Seam Welder Welding Machine
Cnc Hand Dn 100 Medium Frequency Manual Resistance Seam Welder Welding Machine
Cnc Hand Dn 100 Medium Frequency Manual Resistance Seam Welder Welding Machine
Cnc Hand Dn 100 Medium Frequency Manual Resistance Seam Welder Welding Machine
Cnc Hand Dn 100 Medium Frequency Manual Resistance Seam Welder Welding Machine
Specifications
Brand Name :
XWH
Model Number :
FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
$6000.00 - $7000.00
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets/month
Delivery Time :
30 Working days
Packaging Details :
Wooden Case
Product name :
Seam Welding Machine
Application :
Resistance Seam Welder
Function :
Seam Welder Machine
Machine type :
Side Seam Welding Machine
Features :
High Efficiency
Welding material :
Alloy Metal Aluminum Stainless Steel
Type :
Resistance Seam Welding Machine
After Warranty Service :
Video technical support, Online support and Spare parts
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training
Description
Cnc Hand Dn 100 Medium Frequency Manual Resistance Seam Welder Welding Machine
Product Description

There are two types of seam welding machines, longitudinal welding and transverse welding, depending on the welding structure. The longitudinal straight seam welding machine can weld the straight seam of the barrel body of circular workpieces, and the length and diameter of the weld seam are limited by the length of the electrode arm and the diameter of the electrode wheel. The transverse circumferential seam rolling welding machine can weld the circumferential seams of the barrel body interface and the sealing welding of the bottom cover, as well as the edge sealing straight seams and circumferential edge sealing of flat workpieces. The circumferential seam welding of circular workpieces is limited by the diameter size of the welding wheel, and the selection process should be based on the minimum diameter of the cylinder. The length of the seam welding for plate edge sealing straight seams is not limited. It can meet various welding needs of users. Randomly equipped with high-performance and highly reliable seam welding microcomputer controllers, it can achieve four welding program processes: compression, welding, maintenance, and rest. Continuous seam welding or pulse seam welding can be freely selected according to the needs of the workpiece.

Technical Parameters

Model Item
Unit
FN-80-H
FN-100-H
FN-160-H
FN-100-E
FN-160-E

Rated power
KVA
80
100
160
100
160

Voltage input
V
380
380
380

380
380

Frequency
Hz
50
50
50
50
50

Max. short circuit current
KA
26
30
40
30
40

Working stroke

mm

100
100

100

100
100

Welding efficiency
m/min
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9

Max. force
N
6000
6000
7800
6000
7800

Max. welding capacity
mm
1.2+1.2
1.5+1.5
2.0+2.0
1.5+1.5
2.0+2.0

Motor Power
W
550
750
750
750
400

Cooling consumption
L/min
8
8
10
8
10
Weight
Kg
380
510
630
530
700

Advantages

1. The seam welding machine has the characteristics of reasonable equipment structure, simple operation, high automation, wide adjustment range, high accuracy, and stable speed.

2. PLC controls the operation of the entire machine, ensuring accurate and reliable control, as well as simple and convenient operation. AC frequency converter speed regulation achieves infinitely adjustable welding speed, convenient and reliable adjustment, large adjustment range, high precision, stable and reliable operation, and convenient setting of various welding process parameters.

3. High precision and high rigidity structural design ensures long-term accuracy and good stability of the equipment. Adopting precision accessories, it has high performance and stability.

4. Mainly suitable for seam welding of carbon steel, stainless steel, and other metal workpieces.

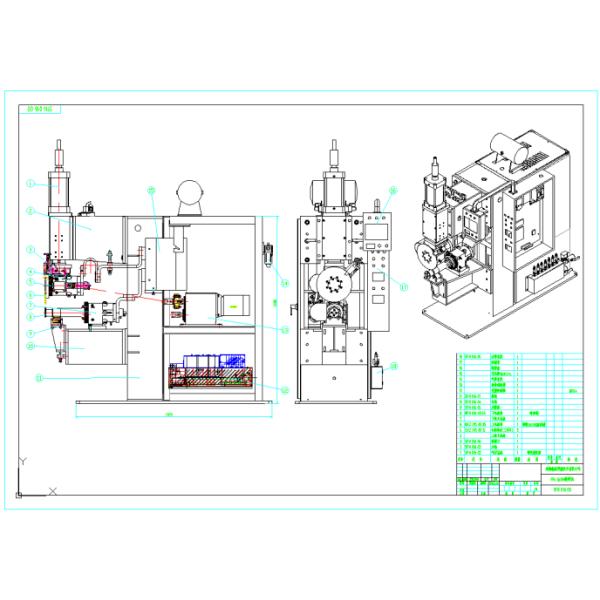

Detail Images

Cnc Hand Dn 100 Medium Frequency Manual Resistance Seam Welder Welding Machine

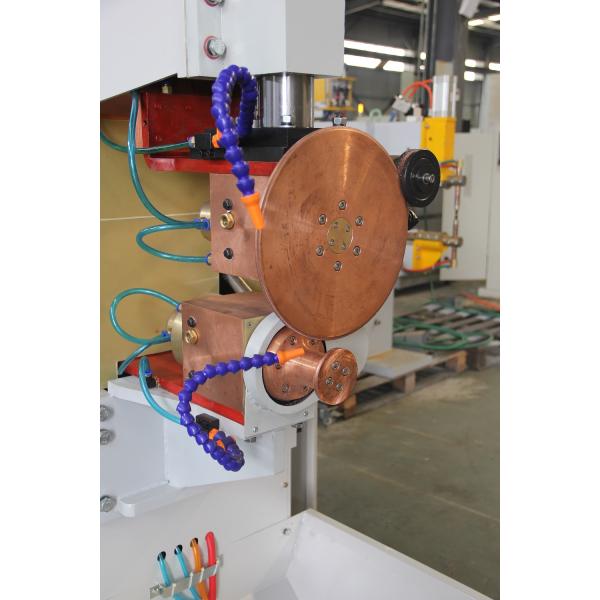

Images

Cnc Hand Dn 100 Medium Frequency Manual Resistance Seam Welder Welding Machine

Application

Cnc Hand Dn 100 Medium Frequency Manual Resistance Seam Welder Welding Machine

Please note: the welding machine can be custom-made according to your requirements.

Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.


8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
