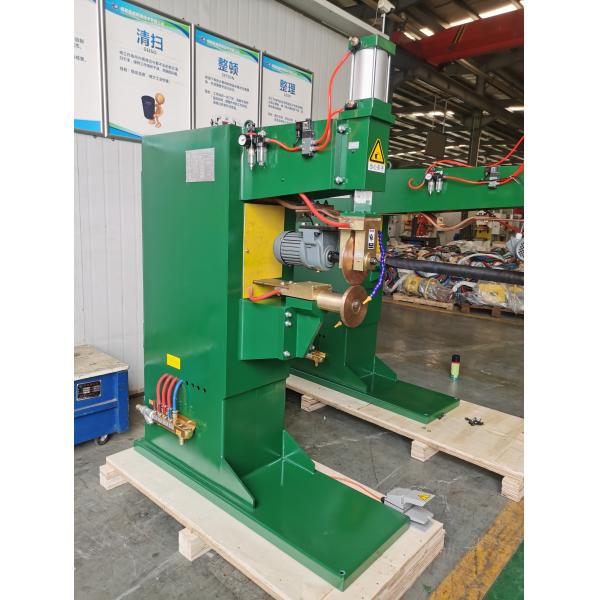

Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum
Specifications
Brand Name :
XWH
Model Number :
FN
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD6000-USD10000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 sets/month
Delivery Time :
15 working days
Packaging Details :
Wooden Case
Product name :
Resistance Seam Welder
Welding Material :
Metal sheet welding
MOQ :
1 Set
Warranty :
1 Year
Packaging Type :
Cartons
Welding Mode :
Roll Welding
Control System :
Touch Screen
Working mode :
Auto Horizontal Seam Welder
Description

Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum

Seam welding machine is a resistance welding machine in which the workpiece is placed between the roller electrode

or between the roller electrode and the strip electrode, continuously or intermittently rolling and intermittent or continuous

application of current, forming a linear weld.

Product Description

Model Item
Unit
FN-80-H
FN-100-H
FN-160-H
FN-100-E
FN-160-E

Rated power
KVA
80
100
160
100
160

Voltage input
V
380
380
380

380
380

Frequency
Hz
50
50
50
50
50

Max. short circuit current
KA
26
30
40
30
40

Working stroke

mm

100
100

100

100
100

Welding efficiency
m/min
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9

Max. force
N
6000
6000
7800
6000
7800

Max. welding capacity
mm
1.2+1.2
1.5+1.5
2.0+2.0
1.5+1.5
2.0+2.0

Motor Power
W
550
750
750
750
400

Cooling consumption
L/min
8
8
10
8
10
Weight
Kg
380
510
630
530
700

Seam welder can be divided into continuous seam welder and stepping seam welder according to the rotation

mode of the roller electrode; According to the relationship between welding seam and electrode arm, it can be

divided into transverse seam welder, longitudinal seam welder and universal seam welder.

Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum

Company Information
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
Certifications
Exhibition Pictures
Service
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on.
Transportation Display
