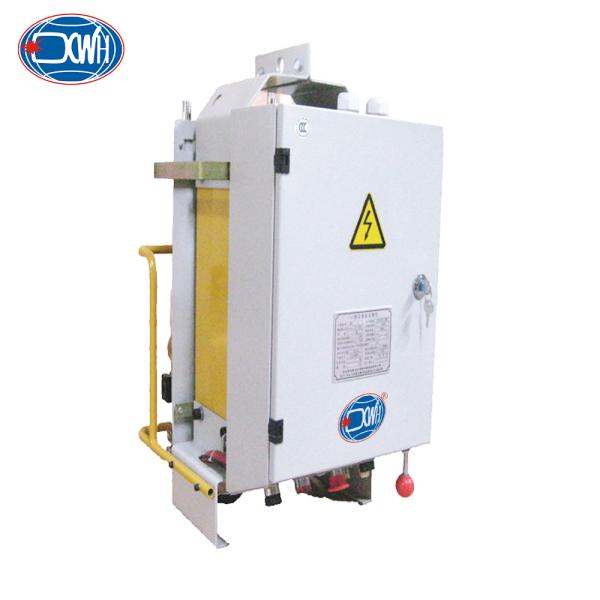

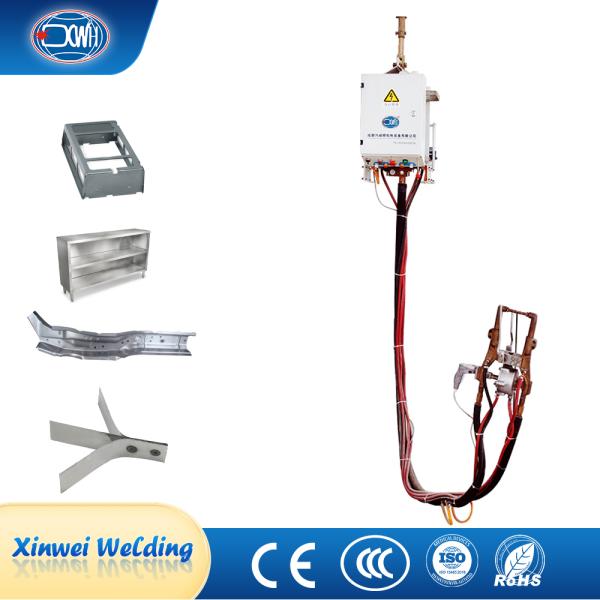

Handheld Automotive 280A Manual Spot Welding Machine Low Noise
Handheld Automotive 280A Manual Spot Welding Machine Low Noise
Handheld Automotive 280A Manual Spot Welding Machine Low Noise
Handheld Automotive 280A Manual Spot Welding Machine Low Noise
Specifications
Brand Name :
XWH
Model Number :
XW
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$5,400.00 - $6,000.00
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets/month
Delivery Time :
15 working days
Packaging Details :
Wooden Case
Product Name :
Handheld Automotive Spot Machine Manual Spot Welding
Power :
customized
Warranty :
1 year
Rated Capacity :
100--200KVA
Voltage :
380v
Frequency :
50HZ/60HZ
Weight :
130--180KGS
Welding Area :
Spot Area
Description

Handheld Automotive Spot Machine Manual Spot Welding

Product Description

Features:

Item No DN3-100 DN3-125 DN3-160 DN3-200
Rated Power (KVA) 100 125 160 200
Rated Input Current (A) 280 330 400 475
Rated Duty Cycle (%) 50
Rated Input Voltage (V) 380
Power Supply Frequency (Hz) 50/60
Secondary Unload Voltage (V) 18-16.5 20-18 21.7-19 24.5-21.7
Max Input Capacity (KVA) 232 278 315 383
Max Output Current (A) 12000 14000 14800 16200
Insulating Grade F
Cooling WaterCconsumption 2.5bar(L/min) 12 12 14 16
Pressure of Cool Water 0.15-0.3 Mpa
Pressure of Compressed Air 0.5-0.6 Mpa
Insulating resistance 500 VDC=500M
Dielectric Intensity 2500, 60s(Primary-secondary)
Weight (kg) 130 145 170 180

Main Characteristics:

1. the high-quality steel sheet of silicon and epoxy resin of vacuum are used in the welding transformer.small,high insulating degree,low noise and reliable.

2. the welder have two kinds :transformer and controller separately two parts;one part of transformer and contrlloer.

3. users can be choose to join single rifle or one pair of rifles and have auxiliary to control according to the needs of craft.
4. voltage transformer two and can receive ordinary form root cable,can connect having the sense cable.
5. with high capacity and efficiency voltage transformer volume small and exquisite,energy-conservation,import.

Company Profie
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in 2003 and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
