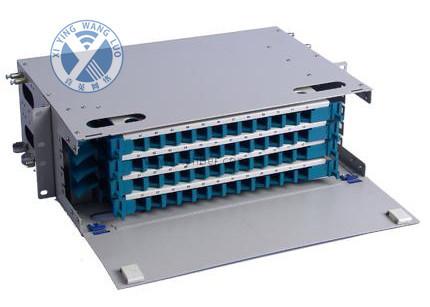

3U Optical Distribution Frame (ODF) Fiber distribution frame with 48core SPCC
3U Optical Distribution Frame (ODF) Fiber distribution frame with 48core SPCC
3U Optical Distribution Frame (ODF) Fiber distribution frame with 48core SPCC
3U Optical Distribution Frame (ODF) Fiber distribution frame with 48core SPCC
Specifications
Brand Name :
XYFiber/OEM
Model Number :
XYODF-3U
Certification :
SGS,RoHS
Place of Origin :
Shanghai,China
MOQ :
1PCS
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
1000PCS/Day
Delivery Time :
3-5 days
Packaging Details :
1PC/Carton
Description
Detailed Product Description

Optic Distribution Frame Fiber Optic Distribution Box , 12port Rak Mounted ODF Unit Box

Quick Detail:

  1. Height: 1U
  2. Max Capacity: 1pcs distribution module tray, 12 core
  3. The Case Body is made by Cold Rolled Steel Sheet with Electrostatic Spraying
  4. Welding & Distribution Module Integration(ODF Unit)
  5. Can be Install with Adaptors FC, SC, ST, LC…
  6. 19” Standard Structure, Rack Mounting

Description:


Fiber optic ODF unit box is used for cable inlet, grounding and fixing and the splicing between the terminal end and pigtail. Users can select unit or ring flange amount according to their practical needs

Feature:

  1. It's suitable for ribbon or non-ribbon optical fiber cable.
  2. Can be used in 19'', 23'' standard distribution frame
  3. Every tray can be clamped with 12FC/SC/ST adaptors.
  4. Applied to various optical fiber distribution frames, distribution cabinets and optical cable cross-connection cabinets.
  5. With splice trays in the box and integrate heat sealing and wiring into one.
  6. Apply double-sided structured optical fiber splice tray to make full use of the two sides of the board.

Application:

  1. FTTX (FTTP, FTTH, FTTN, FTTC)
  2. Passive Optical Networks
  3. Local Area Networks
  4. CATV system
  5. Test Equipment

Specification:

Type

Size

(mm)

 Core Capacity Core Capacity Tray
ODF-C12 480x235x1U 12 12
ODF-C24 480x235x2U 24 12
ODF-C48 480x235x3U 48 12
ODF-C72 480x235x4U 72 12
ODF-96 480x300x6U 96 12

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (FOB Shanghai)
