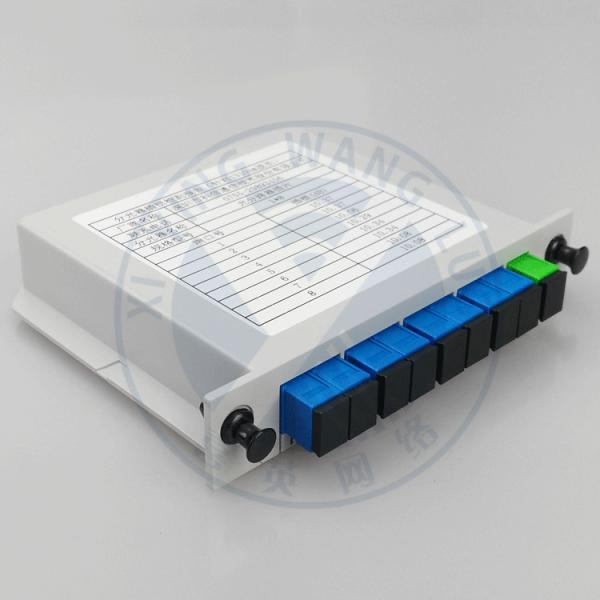

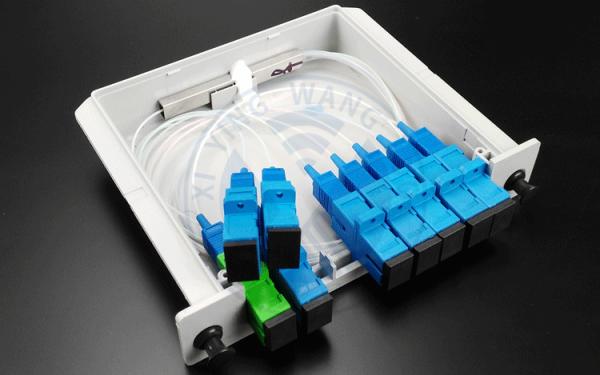

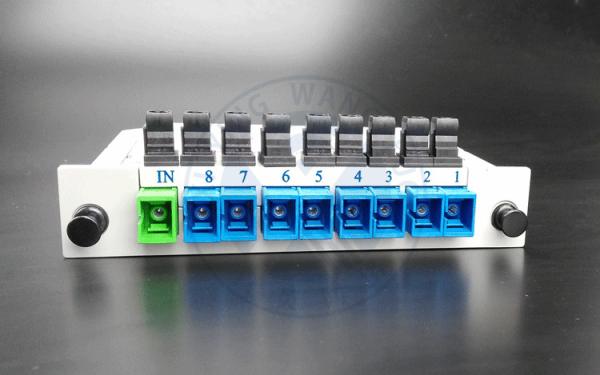

1x8 Cores Fiber Optic Splitter PLC SM Card Insertion Type
1x8 Cores Fiber Optic Splitter PLC SM Card Insertion Type
1x8 Cores Fiber Optic Splitter PLC SM Card Insertion Type
1x8 Cores Fiber Optic Splitter PLC SM Card Insertion Type
1x8 Cores Fiber Optic Splitter PLC SM Card Insertion Type
1x8 Cores Fiber Optic Splitter PLC SM Card Insertion Type
1x8 Cores Fiber Optic Splitter PLC SM Card Insertion Type
1x8 Cores Fiber Optic Splitter PLC SM Card Insertion Type
1x8 Cores Fiber Optic Splitter PLC SM Card Insertion Type
1x8 Cores Fiber Optic Splitter PLC SM Card Insertion Type
Specifications
Brand Name :
XYFiber/OEM
Certification :
SGS, RoHS
Place of Origin :
Shanghai,China
MOQ :
10
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
1000PCS/Day
Delivery Time :
5-8 days
Description

1x8 Cores Fiber Optic Splitter PLC SM

Description:


PLC splitter is based on the Planar Waveguide Technology.
We can provide whole series of 1xN and 2xN splitter products that are tailored for specific applications.

Features:

  1. Wide Operating Wavelength: From 1260nm to 1650nm

  2. High environmental and mechanical stability

  3. Excellent directivity

  4. Good channel-to-channel uniformity

  5. High cost-effectiveness


Applications:

  1. FTTX (FTTB, FTTH, FTTC) Systems
  2. Passive Optical Network (PON)
  3. Fiber optical communication system
  4. Fiber optical sensors
  5. Cable Television (CATV)
  6. Optical Signal Distribution

Specification:


Table 1 – 1×N PLC Splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS

Table 2 – 2×N PLC Splitter

Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS

Notes:

  1. Specified without connectors.
  2. Add an additional 0.15dB loss per connector.

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea
