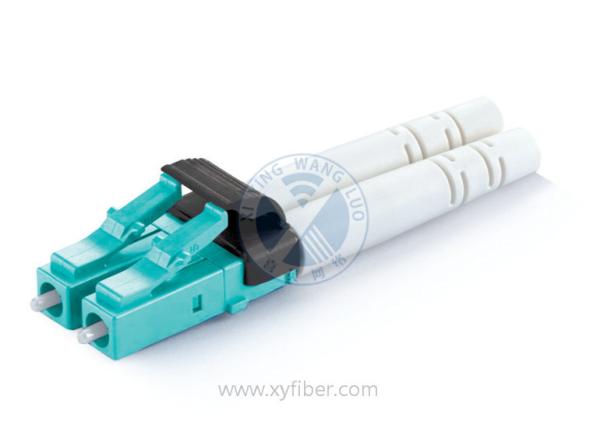

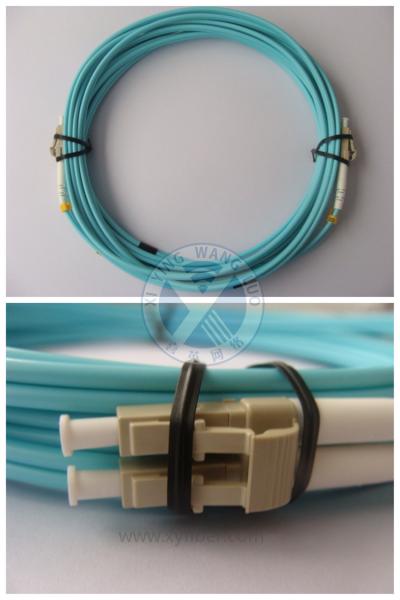

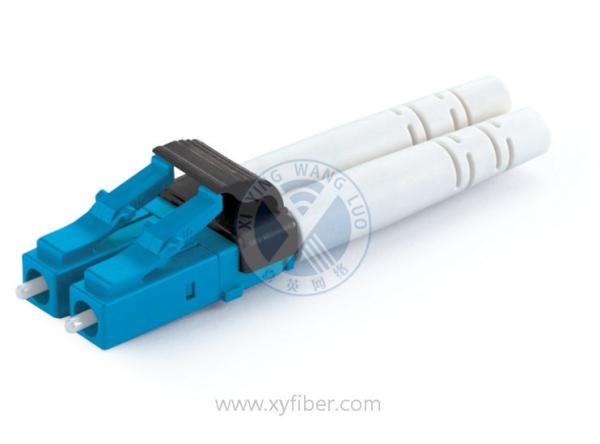

Duplex LC OM3 Fiber Optic Patch Cord For Opitcal Access Network and Data Center
Duplex LC OM3 Fiber Optic Patch Cord For Opitcal Access Network and Data Center
Duplex LC OM3 Fiber Optic Patch Cord For Opitcal Access Network and Data Center
Duplex LC OM3 Fiber Optic Patch Cord For Opitcal Access Network and Data Center
Duplex LC OM3 Fiber Optic Patch Cord For Opitcal Access Network and Data Center
Duplex LC OM3 Fiber Optic Patch Cord For Opitcal Access Network and Data Center
Duplex LC OM3 Fiber Optic Patch Cord For Opitcal Access Network and Data Center
Duplex LC OM3 Fiber Optic Patch Cord For Opitcal Access Network and Data Center
Specifications
Brand Name :
XYFiber/OEM
Certification :
SGS,RoHS
Place of Origin :
Shanghai,China
MOQ :
1PCS
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
1000PCS/Day
Delivery Time :
3-5 days
Packaging Details :
1PC/PE bag
Length :
0.5M-100M
Jacket Material :
PVC/LSZH
Fiber Type :
OM3 150, OM3 300, OM3 500
Connector Color :
Blue/Beige/Aqua
Description

Duplex LC OM3 Fiber Optic Patch Cord For Data Center

Quick Details:

  1. LC, SC, OM3, OM4 fiber patch cord
  2. Boot color: Beige, Red, Black
  3. Mode: SM, MM, OM3, OM4
  4. Cable core: Duplex
  5. Ferrule End-face: PC, UPC
  6. Cable color: Orange, Aqua, Volient
  7. Cable diameter: 0.9mm, 2.0mm, 3.0mm
  8. Cable jacket: PVC, LSZH, OFNR, OFNP

Features:

  1. Guaranteed Zero Defects
  2. Insertion & Return Loss Tested
  3. Serialized & Individual Test Records
  4. Meets Telcordia Endface GeometryRequirements
  5. Custom Configurations Available at No Extra Charge

Applications:

  1. Optical access network
  2. Telecommunication networks
  3. Fiber optic communication networks
  4. CATV, LAN, MAN, WAN, Test &Measurement

Specification:

Item Single Mode Multi Mode
Insertion Loss <= 0.2dB <= 0.3bB
Return Loss PC≥50dB, UPC≥55dB, APC≥60dB
Insert-pull Test 1000 times
Repeatability <=0.1
Tensile strength ≥10KG
Operating Temperature -40°C ~ +85°C
Ceramic Ferrule Specification 125.5um concentricity deviations:<=1um 127um concentricity deviations:<=3um
Suitable Fiber 9/125um 50/125um,62.5/125um

Packing:

One piece per PE bag with stick label (we could add customer's logo in the label.)
