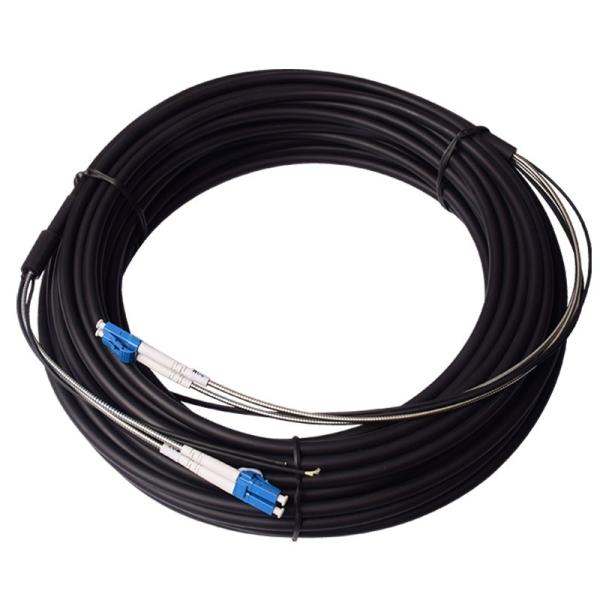

CPRI DLC Fiber Optic Patch Cord , Armoured Fan-out Cable
CPRI DLC Fiber Optic Patch Cord , Armoured Fan-out Cable
Specifications
Brand Name :
XYFiber/OEM
Model Number :
CPRI-DLC
Certification :
SGS,RoHS
Place of Origin :
Shanghai,China
MOQ :
1PCS
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
1000PCS/Day
Delivery Time :
3-5 days
Packaging Details :
1pc/PE bag
Connector Type :
DLC
Fiber Core :
2 core / 4 core
Cable Type :
GYFJH （LSZH）
Cable Diameter :
7.0mm+-0.2mm
Fiber Type :
G.657A, OM2, OM3
Fan-out :
0.03/0.34m, 2.0mm
Length :
5-100meters
Description

Optical Cable Assembly,DLC/PC,DLC/PC,,GYFJH 2A1a(LSZH),100m,7.0mm,2 Cores,0.03m/0.34m,2mm,Outdoor Protected Branch Cable

Description:

Best solution for Fiber To the Antenna; Soft, flexible, water blocked, UV resistant; Customized products accept.

Features:

  • Open bulkhead for easy access to SFP
  • Positive mechanical feedback to operator when fully mated
  • One-hand mating
  • Multimode and single mode
  • Water proof, dust proof and corrosion resistant
  • Expansion to RJ45 and Power possible
  • Plug has tolerance free design, fully free floating on Z-axis
  • No Cable buckling during or after installatoin
  • Cost effective metal die cast bulkhead
  • Field installable version available
  • Duplex LC interface
  • Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open PRH for transceiver replacement)
  • Robust bayonet locking for easy, fast, and secure mating

Applications:

  • 3G 4G base station used
  • Aerospace & Defence
  • Equipment diagnosis
  • FTTA ,FTTP, FTTX,WIMAX
  • BBU, RRU, RRH, LTE

PDLC Outdoor Armoured Fiber Assembly Specifications

Item Data
Insertion Loss ≤0.3dB
Mechanical life 500cycles
Working temperature -40°C~+70°C
Storage temperature -40°C~+70°C
Operating temperature -10°C~+50°C
Protection Level IP67
Tensile Data Tensile between junction and fiber cable≥180N
Out shell inflaming retarding UL94 V-0
Out shell Uvioresistant UL 746C
Authentication Meet with RoHS

GYFJH 7.0mm fiber cable Specification

Item Data
fiber Single mode G.657A1 or G.657A2
Fiber diameter 7.0mm
Material & color for jacket LSZH black
Tension member Aramid fiber
Max. attenuation

≤ 0.4dB/km at 1310nm

≤0.3dB/km at 1550nm
Tensile resistance(short term) 500N(no breakage)
Crush resistance(short term/long term) 1000N/100mm
inflaming retarding IEC 60332-3
Temperature -40~+70°C
Uvioresistant PASS
Authentication Meet with RoHS &UL

Packing:

Cable roll with stick label (we could add customer's logo in the label.)

Shipping:

  • Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  • Airport to Airport: by air
  • Seaport to Seaport: by sea
