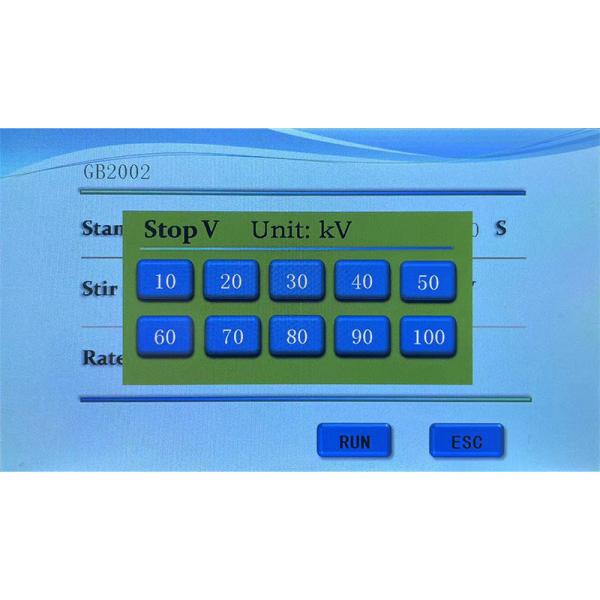

Touch LCD Digital 0-80kv Voltage Breakdown Insulation Oil Dielectric Strength Tester

The XHYY102M insulating oil dielectric strength tester executes the program strictly according to the preset parameters through the single-chip microcomputer. After running, the results can be printed as needed. The instrument has strong anti-interference and simple operation, with only three buttons for boost, stop and step down. It has adjustable boost speed, overpressure, overcurrent, automatic return to zero, automatic stirring after breakdown, automatic locking of breakdown data and accurate values. The oil cup is placed with protective devices such as power supply chain, safe and practical. The instrument is small in size, easy to carry, strong in anti-interference ability, and has a wide range of applications.

Main functions and features
1. The instrument is controlled by a large capacity single chip microcomputer, which is stable and reliable;
2. The instrument is equipped with temperature, humidity and clock display functions, and can be customized for infrared oil temperature measurement.
3. The wide range watchdog circuit is set in the instrument to prevent the crash;
4. A variety of standard options. The instrument program is equipped with GB / t507-1986, GB / t507-2002, dl429.9, iec156 and self programming operation, which can adapt to a variety of choices of different users;
5. The oil cup of the instrument is made of special glass and high polymer materials, which are processed finely to prevent oil leakage and corrosion;
6. The unique high-voltage sampling design of the instrument allows the test value to enter the A / D converter directly, avoids the error caused in the analog circuit, and makes the measurement result more accurate;
7. The instrument has over-current, over-voltage, short-circuit and other protection functions, and has strong anti-interference ability and good electromagnetic compatibility;
8. Can switch between Chinese and English at will to meet the needs of any customer;
9. 232 The data transfer;

• Technical data
  1. Booster capacity 1.5 KVA
  2. Step up speed 0.5kv/s-5.0kv/s (increasing every 0.5) 10 gears optionalError 0.2kv/s
  3. Output voltage 0-80 kV (optional)
  4. Voltage accuracy (2% reading + 2 words)
  5. Power distortion rate < 1%
  6. Electrode gap standard 2.5mm
  7. Test times 6 times (1-9 times optional)
  8. Static release time 900S(0-9999S optional)
  9. Interval rest time 300S(0-999S optional)
  10. Mixing time 15S(0-999Soptional)
  11. Overall dimension: 410mm × 380mm × 370mm

• Conditions of use
  1. Ambient temperature 0-40 ºC
  2. Relative humidity ≤ 85%
  3. Working power AC 220V (1 ± 10%)
  4. Power frequency 50 Hz (1 ± 10%)
  5. Power consumption < 200 W

Packaging: Wooden case filled with foam

Shipping: by Air, Sea, Express, etc.

Shipping time: 7-10days if it's in stock.
