Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester
Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester
Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester
Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester
Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester
Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester
Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester
Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester
Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester
Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester
Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester
Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester
Specifications
Certification :
CE, ISO
Brand Name :
XZH TEST
Model Number :
XHDP-50M
Place of Origin :
Xi'an, Shaanxi, China
MOQ :
1 unit
Payment Terms :
T/T
Supply Ability :
200 units/month
Delivery Time :
5-8 work days
Packaging Details :
Wooden case
Power :
Electricity
Customized :
30kV/50kV/60kV/80kV/90kV
Color :
Black
Transport Package :
Wooden Box Filled with Foam Inside
Trademark :
XZH TEST
HS Code :
9030339000
Customization :
Available
After-sales Service :
Warranty Certificate
Warranty :
12 Months
Description

Product Description

The VLF AC Cable hipot tester adopts digital frequency conversion technology, single-chip microcomputer control, voltage boost, buck, measurement, protection completely automatic. Due to the full electronic, so small size and light weight, the use of large screen color touch display, clear and intuitive, simple operation, display output waveform. The design index conforms to the national standard of "General Technical Conditions of Ultra-low frequency high voltage generator".

Product Features

Product features for this type of VLF hipot tester:

1.The ultra-low frequency with rated voltage less than or equal to 60kV adopts a single link structure (a booster); The ultra-low frequency of more than 60kV adopts a series structure (two booster in series), which greatly reduces the overall weight and enhances the load capacity, and the two booster can be used separately to achieve a multi-purpose machine.
2.Current and voltage data are sampled directly from the high voltage side, so the data is accurate.
3. Intelligent comprehensive protection function: there is no need to set the current and voltage protection value, the instrument can calculate the overvoltage and overcurrent protection value according to the size of the test capacity and the test voltage value, and can also protect the voltage and current mutation, so it can capture the discharge situation. The protection operation time is less than 20ms.
4.150kV high voltage line output, safe and reliable.
5.Because of the closed-loop negative feedback control circuit, the output has no capacity rise effect.

Product Parameters

Rated voltage Carring capacity Application range
30kV(peak) Automatic frequency change:0.1Hz-0.01Hz
On-load capacity:<=10µF
 Used for voltage test of cables and motors within 10KV
40kV(peak) Automatic frequency change:0.1Hz-0.01Hz
On-load capacity:<=10µF
 Used for voltage test of cables and motors within 10KV
50kV(peak) Automatic change frequency: 0.1Hz-0.01Hz
Load capacity: <=6µF
 Used for voltage test of cables and motors within 15KV
60kV(peak) Automatic change frequency: 0.1Hz-0.01Hz
Load capacity: <=5µF
 Used for voltage test of cables and motors within 25KV
80kV(peak) Automatic change frequency: 0.1Hz-0.01Hz
Carrying capacity:
<=6µF(within 50kV),
<=4µF(above 50kV)
 Used for voltage resistance test of cables and motors within 35KV
Output rated voltage
 30kV-80kV
The different specifications are shown in above Table
Output frequency
 Automatic conversion range: 0.1Hz-0.01Hz
Carrying capacity
 See above Table
AC voltage resolution
 0.1kV
Voltage accuracy
 3%
AC current resolution
 0.1mA
AC current accuracy
 3%
Voltage positive and negative peak error ≤ 3%
Voltage waveform distortion ≤ 3%
Conditions of use indoor and outdoor; Temperature: -10ºC∽+40ºC; Humidity: ≤ 85%RH
Input power Frequency 50Hz, voltage 220V±5%(or frequency 60Hz, voltage 110V±5%). If the micro generator is used for power supply, the frequency conversion generator should be used, and the ordinary generator can not be used, because the ordinary generator speed is unstable, which will make the boost voltage abnormal and damage the instrument.


Main structure of ultra-low frequency high voltage power supply(VLF hipot tester)
For the VLF hipot tester with a rated voltage below 50kv, a booster is used, which is called the single-coupled ultra-low frequency, and its structure and components are described in the following figure:

Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester


For VLF hipot tester with rated voltage above 50kv, two boosters are used in series, which is called series ultra-low frequency, and its structure and components are described in the following figure:

Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester

Connection method for ultra-low frequency withstand voltage test

(1) The connection method of ultra-low frequency voltage withstand test when the two-stage booster is connected in series is as follows


Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester


(2)Below 50kV single-link ultra-low frequency voltage test connection mode is as follows:

Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester

Test interface reference
Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester

Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester

Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester

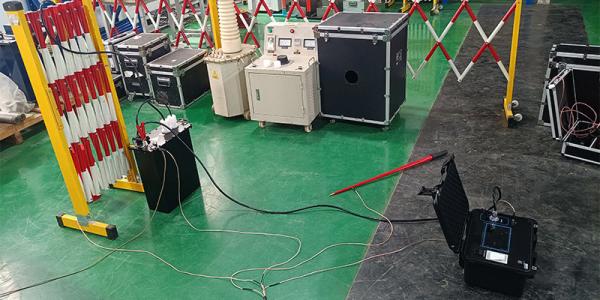

The following photos are the physical pictures of the 50kV VLF hipot tester

Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester
Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester
Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester

Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester
Welcome to contact us for more information and service!

Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester

Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot TesterPortable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester

Portable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot TesterPortable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot TesterPortable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot TesterPortable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot TesterPortable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot TesterPortable High Precision LCD Digital VLF 50kV AC Cable Withstand Voltage Hipot Tester

1. Are you a trading company or a manufacturer?

We are a professional manufacturer with more than 10 years of experience. We can strictly control the quality of parts and finished products.

2. What is the delivery time and inventory?

If our best-selling products are in stock, it will be 5-8 working days for shipment. But for mass production and customized production, the time will take 2-4 weeks.

3. What are your payment terms?

Payment ≤ USD 2000, 100% T/T prepayment. Orders over USD 2000 can be negotiated.

4. How long is your product warranty?

We provide 1 year warranty for the equipment.

5. How do you ensure quality?

The product links include R&D, manufacturing, commissioning and technical support, following strict and scientific management principles. Therefore, we can support strong production and R&D capabilities, and can produce high-quality products at competitive prices to meet customers' high requirements.

6. What support can I get?

We will provide training support, marketing support, technical support and supply chain support. You can contact us for more information.

7. Where is your factory? Can I visit your factory?

We are located in Xi'an, Shaanxi, China. We are close to Xi'an Xianyang International Airport, which is about 2 and half hours by plane from Shanghai and Guangzhou. All customers from all over the world are welcome to visit us.

8. How to become your dealer?

Every company interested in power system instruments can contact us without hesitation, including website letters, emails, telephones, etc. We will contact you quickly according to your company information and cooperation intentions.
