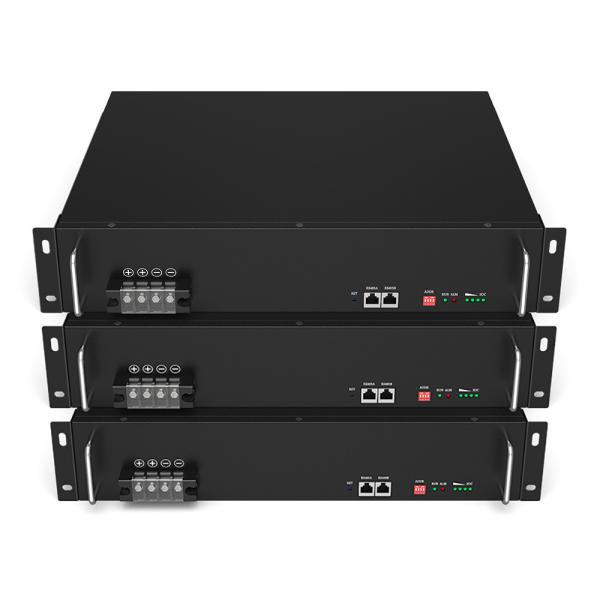

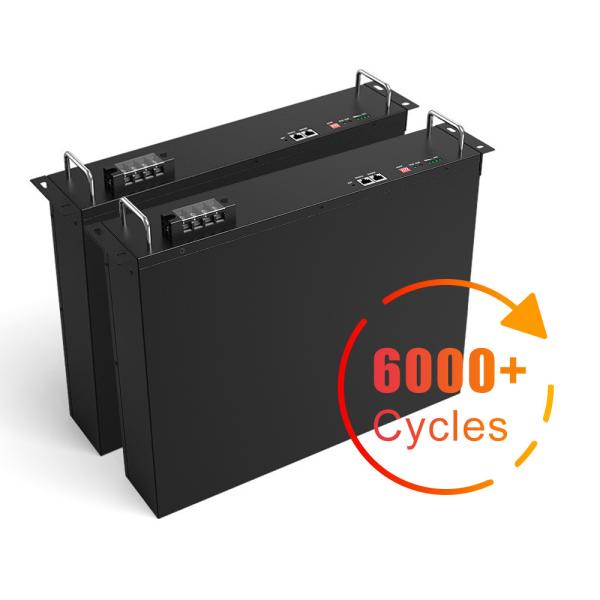

Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Specifications
Brand Name :
YABO
Certification :
CE/IEC/RoHS/UN38.3/FCC
Model Number :
YB-LF51050 48V 50Ah
Place of Origin :
Guangdong, China
Packaging Details :
1. We usually use the carton for packing.
2.As customer requirements packing.
Supply Ability :
100000 Piece/Pieces per Month
Price :
$669.00/pieces 1-49 pieces
Warranty :
5years
Anode Material :
LFP
Chargeable :
Yes
Application :
Solar Energy Storage Systems
Battery Size :
2U
Weight :
Approx. 25Kg
Nominal Voltage :
51.2v
Nominal Capacity :
50Ah
Energy :
2560Wh
Internal Resistance :
≤35mΩ
Cycle Life :
4000-6000Cycles
Max.Charging Voltage :
58.4±0.2
Water Dust Resistance :
IP54
Casing :
Metal
Dimension(L*W*H*TH) :
482.6*393*88mm
Battery type :
Lifepo4/lithium Battery
Port :
Shenzhen/HK
Description
Products Description
Electrical
Characteristics
Nominal Voltage
51.2V
Nominal Capacity
50Ah@0.2C
Energy
2560Wh
Internal Resistance
≤35mΩ
Cycle Life
4000-6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
58.4±0.2
Charging Mode
At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not more than 0.02C
Charging Current
50A
Max.Charging Current
50A
Standard Discharging
Discharging Current
50A
Max. Continuous Current
50A
Max.Pulse Current
60A(10S) Can be set up
Discharging Cut-off Voltage
40.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP54
Structure
Cell & Format
1P16S
Casing
Metal
Max.Dimension (L*W*H)
482.6*393*88mm(2U)
Weight
25kg
Communication Interface
RS485A+RS485B
Carry
handle
Product Details
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Chart
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Our Advantages

◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Does not support series applications, the maximum support 15 batteries parallel.
Application
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
◆ UPS. ◆ Solar &Wind Power System. ◆ Golf Cart. ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting.
Recommend Products
Company Profile
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Certifications
Packaging & Shipping
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
Battery Management System Bms Energy Storage System 48V 50Ah LiFePO4 Battery
FAQ
Q1. Can I have a sample order? A. Yes, we welcome sample order to test and check quality. Q2. What about the lead time? A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity. Q3. Do you have any MOQ limit? A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive? A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed with an order? A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production. Q6. Is it OK to print my logo on the product? A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have? A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc. Q8.How about warranty? A:3 year warranty
