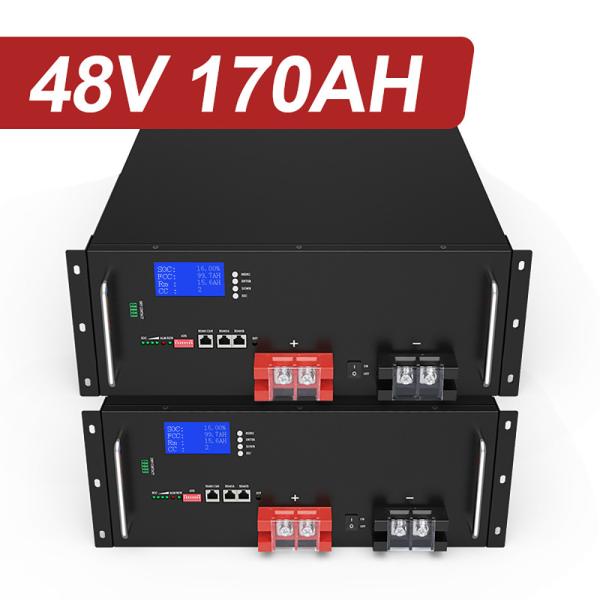

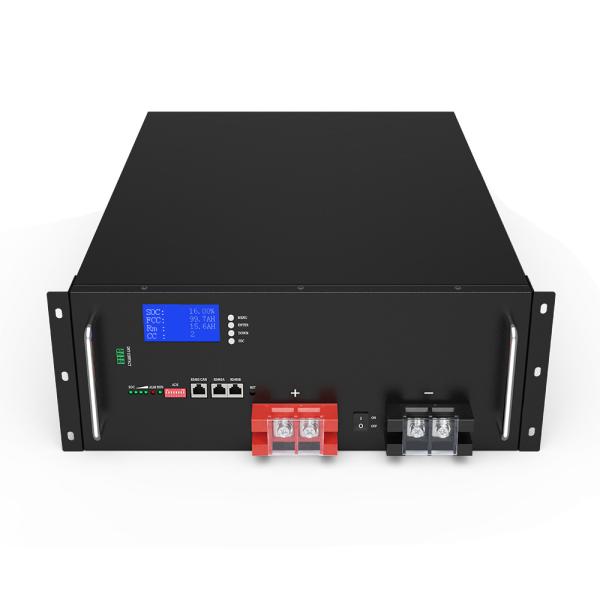

High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
Specifications
Warranty :
5years
Anode Material :
LFP
Chargeable :
Yes
Application :
Solar Energy Storage Systems, Base Station
Battery Size :
4U
Brand Name :
YABO
Certification :
CE/IEC/RoHS/UN38.3/FCC
Model Number :
YB-UT48170L 48V 170Ah
Place of Origin :
Guangdong, China
Weight :
Approx. 62.5Kg
The charging ratio :
150A
The discharge rate :
150A
Product name :
48V 170Ah Lithium Iron Phosphate (LiFePO4) Battery
case :
Sheet metal
Energy :
8704Wh
Internal Resistance :
≤35mΩ
Cycle Life :
4000 Cycles
Self Discharge :
≤3.5% per month at 25℃
Max.Charging Voltage :
58.4±0.2
Discharging Current :
150A
Cell & Format :
16S1P
OEM/ODM :
Accepatable
Packaging Details :
1. We usually use the carton for packing.
2.As customer requirements packing.
Port :
Shenzhen/HK
Supply Ability :
100000 Piece/Pieces per Month
Price :
$600.00 - $1,575.00/pieces
Description
Product Description
Electrical
Characteristics
Nominal Voltage
51.2V
Nominal Capacity
170Ah@0.2C
Energy
8704Wh
Internal Resistance
≤35mΩ
Cycle Life
4000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
58.4±0.2
Charging Mode
At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not more than 0.02C
Charging Current
150A
Max.Charging Current
150A
Standard Discharging
Discharging Current
150A
Max. Continuous Current
150A
Max.Pulse Current
110A(10S) Can be set up
Discharging Cut-off Voltage
40.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP54
Structure
Cell & Format
(16S1P)
Casing
Metal

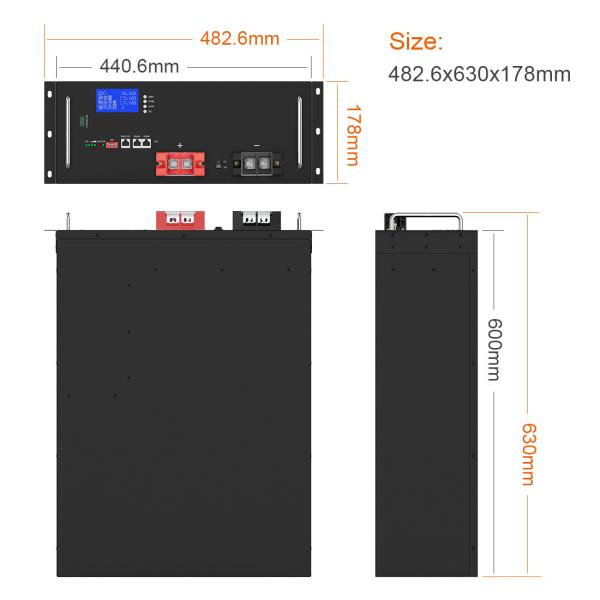

Max.Dimension (L*W*H)
482.6*620*178mm（4U）
Weight
62.5kg
Communication Interface
CAN or RS485
Display
LCD
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
Chart
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
Feature
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ It can be charged with professional photovoltaic system.

◆ Wider temperature range:-20℃~60℃.
◆ Does not support series applications, the maximum support 15 batteries parallel.
Application
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
Recommend Products
Company Profile
High Voltage High Efficiency Solar Energy Storage Lithium Ion Battery Price LiFePO4 Battery 48V 100Ah 170Ah
Certifications
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?
A:1 year warranty
Contact us for more details about Price, Packing, Shipping and Discount.
