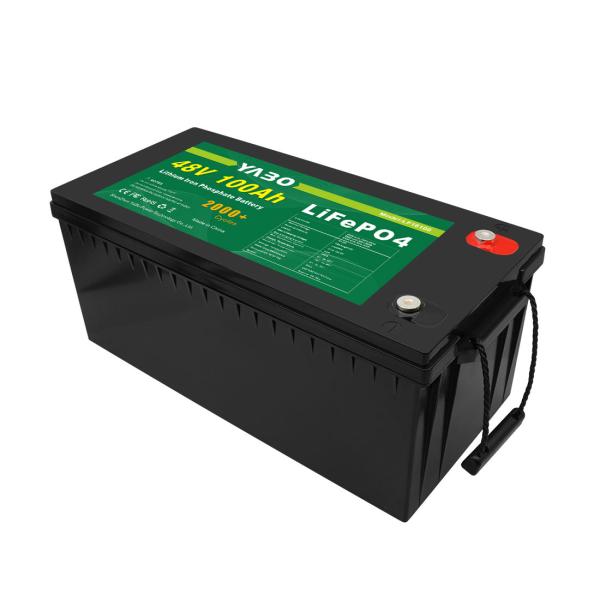

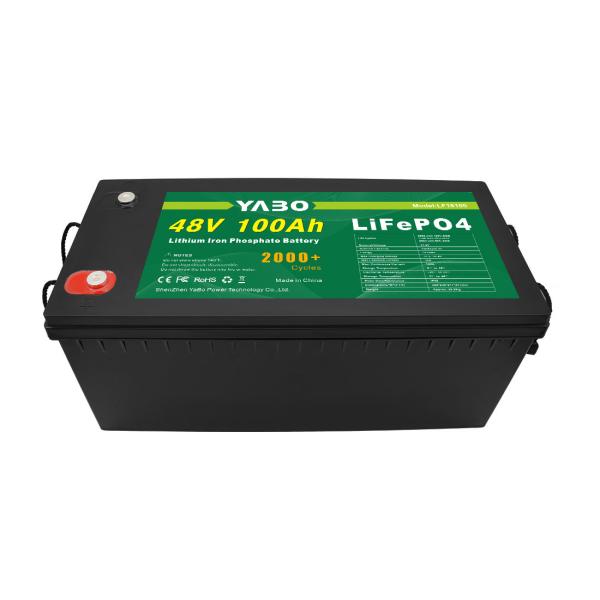

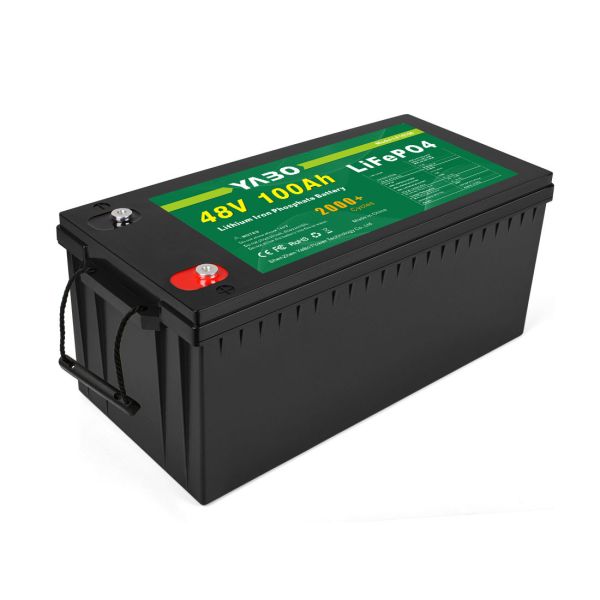

12v 24v 51.2v Lithium Ion 100ah 48v 400ah Lifepo4 Battery Pack For Sale
12v 24v 51.2v Lithium Ion 100ah 48v 400ah Lifepo4 Battery Pack For Sale
12v 24v 51.2v Lithium Ion 100ah 48v 400ah Lifepo4 Battery Pack For Sale
12v 24v 51.2v Lithium Ion 100ah 48v 400ah Lifepo4 Battery Pack For Sale
12v 24v 51.2v Lithium Ion 100ah 48v 400ah Lifepo4 Battery Pack For Sale
12v 24v 51.2v Lithium Ion 100ah 48v 400ah Lifepo4 Battery Pack For Sale
12v 24v 51.2v Lithium Ion 100ah 48v 400ah Lifepo4 Battery Pack For Sale
12v 24v 51.2v Lithium Ion 100ah 48v 400ah Lifepo4 Battery Pack For Sale
Specifications
Brand Name :
YABO
Model Number :
YB-LF16100 48V 100Ah
Certification :
CE、ROHS、FCC、IEC、UN38.3、MSDS
Place of Origin :
China
MOQ :
1PCS
Price :
950-1050 USD/PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000PCS/Month
Delivery Time :
7-15 work days
Packaging Details :
Standard Report Plastic Bag, Carton, Pallet.
Color :
black
Casing :
plastic
Weight :
38.2 Kg
IP level :
IP55
Dimension :
522*238*217 mm
Description

China Factory Rechargeable Energy Storage Deep Cycle 12v 24v 48v 51.2v lithium ion battery lifepo4 100ah

Product Description

Place of Origin Guangdong, China
Brand Name YABO
Model Number YB-LF16100 48V 100Ah
Product Name 51.2v 100Ah LiFePO4 Battery
Cycle Life 2000+ Times
Dimension 522*238*217*217mm
MOQ 1 Pc
Samples Time 3 days
Cell & Format EVE50160115(16S1P)
Casing Plastic
Water Dust Resistance IP55
OEM/ODM Warmly Welcomed
Warranty 3years
Application BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Solar Energy Storage Systems, UPS, Wind Power System,Electric Vehicle , E-bike, E-rickshaw etc,Lighting
Battery Cell EVE50160115
Certification CE, ROHS, FCC, IEC, UN38.3, MSDS
Weight 38.2Kg
The charging current 50A
The discharge current 50A

Electrical
Characteristics
Nominal Voltage
51.2V
Nominal Capacity
100Ah@0.2C
Energy
5120 Wh
Internal Resistance
≤25mΩ
Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
58.4±0.2V
Charging Mode
At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V V until the current was not more than 0.02C
Charging Current
50A
Max.Charging Current
100A
Standard Discharging
Discharging Current
50A
Max. Continuous Current
100A
Max.Pulse Current
100A(<10S)
Discharging Cut-off Voltage
40. V
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP55
Structure
Cell & Format
 EVE50160115(16S1P)
Casing
Plastic
Dimension(L*W*H*TH)
522*238*217*217mm
Package Dimension
Weight
Approx. 38.2Kg
Display panel
LCD
Details Images
12v 24v 51.2v Lithium Ion 100ah 48v 400ah Lifepo4 Battery Pack For Sale12v 24v 51.2v Lithium Ion 100ah 48v 400ah Lifepo4 Battery Pack For Sale
Test Chart
Product Advantage

◆ Using lithium iron phosphate cell, superior safety,thousands of cycles.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ No need of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charger (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallel.
Application
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
Why Choose Us

why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : 20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .

Product Packaging
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time? A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit? A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive? A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order? A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production. production and confirm the design firstly based on our sample.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q8.How about warranty?
A:3 year warranty.
