China Beiben north benz 380hp camion tracteur power star haulage truck head low price for export
China Beiben north benz 380hp camion tracteur power star haulage truck head low price for export
China Beiben north benz 380hp camion tracteur power star haulage truck head low price for export
China Beiben north benz 380hp camion tracteur power star haulage truck head low price for export
Specifications
Brand Name :
Beiben
Model Number :
2638 2642
Certification :
Military quality
Place of Origin :
China
MOQ :
1 pc
Price :
US $40000-$45000
Payment Terms :
L/C, T/T
Supply Ability :
100 pcs
Delivery Time :
35 days
Packaging Details :
wax-coated
Engine :
Weichai Euro 2
Transmission :
Manual
Cab :
With sleeper, ac
Tire :
12.00R20
Fuel tank :
400L aluminum
Description

China Beiben off road haulage truck heavy load tractor truck military quality

6x4 drive

Full steel cab

Popualr in Africa

Dimension 7135×2495×3180(mm)
Approaching angle/Departure angle 26/64°
Overhang(front/rear) 1410/825mm
Wheel base 3450+1450mm
Max speed 99km/h
Curb weight 9200kg
Max towing weight 39600kg
Max loading on fifth wheel, Permitted(kg) 15670kg
Slope climbing capability Max.40%
Engine Model WP10.380E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Displacement 9.726L/Diesel
Stroke 126/130mm
Max. power 280/2200 (kw/rpm)
Max.torque 1600/1800(Nm/rpm)
Fuel tanker capacity 400L
Clutch ∮430, Single dry frictional disc,Hydraulic boosting
Gearbox 12JS200T, mechanism,12 forward gears,2 reverse gear, manual operated, with synchronizer
Gear ratio of gear box 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33
Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 13pcs
Rear Non-free standing stabilization spring, balance suspension system, 13pcs
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system TAS85, whole circulation in ball, hydraulic booster
Frame Fish belly shape, variable width, variable sections
Model ∮50 or ∮90 single direction

Front axle

(Mercedes Technology)

 Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre 12.00R20
Electrical system Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cabin NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C

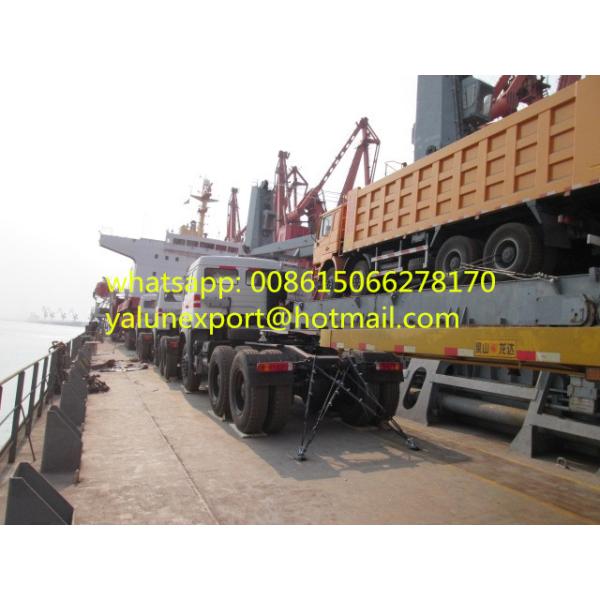

Shipping by bulk or RORO

China Beiben north benz 380hp camion tracteur power star haulage truck head low price for export

Welcome to contact for more information.

Tel/whatsapp: 008615066278170

Email: yalunexport@hotmail.com

24 HOURS AVAILABLE TO PROVIDE YOU THE BEST SERVICE
