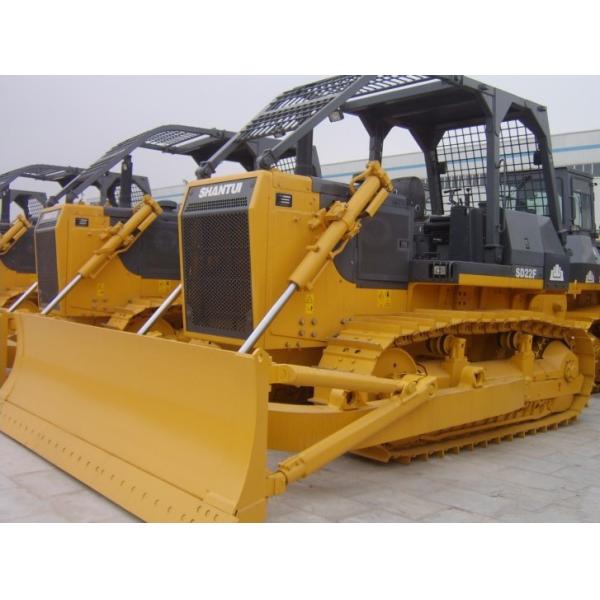

China bulldozer Shantui SD22F log bulldozer forest bulldozer with canopy
China bulldozer Shantui SD22F log bulldozer forest bulldozer with canopy
China bulldozer Shantui SD22F log bulldozer forest bulldozer with canopy
China bulldozer Shantui SD22F log bulldozer forest bulldozer with canopy
China bulldozer Shantui SD22F log bulldozer forest bulldozer with canopy
China bulldozer Shantui SD22F log bulldozer forest bulldozer with canopy
Specifications
Brand Name :
Shantui
Model Number :
SD22F
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1 unit
Price :
USD 10000-125000
Payment Terms :
L/C, T/T
Supply Ability :
50 units per month
Delivery Time :
30 days
Packaging Details :
bulk or RORO shipping packing
Color :
yellow
Engine :
Cummins 220hp
Winch :
equiped
Blade :
angle blade
Description

Shantui log bulldozer SD22F forest type bulldozer with winch for logging

China bulldozer Shantui SD22F log bulldozer forest bulldozer with canopy

Specification of Shantui SD22F,

220 HP SD22
Technical

specifications:

 Blade Type Straight-tilt Angle Semi-U Blade
Min. ground clearance: 405 mm 405 mm 405 mm
Ground pressure: 0.077 MPa 0.077 MPa 0.078 MPa
Min. turning radius: 3.3 m 3.3 m 3.3 m
Gradeability: 30° 30° 30°
Track gauge: 2000 mm 2000 mm 2000 mm
ENGINE Model & type

Cummins NT855-C280S10; In-line,

water cooled 4-cycle,
overhead valve direct injection, turbocharged diesel
Rated power 162 kW
Number of cylinders 6—139.7 x 152.4 mm (bore x stroke)
Piston displacement 14.01 L
Min. fuel consumption 205 g/kW·h
Maximum torque 1030 N·m@1250rpm
POWER
TRANSMISSION
SYSTEM		 Torque converter 3-element, 1 stage, 1 phase
Transmission

Planetary gear, multi-disc clutch,

hydraulically connected, forced lubrication
Main drive

Spiral bevel gear, splash lubrication,

single-stage speed reduction
Steering clutch

Wet, multi-disc, spring loaded,

hydraulically separated,hydraulic control
Steering brake

Wet, floating, direct on-off hydraulic

inter-linking operation
Final drive

2-stage speed reduction of spur gear,

splash lubrication
TRAVELSPEED Gear 1st 2nd 3rd
Forward 0~3.6 km/h 0~6.5 km/h 0~11.2 km/h
Reverse 0~4.3 km/h 0~7.7 km/h 0~13.2 km/h
UNDERCARRIAGE
SYSTEM		 Type

Swing type of sprayed beam,

suspended structure of equalizer bar
Carrier rollers 2 each side
Track rollers 6 each side
Track type Assembled, single-grouser
Width of track shoes 560 mm
Pitch 216 mm
HYDRAULIC
SYSTEM		 Maximum pressure 14 MPa
Pump type Gear pump
Discharge 262 L/min

Bore of working

cylinder × no.

 120 mm × 2
BLADE Blade type Straight-tilt Angle Semi-U-blade
Dozing capacity 6.4 m3 4.7 m3 7.5 m3

Efficiency

(Theoretical value 40 m)

 330 m3/h 245 m3/h 365 m3/h
Blade width 3725 mm 4365 mm 3725 mm
Blade height 1315 mm 1055 mm 1374 mm

Maximum drop

below ground

 538 mm 535 mm 540 mm
Maximum tilt adjustment >735 mm >500 mm >755 mm
Weight of blade 2830 kg 3254 kg 3419 kg
RIPPER(OPTIONAL)

Maximum digging depth

of 3-shank ripper

 666 mm

Maximum lift

above ground

 555 mm
Weight of 3-shank ripper 2495 kg

Maximum digging depth

of single ripper

 695 mm

Maximum lift

above ground

 515 mm
Weight of single ripper 2453 kg

Shantui SD22F forest type bulldozer ready for shipping in port,

China bulldozer Shantui SD22F log bulldozer forest bulldozer with canopy

10 years experience to supply you the best quality machinery with professional service.

Welcome to contact any time. Quotation will be sent in soonest.
