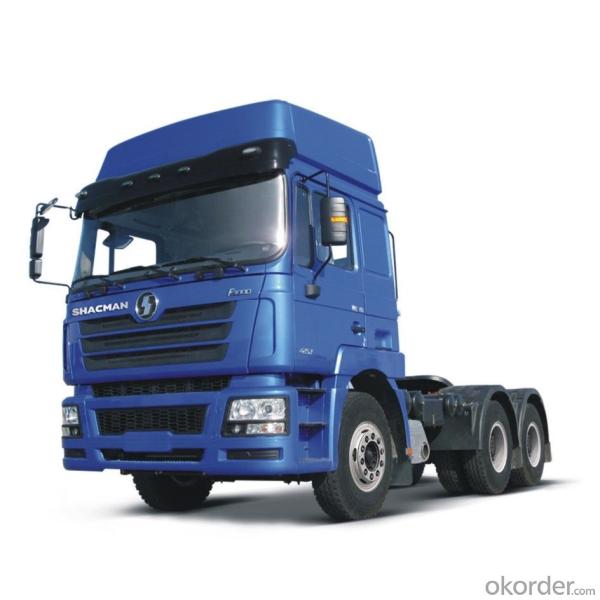

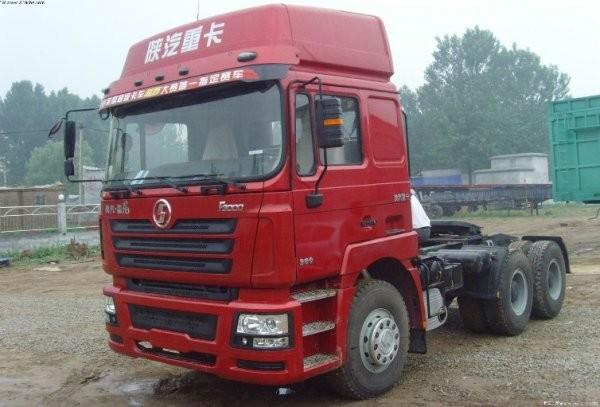

Shacman 10 tires 6x4 tractor truck head for sale 420hp heavy tractor truck
Shacman 10 tires 6x4 tractor truck head for sale 420hp heavy tractor truck
Shacman 10 tires 6x4 tractor truck head for sale 420hp heavy tractor truck
Shacman 10 tires 6x4 tractor truck head for sale 420hp heavy tractor truck
Shacman 10 tires 6x4 tractor truck head for sale 420hp heavy tractor truck
Shacman 10 tires 6x4 tractor truck head for sale 420hp heavy tractor truck
Specifications
Brand Name :
Shacman
Model Number :
420hp F3000
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1 unit
Price :
USD 35000-42000 PER UNIT
Payment Terms :
L/C, T/T
Supply Ability :
100 units per month
Delivery Time :
30 days
Packaging Details :
for bulk and RORO shipping
Color :
white, blue, red
Engine :
Weichai 420hp
Cab :
F3000
Description

China Shacman heavy tractor truck 420hp F3000

Shacman 10 tires 6x4 tractor truck head for sale 420hp heavy tractor truck

Specification of Shacman tractor truck,

Vehicle series Shacman 6x4 Tractor
Cab standard cab with A/C
Engine Model Euro 2:WD615/D12
Power(Ps/rpm) (213-273)/2200 309/2000
Maximum torque(Nm/rpm) (1160-1500)/1100-1600,1820/1100-1500
Displacement(L) 9.726/11.596
Transmission SINOTRUK HW series 10 gears Transmission, main and auxiliary transmission structure, main transmission with double counter shaft ,auxiliary transmission with planetary reduction. WD615.87standardHW15710,WD615.69,WD615.47,D12.38 and D12.42standardHW19710
Clutch Φ430diaphragm spring Clutch,Hydraulic control air assisted. WD615.47,D12.38 and D12.42Engine standard430A,WD615.69standard430B , WD615.87standard430C
Front axle HF7,rated load of 7t, drum-type;heavy load truck with HF9 drum-type, rated load of 9t
Rear axle ST16 double reduction, speed ratio:3.93,4.42,4.8;heavy load truck with HC16 double reduction, speed ratio:4.8, 5.73
Steering gear ZF8098 steering gear, ZF steering oil pump, system pressure 18MPa
Suspension Steer Axle front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer
Drive Axle front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer.
Braking system Service brake dual-circuit air pressure brake
Parking Brake spring storage energy without air
Auxiliary brake Engine exhaust braking;standardABS,Engine EVB is Optional and optional auto clearance adjusting arm
Electric system Voltage 24V
Generator 1540W
Batteries 12V/165Ah,2 pieces
Starter Power 24V,7.5kW
Wheels & Tyres Tyres 315/80R22.5
Optional 12.00R20; 12R22.5
Fuel Tank Capacity 400 Liter 260L auxiliary fuel tank can be added
Weights (kg) Curb weight 9180/9230
Gross Vehicle Weight 25000
Design loading capacity at fifth wheel 15640-15690
Vehicle Dimensions (mm) Overall length x Overall width x Overall height 6800×2496×2958
Wheelbase 3200+1350
Front overhang/Rear overhang 1500/725
Wheel track of front axle 2022
Wheel track of rear axle 1850
Performance Maximum speed(km/h) 92/102
Maximum gradeability(%) 20
Minimum turning diameter(m) 15

Shacman tractor truck cabin interior view,

Shacman 10 tires 6x4 tractor truck head for sale 420hp heavy tractor truck

Famous brand, best quality, professional service. Welcome to contact any time.

Shacman 10 tires 6x4 tractor truck head for sale 420hp heavy tractor truck
