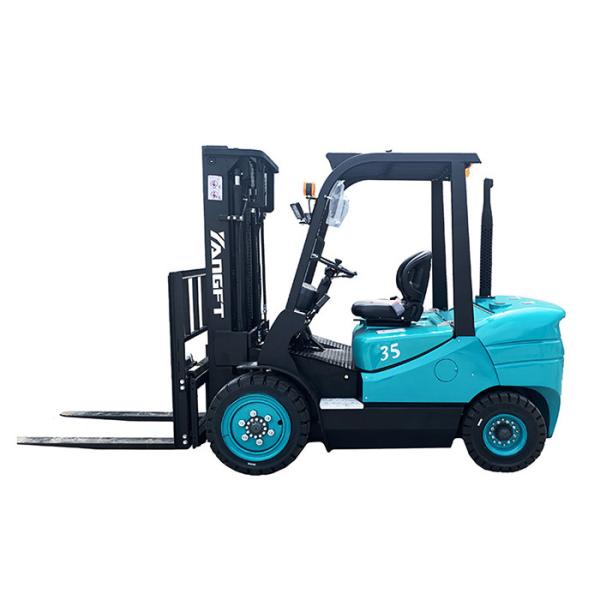

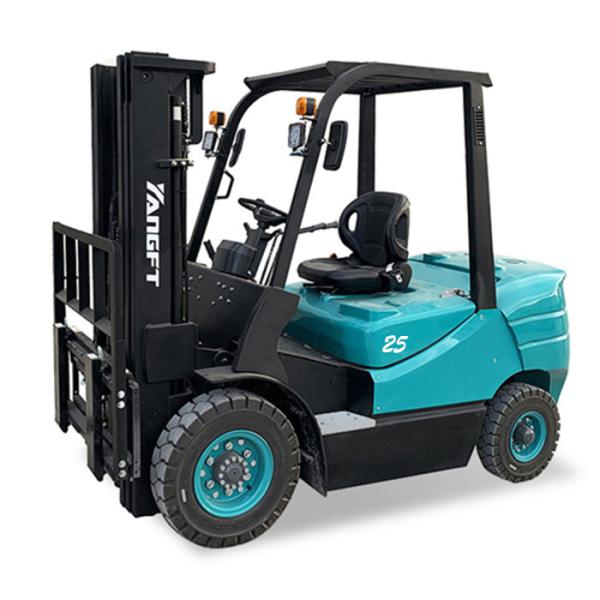

The 4-cylinder diesel forklifts adopt a design of a low center of gravity to guarantee stability in operation. With a small turning radius, they can be used in various confined space.
Material handling in limited space, such as factories and workshops.
Model | |||||||||
Characteristics | Power | Diesel | |||||||
Capacity | kg | 2000 | 2500 | 3000 | 3500 | 4000 | |||
Load Centre | mm | 500 | 500 | 500 | 500 | 500 | |||
Lift Height | h | mm | 3000 | 3000 | 3000 | 3000 | 3000 | ||

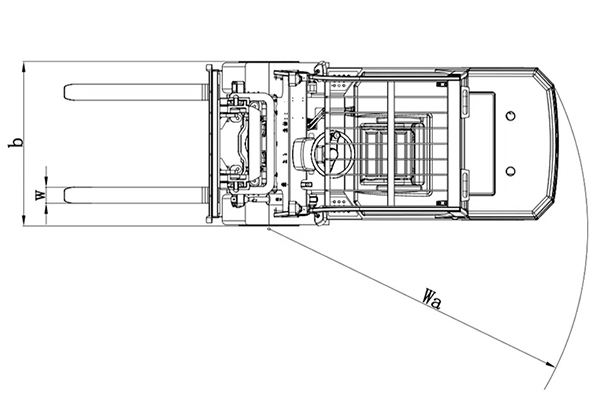

Min. Turning Radius | Wa | mm | 2410 | 2410 | 2410 | 2410 | 2850 | ||
Performance | Travel Speed | Load | km/h | 19 | 19 | 20 | 20 | 19 | |
Lift Speed | Load | mm/s | 500 | 500 | 480 | 480 | 400 | ||

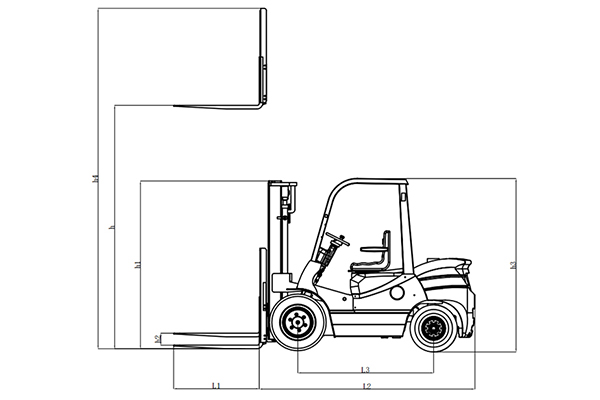

Dimensions | Total Length | With fork | L1+L2 | mm | 3750 | 3750 | 3770 | 3770 | 4055 |
Without fork | L2 | mm | 2680 | 2680 | 2700 | 2700 | 2985 | ||
Total Width | b | mm | 1160 | 1160 | 1225 | 1225 | 1360 | ||
Max. Height | h4 | mm | 4245 | 4245 | 4265 | 4265 | 4315 | ||
Mast Height | h1 | mm | 2085 | 2085 | 2100 | 2100 | 2195 | ||
Chassis | Tyre | Front | 7.00-12-12PR | 7.00-12-12PR | 28x9-15-12PR | 28x9-15-12PR | 250-15-20PR | ||
Rear | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | 7.00-12-12PR | ||||
Wheelbase | L3 | mm | 1700 | 1700 | 1700 | 1700 | 1860 | ||
Service Weight | No load | Kg | 3600 | 3850 | 4300 | 4600 | 5100 | ||
Power | Engine | Model | C240 | C240 | C240 | C240 | 4JG2 | ||
Rated power | 4JG2 | kW/r.p.m | 35.4/2500 | 35.4/2500 | 35.4/2500 | 35.4/2500 | 46.0/2450 | ||
Rated torque | Nm/r.p.m | 138/1800 | 138/1800 | 138/1800 | 138/1800 | 186/1800 | |||
Cylinders | 4 | 4 | 4 | 4 | 4 |
