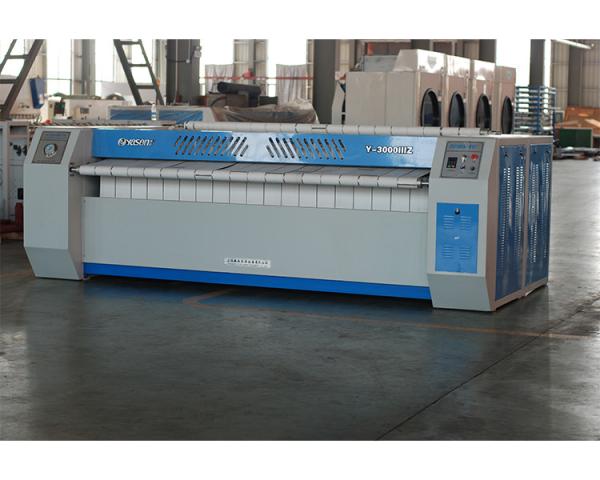

Hotel Laundry And Hospital Stainless Steel Automatic Flatwork Ironer Machine
Hotel Laundry And Hospital Stainless Steel Automatic Flatwork Ironer Machine
Hotel Laundry And Hospital Stainless Steel Automatic Flatwork Ironer Machine
Hotel Laundry And Hospital Stainless Steel Automatic Flatwork Ironer Machine
Hotel Laundry And Hospital Stainless Steel Automatic Flatwork Ironer Machine
Hotel Laundry And Hospital Stainless Steel Automatic Flatwork Ironer Machine
Hotel Laundry And Hospital Stainless Steel Automatic Flatwork Ironer Machine
Hotel Laundry And Hospital Stainless Steel Automatic Flatwork Ironer Machine
Hotel Laundry And Hospital Stainless Steel Automatic Flatwork Ironer Machine
Hotel Laundry And Hospital Stainless Steel Automatic Flatwork Ironer Machine
Hotel Laundry And Hospital Stainless Steel Automatic Flatwork Ironer Machine
Hotel Laundry And Hospital Stainless Steel Automatic Flatwork Ironer Machine
Specifications
Place of Origin :
Shanghai, China
Brand Name :
YASEN
Certification :
CE/OHSAS18001/ISO14001
Packaging Details :
WOODEN PACKAGE
Supply Ability :
100 Set/Sets per Month
Price :
$4,200.00 - $20,000.00/sets
MOQ :
1pc
Product name :
Stainless Steel Flatwork Ironer Machine
Material :
Stainless Steel
Used for :
Hotel Laundry and Hospital
Power :
1.5kw
Capacity :
1.6m,2.5m,2.8m,3m,3.3m
Power Supply :
380/3/50 (V/p/Hz)
Warranty :
1 Year, Warranty
Brand :
YASEN
Description

Hotel Laundry and Hospital Stainless Steel Automatic Flatwork Ironer Machine

The Hotel Laundry and Hospital Stainless Steel Automatic Flatwork Ironer Machine is a highly sophisticated and essential piece of equipment for these specific sectors. Engineered with precision and built using high-quality stainless steel, this machine is designed to meet the rigorous demands of hotel and hospital laundry operations.

In hotels, it helps maintain the high standards of cleanliness and presentation expected by guests, quickly and effectively handling large volumes of sheets, pillowcases, and other linens. In hospitals, it is equally important for ensuring the sterility and freshness of medical linens and uniforms.

The machine's user-friendly interface allows for easy operation and adjustment, minimizing the need for extensive operator training. It also offers enhanced productivity and efficiency, reducing labor costs and turnaround times. With its reliable performance and ability to handle the specific needs of the hotel and hospital sectors, this stainless Steel Automatic Flatwork Ironer Machine is a valuable asset for any laundry facility serving these industries.

Product Parameters

Attributes Y-3000IZ/D Y-3000IIZ/D Y-3000IIIZ Y-3000IVZ Y-3000VZ Y-3000VIZ
Y-3300IZ/D Y-3300IIZ/D Y-3300IIIZ Y-3300IVZ Y-3300VZ Y-3300VIZ
Max Feeding Width (mm) 3000/3300 3000/3300 3000/3300 3000/3300 3000/3300 3000/3300
Roll Diameter (mm) 800 800 800 800 800 800
Rolls Quantity 1 2 3 4 5 6
Ironing Speed (m/min) 0-9 0-15 0-22 0-30 0-35 0-40
Rating v/p/Hz 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50
Motor Power (kw) 1.5 1.5 2.2 1.5*2 2.2*2 2.2*2
Steam Presure (Mpa) 0.3-0.6 0.3-0.6 0.3-0.6 0.3-0.6 0.3-0.6 0.3-0.6
Steam lnlet (lnch) G11/2″ G11/2″ G11/2″ G11/2″ G11/2″ G11/2″
Drain Outlet (lnch) G11/2″ G11/2″ G11/2″ G11/2″ G11/2″ G11/2″
Electric Heating Power (kw) 36 70 / / / /
Steam Consumption (kg/h) 2200 3000 3800 4600 5400 6200
2400 3400 4400 5400 6400 7200
Dimension (L.W.H) (mm) 4080×1568×1302 4080×2508×1302 4080×3448×1302 4080×4388×1302 4080×5328×1302 4080×6268×1302
4380×1568×1302 4380×2508×1302 4380×3448×1302 4380×4388×1302 4380×5328×1302 4380×6268×1302
Attributes Y-8033IVS Y-8033VIS Y-6833IVS Y-6833VIS
Max Feeding Width (mm) 3300 3300 3300 3300
Roll Diameter (mm) 800 800 680 680
Rolls Quantity 4 6 4 6
Ironing Speed (m/min) 10-40 10-60 10-40 10-50
Rating v/p/Hz 380/3/50 380/3/50 380/3/50 380/3/50
Motor Power (kw) 5.15 7.35 4.75 5.25
Steam Presure (Mpa) 0.3-1.0 0.3-1.0 0.3-1.0 0.3-1.0
Steam lnlet (lnch) DN50 DN50 DN50 DN50
Drain Outlet (lnch) DN50 DN50 DN50 DN50
Total weight (kg) 110000 16000 9500 13000
Dimension (L.W.H) (mm) 4640×4106×1946 4640×5742×1946 4640×3480×1658 4640×4860×1658

Attributes GY-13033IZ GY-1303Z3IIZ GY-13033IIIZ GY-8033IIZ GY-8033IIIZ
Max Feeding Width (mm) 3300 3300 3300 3300 3300
Roll Diameter (mm) 1300 1300 1300 800 800
Rolls Quantity 1 2 3 2 3
Ironing Speed (m/min) 3~25 3~40 3~50 3~25 3~40
Steam Presure (Mpa) 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8
Steam lnlet (lnch) G2＂ G2＂ G2＂ G2＂ G2＂
Drain Outlet (lnch) G2＂ G2＂ G2＂ G2＂ G2＂
Steam Consumption (kg/h) 230 460 580 230 460
Exhaust Outlet (mm) Φ200 Φ200 Φ200 Φ200 Φ200
Air Output (mm) 2200 3500 5500 2400 3600
Drive Motor Power (kw) 9.2 9.2X2 9.2X3 3X2 3X3
Conveyor Motor Power (kw) 0.75 1.5 1.5 0.75 0.75
Rating v/p/Hz 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50
Electric Heating Power (kw) 11.5 22.9 33.6 9.8 14.3
Blower Power (kw) 1.5 1.5X2 1.5X3 1.5X2 1.5X3
Total weight (kg) 5500 11000 16000 7800 9800
Dimension (L.W.H) (mm) 4865×2880×2200 4865×4550×2200 4865×6210×2200 4630×3510×1900 4630×4660×1900

Hotel Laundry And Hospital Stainless Steel Automatic Flatwork Ironer Machine
Products Description
Hotel Laundry And Hospital Stainless Steel Automatic Flatwork Ironer Machine
Hotel Laundry And Hospital Stainless Steel Automatic Flatwork Ironer Machine
Hotel Laundry And Hospital Stainless Steel Automatic Flatwork Ironer Machine
Hotel Laundry And Hospital Stainless Steel Automatic Flatwork Ironer Machine

Use:
Y series roller automatic flat-work ironing machine is new product developed by our company with Sino-foreign technology.It is suitable for star-level hotel.restaurant,hospital,rallway,larger washing center,washing-dyeing factory,industry-mining enterprise and so on. It is used to make ironing and from-finishing for flat fabrics,like bedsheet,bedcover and table cloth after washing and extracting.
Short introduction:
Efficiently ironing the fabrics with duplex and no trace,to ensure high-quality ironing effect.
This equipment is made of high-precision 304 stainless steel drum,long service life.

Frequency conversion drives,users can adjust ironing speed depend on different fabrics,improve the ironing efficiency. Programmable computer controlled,multi-lanuage control panel,large screen LCD,man-machine interface,easy to operate.

Using frequency-conversion motor,reducer,chains transmission,run smoothly;equipped buffer,auto adjustment conveying system,no need guide strips,precise convey.
Safe electrical-pneumatic design,can stop machine in emergency,to ensure operators safety.
After sales service:
The whole machine has been guaranteed for 1 years.
Providing lifelong technical support.
Guarantee of spare parts supply.
Engineers available to service machinery overseas.

Installation and Test
(1)Free technical train at factory

(2)Free technical guide through network

(3)On-site service under contract

Warranty:

Main spare parts(except consumable accessories) under ONE YEAR Warranty with defects from manufacturer by free shipping

Product Parameters
Attributes
Y-1600I
Y-2500I
Y-2800I
Y-3000II
Y-3300III
Max Feeding Width(mm)
1600
2500
2800
3000
3300
Rolls Quantity
1
1
1
2
3
Roll Diameter(mm)
800
800
800
800
800
Ironing Speed(m/min)
0-9
0-9
0-9
0-18
0-25
Electric Heating Power(kw)
18
27
36
64
96
Steam Presure(Mpa)
0.3--0.6
0.3--0.6
0.3--0.6
0.3--0.6
0.3--0.6
Steam Consumption(kg/h)
80
120
250
250
320
Steam lnlet(lnch)
G1.5"
G1.5"
G1.5"
G1.5"
G1.5"
Drain Outlet(lnch)
G1.5"
G1.5"
G1.5"
G1.5"
G1.5"
Rated-Voltage(V)
3P/220V/380V
3P/220V/380V
3P/220V/380V
3P/220V/380V
3P/220V/380V
Motor Power(kw)
0.75
0.75
1.5
1.5
2.2
Dimension(L.W.H) (mm)
1600x1300x1270
3500x1300x1270
3840×1300×1270
4040x2410x1420
4340x3350x1420
N.W.(kg)
750
1100
1300
3050
4350
