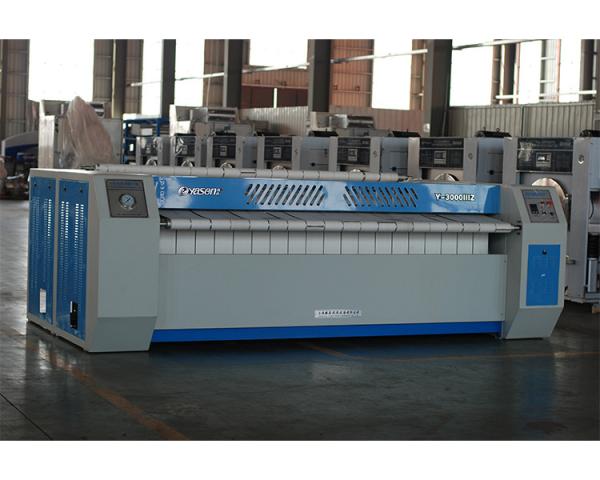

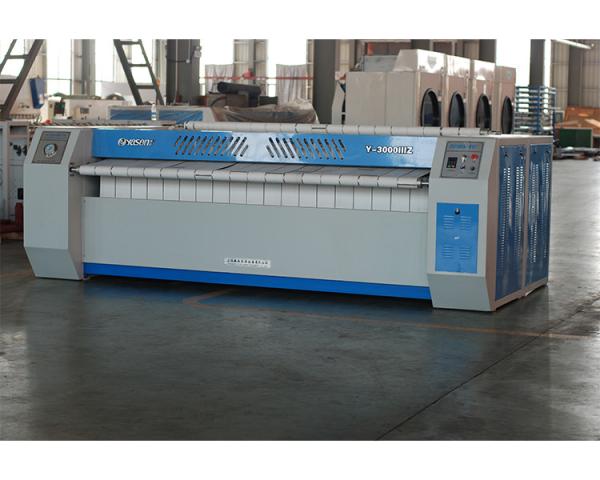

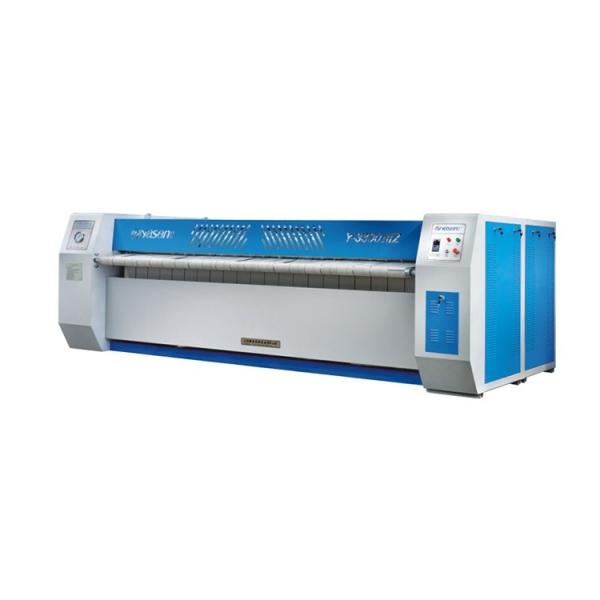

Industrial Laundry Machine 3300kg 3300mm Automatic Flatwork Ironer for Hotel Bedsheets
The Industrial Laundry Machine 3300kg 3300mm Automatic Flatwork Ironer is a state-of-the-art machine specifically designed for the hotel bedsheet industry. With a maximum ironing width of 3300mm and a capacity of 3300kg, this machine is capable of handling large volumes of bedsheets efficiently. The automatic features ensure ease of operation, while the high-quality construction guarantees durability and reliability.
Key Specifications:
Applications
This industrial laundry machine finds extensive use in hotels, resorts, and other hospitality establishments that require the efficient and high-quality ironing of bedsheets. Its large capacity and high ironing speed enable it to keep up with the demands of busy laundry operations.
Advantages
The Industrial Laundry Machine 3300kg 3300mm Automatic Flatwork Ironer is a comprehensive solution for the efficient and high-quality ironing of hotel bedsheets. Its large capacity, automation features, durability, energy efficiency, and versatility make it a valuable addition to any hospitality laundry operation.
Product Parameters
Attributes | Y-1600I | Y-2500I | Y-2800I | Y-3000II | Y-3300III |
Max Feeding Width(mm) | 1600 | 2500 | 2800 | 3000 | 3300 |
Rolls Quantity | 1 | 1 | 1 | 2 | 3 |
Roll Diameter(mm) | 800 | 800 | 800 | 800 | 800 |
Ironing Speed(m/min) | 0-9 | 0-9 | 0-9 | 0-18 | 0-25 |
Electric Heating Power(kw) | 18 | 27 | 36 | 64 | 96 |
Steam Presure(Mpa) | 0.3--0.6 | 0.3--0.6 | 0.3--0.6 | 0.3--0.6 | 0.3--0.6 |
Steam Consumption(kg/h) | 80 | 120 | 250 | 250 | 320 |
Steam lnlet(lnch) | G1.5" | G1.5" | G1.5" | G1.5" | G1.5" |
Drain Outlet(lnch) | G1.5" | G1.5" | G1.5" | G1.5" | G1.5" |
Rated-Voltage(V) | 3P/220V/380V | 3P/220V/380V | 3P/220V/380V | 3P/220V/380V | 3P/220V/380V |
Motor Power(kw) | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 |
Dimension(L.W.H) (mm) | 1600x1300x1270 | 3500x1300x1270 | 3840×1300×1270 | 4040x2410x1420 | 4340x3350x1420 |
N.W.(kg) | 750 | 1100 | 1300 | 3050 | 4350 |
Use:
Y series roller automatic flat-work ironing machine is new product developed by our company with Sino-foreign technology.It is suitable for star-level hotel.restaurant,hospital,rallway,larger washing center,washing-dyeing factory,industry-mining enterprise and so on. It is used to make ironing and from-finishing for flat fabrics,like bedsheet,bedcover and table cloth after washing and extracting.
Short introduction:
Efficiently ironing the fabrics with duplex and no trace,to ensure high-quality ironing effect.
This equipment is made of high-precision 304 stainless steel drum,long service life.
Frequency conversion drives,users can adjust ironing speed depend on different fabrics,improve the ironing efficiency. Programmable computer controlled,multi-lanuage control panel,large screen LCD,man-machine interface,easy to operate.
Using frequency-conversion motor,reducer,chains transmission,run smoothly;equipped buffer,auto adjustment conveying system,no need guide strips,precise convey.
Safe electrical-pneumatic design,can stop machine in emergency,to ensure operators safety.
After sales service:
The whole machine has been guaranteed for 1 years.
Providing lifelong technical support.
Guarantee of spare parts supply.
Engineers available to service machinery overseas.
Installation and Test
(1)Free technical train at factory
(2)Free technical guide through network
(3)On-site service under contract
Warranty:
Main spare parts(except consumable accessories) under ONE YEAR Warranty with defects from manufacturer by free shipping
