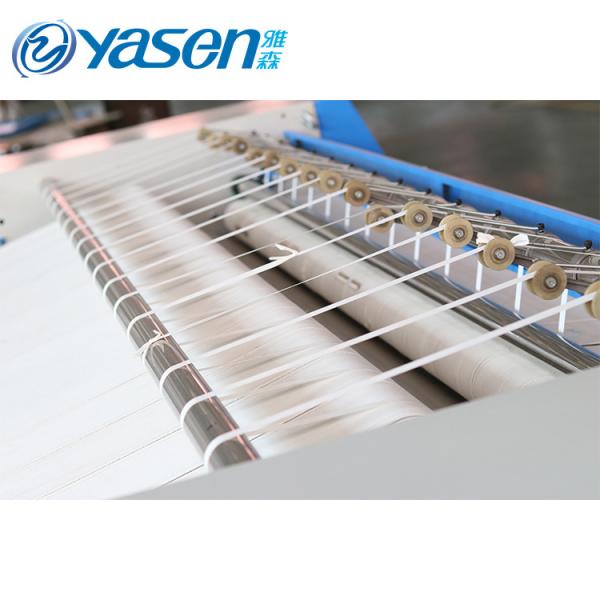

5 Rolls Clean Sheet Automatic Laundry Flatwork Ironer With Steam Heating Function
The 5 rolls clean sheet automatic laundry flatwork ironer with steam heating function is a specialized piece of equipment that is designed to efficiently iron large quantities of flatwork such as sheets, towels, and tablecloths. This equipment is commonly used in commercial laundries, hotels, and hospitals where high-quality laundry services are required.
The ironer is equipped with 5 heated rollers that rotate to iron the laundry. The rollers are coated with a non-stick material to prevent the laundry from sticking to them. The temperature and speed of the rollers can be adjusted to suit different types of laundry.
Application:
The 5 rolls clean sheet automatic laundry flatwork ironer with steam heating function is commonly used in commercial laundries, hotels, and hospitals. It is also used in the hospitality industry for ironing tablecloths, napkins, and other linens.
Advantages:
Product Parameters
Attributes | Y-2500I | Y-3000II | Y-3300III |
Max Feeding Width(mm) | 2500 | 3000 | 3300 |
Rolls Quantity | 1 | 2 | 3 |
Roll Diameter(mm) | 800 | 800 | 800 |
Ironing Speed(m/min) | 0-9 | 0-18 | 0-25 |
Electric Heating Power(kw) | 27 | 64 | 96 |
Steam Presure(Mpa) | 0.3--0.6 | 0.3--0.6 | 0.3--0.6 |
Steam Consumption(kg/h) | 120 | 250 | 320 |
Steam lnlet(lnch) | G1.5" | G1.5" | G1.5" |
Drain Outlet(lnch) | G1.5" | G1.5" | G1.5" |
Gas Consumption(m³/h) | 6m³ | 12m³ | |
Gas lnlet(lnch) | G1.5“ | G1.5“ | |
Rated-Voltage(V) | 220/380/415 | 220/380/415 | 3P/380/50HZ |
Motor Power(kw) | 0.75 | 1.5 | 2.2 |
Dimension(L.W.H) (mm) | 3540x1470x1420 | 4040x2410x1420 | 4340x3350x1420 |
N.W.(kg) | 1500 | 3050 | 4350 |
Industry Trends:
The commercial laundry industry is constantly evolving, with new technologies and innovations being developed to improve the efficiency and quality of laundry services. One trend that has gained popularity in recent years is the use of energy-efficient laundry equipment, such as the 5 rolls clean sheet automatic laundry flatwork ironer with steam heating function. This trend is driven by the need to reduce energy costs and minimize the environmental impact of commercial laundry operations. Another trend is the use of automation and robotics to streamline the laundry process and reduce labor costs. This includes the use of robotic arms to sort and transport laundry, as well as the use of computerized systems to monitor and control the laundry equipment.
Use:
Y series roller automatic flat-work ironing machine is new product developed by our company with Sino-foreign technology.It is suitable for star-level hotel.restaurant,hospital,rallway,larger washing center,washing-dyeing factory,industry-mining enterprise and so on. It is used to make ironing and from-finishing for flat fabrics,like bedsheet,bedcover and table cloth after washing and extracting.
Short introduction:
Efficiently ironing the fabrics with duplex and no trace,to ensure high-quality ironing effect.
This equipment is made of high-precision 304 stainless steel drum,long service life.
Frequency conversion drives,users can adjust ironing speed depend on different fabrics,improve the ironing efficiency. Programmable computer controlled,multi-lanuage control panel,large screen LCD,man-machine interface,easy to operate.
Using frequency-conversion motor,reducer,chains transmission,run smoothly;equipped buffer,auto adjustment conveying system,no need guide strips,precise convey.
Safe electrical-pneumatic design,can stop machine in emergency,to ensure operators safety.
After sales service:
The whole machine has been guaranteed for 1 years.
Providing lifelong technical support.
Guarantee of spare parts supply.
Engineers available to service machinery overseas.
Installation and Test
(1)Free technical train at factory
(2)Free technical guide through network
(3)On-site service under contract
Warranty:
Main spare parts(except consumable accessories) under ONE YEAR Warranty with defects from manufacturer by free shipping
