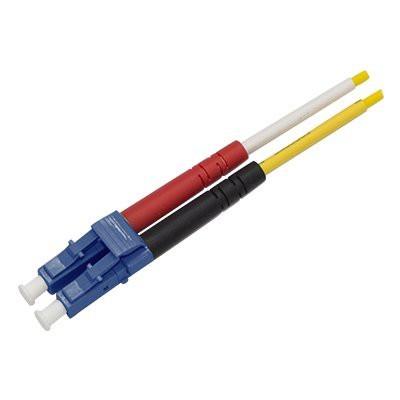

LC Duplex 3.0 Mm Connector For FTTH Patch Cord

The LC LC Connector contains Dust Cap, Outer Housing, Ferrule Assembly, Spring, Inner Frame, Clip, Riveting Ring, Heat Shrink Tube and Boot. This LC connector (Lucent Connector / Little Connector) product is a fiber-optic cable connector that has advantage in high-density connections. An optical fiber connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing.

Without a doubt, LC LC Connector is the first choice of connector for high-performance networks. From the outside, the LC connection looks like a miniature of the SC connector. The LC connector borrows the split sleeve construction and cylindrical ferrule (usually ceramic) from the SC connector. The LC connectors feature a push-latch design to provide tensile stability in system rack installations.

FEATURES

Low insertion Loss and Back reflection loss

RJ-45 style interface

Polarized and color coded (TIA568-A&ISO 11801)

UL-rated plastic housing and boot

Compact, pull-proof design

Behind-the-Wall style short connector

parameter	LC Connector
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.25dB
Return loss	≥50dB	≥55dB	≥60dB	/
operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um

Scope of Application

LC LC connectors are often used in CATV, telecom networks, metro, multimedia, data processing, premises installation, Gigabit Ethernet, etc.
