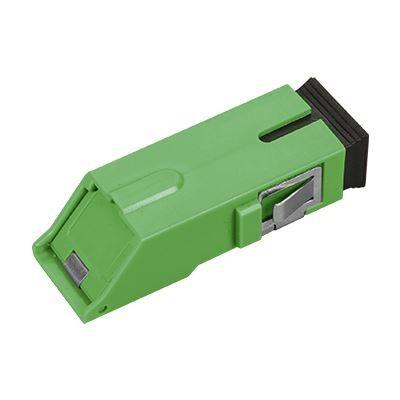

SC Fiber Optical Adapter
An SC fiber optic adapter, also known as an SC fiber optic connector adapter, is a type of connector adapter specifically designed to connect two SC (Subscriber Connector) connectors together. The SC connector is a widely used connector type in fiber optic networks, telecommunications, and data communications.
SC Fiber Optical Adapter are developed to couple and mate two SC connector plugs. Our range of high-quality SC adapters have high precision alignment sleeves for reliability and improved reconnect ability. For single mode and multimode applications, a ceramic sleeve is supplied. The housing is available in different colors with options for flange or flangeless body, metal clips or inbuilt clips. Aprotective cap is provided at each end of the SC Fiber Optical Adapter with the same color as the adapter.
There are a variety of dust caps to choose from, and the color of the dust cap can be customized
We can do SM,MM SC Fiber Optical Adapter ,also Simplex ,duplex adapters .Metal SC adapter and shutter adapter is hot sell in the market .
Product Features
High precision alignment
Good durability and exchangeability
Various Connector Type Available
High temperature stability
Low Insertion Loss and return loss
| parameter | SC Adaptor | |||
| SM | MM | |||
| PC | UPC | APC | PC | |
| Insertion loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Alternationg loss | ≤0.2dB | |||
| Repeatability | ≤0.2dB | |||
| Durability | The change of 1000 interpolation times is less than 0.2dB | |||
| Working temperature | -40~85°C | |||
| Storage temperature | -40~85°C | |||
Quality Assurance
Yingfeng dedicates to provide high quality products to our clients.
Our connector testing items include but not limited to insertion loss, return loss, ferrule end face inspection, 3D interference test and tensile value.
