Specifications
Brand Name :
YF
Model Number :
LC UNIBOOT
Certification :
Rohs
Place of Origin :
CHINA
MOQ :
1pcs
Price :
USD$0.7/pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100-200 million pcs per month
Packaging Details :
in bag, inner boxws ,Carton
Fiber Count :
Duplex
Fiber Mode :
Single Mode
Polish Type :
UPC
Cable Diameter :
5.0mm
Insertion Loss :
≤0.25dB
Return Loss :
≥55dB (UPC)
Durability :
>1000times
Operating Temp :
-40~85°C
Description

Fiber Optic Uniboot Connector LC UPC SM

The Fiber Cable LC Connector is a duplex LC fiber optic connector with a uniboot design that reverses the polarity of the connector without the need for special tools. The connector can be easily engaged or disengaged.

Fiber Cable LC Connector , Duplex SM LC Connector With A Uniboot Design

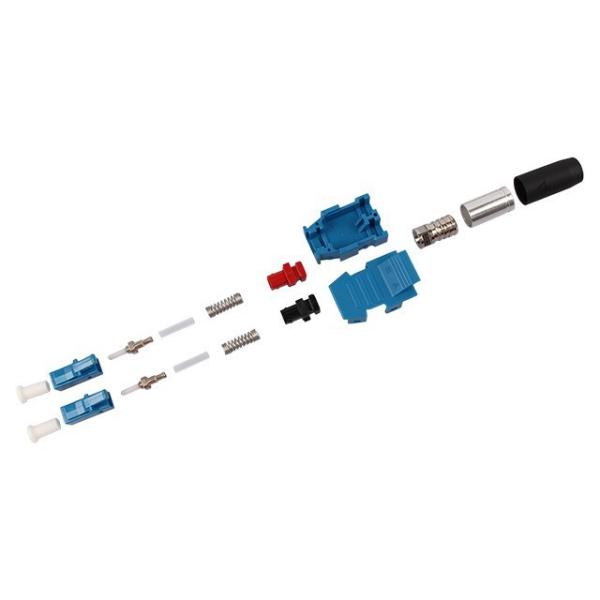

Fiber Cable LC Connector Parts: Dust Cap, Blue Outer Housing, Ferrule Assembly, Spring, Small Transparent Tube, Inner Frame, upper cover below cover, Stopper,Rineting Ring, Black Boot

Features

1.Yingfeng offers a range of connector types including SM, MM and APC

2. In addition to traditional LC connectors, Yingfeng also produces LC mini uniboot connectors, which are smaller in size and ideal for high density applications.

3. We offer a wide range of housing and Boot colors for our connectors, as well as custom colors to meet specific requirements.

4. Our connectors are flame retardant: UL 94V-0, which ensures safety during use.

5. Our products are RoHS compliant to ensure environmental safety during production and use.

6. We offer pre-assembled connectors and connector kits to provide flexibility for different installation needs.

parameter

LC Uniboot Connector

SM

MM

PC

UPC

APC

PC

Insertion loss

≤0.25dB

≤0.25dB

≤0.25dB

≤0.25dB

Return loss

≥50dB

≥55dB

≥60dB

/

operating wavelength

1310nm, 1550nm

850nm, 1300nm

Ferrule Concentricity

≤1um

≤4um

Scope of Application

Fiber Cable LC Connector , Duplex SM LC Connector With A Uniboot Design

Fiber optic cable connectors are commonly used in Cable TV Network,In active device equipment,Optical fiber communication system,Telecommunication network,Local Area Networks (LANs), Wide Area Networks (WANs) etc.

Packaging and Shipping

Fiber Cable LC Connector , Duplex SM LC Connector With A Uniboot Design

We usually use DHL, FEDEX, UPS, EMS, TNT or Sea , these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity

Our Certificate

Fiber Cable LC Connector , Duplex SM LC Connector With A Uniboot Design

Company Show

Zhejiang Yingfeng Optical Communication Co., Ltd. is an enterprise integrating R&D, production, sales and service. Specializing in the manufacture and sale of products in the field of optical fiber communication. We are committed to providing first-class connection solutions, site solutions, data center solutions and professional services for domestic and foreign operators.

Why choose us?

1.Professional manufacturer, 100% tested.

2.Customers solutions in days, not weeks.

3.Warmly services with careful attentions.

4.Can provide your specific inquiry within 24 hours.

5.Save much costs, bring more benefit for customer to expand business.

6.We have been 30 years experience in this field. We are the prefessional supplier that you can trust.

FAQ

1.Is OEM and ODM available?

Yes, OEM and ODM cooperating mode is available.

2. Are you factory or foreign trade company?

We are factory and we do trading too, we will provide you with the most competitive goods and products.

3. I would like to ask you if it's possible to have my logo on the product?

We hope you know that our company support customized logo service, and the logo printing should be up to the logo printing quantity, you could choose the printing method you prefer and we would also like to recommend the one which is more suitable for you.

4.What's the delivery time?

The lead time is 10~15 days after order confirmed.

5.Can we get a lower price? Is there a discount?

Yes, price is not an issue, everything is negotiable based on quantity. We will give you competitive price to ensure win-win situation.
