An 8-core fiber optic terminal box, also known as a fiber termination box or distribution box, is a device used to terminate, manage, and distribute fiber optic connections in indoor or outdoor environments. It provides a centralized point for organizing and protecting fiber optic cables and terminations.
The "8-core" designation indicates that the terminal box is designed to accommodate up to 8 individual fiber cores or strands. Each fiber core can carry a separate optical signal, allowing for multiple connections within the box.
Quick Details
Place of Origin:Zhejiang, China
Color:black
Product name:8 Cores FAT
PLC Splitter:1*8 PLC splitter
Material:PC ABS Terminal Box
Type:Indoor/Outdoor
Application:FTTH,FTTB
Form of sale:OEM/ODM

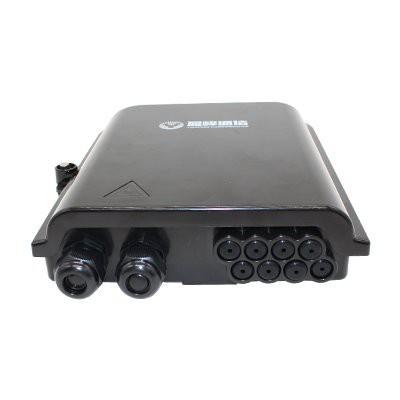

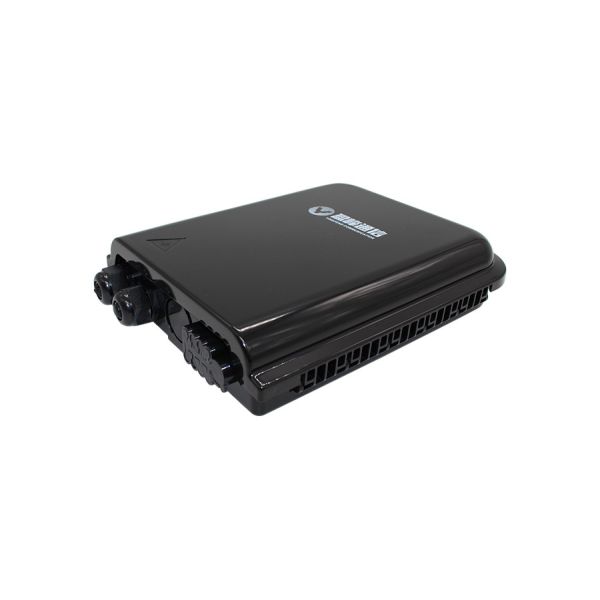

8 Core Fiber Optic Terminal Box

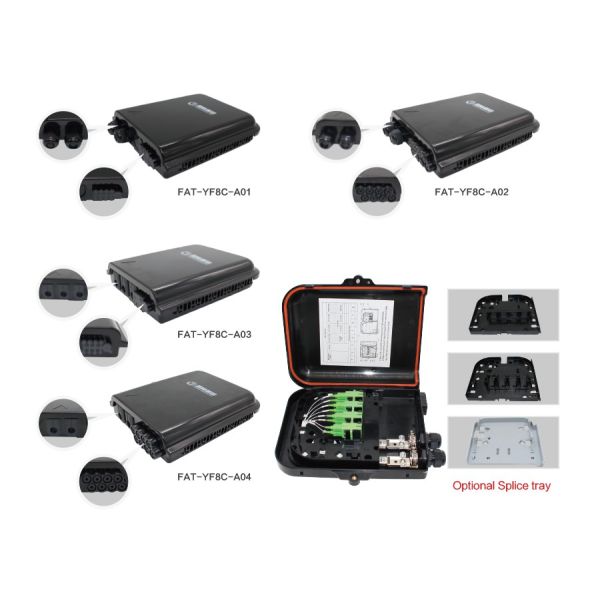

Yingfeng's 8 Core Fiber Optic Terminal Box has 4 types of incoming and outgoing cable ports to choose from, ODM/OEM service is available, you can print your logo on the product, the product is packed in standard cartons, if you have special needs, please contact us.
Features
1. ABS material ensures the body is strong and light.
2. Moisture-proof, water-proof, dust-proof and anti-aging
3. Easy to install: ready for wall mounting - installation kit available
4. Space-saving: double-layer design, easier to install and maintain
5. Protection class up to IP55
6. Can be installed by wall-mounted or pole-mounted installation, indoor and outdoor can be used
7.Splice tray is reversible for easy maintenance and installation.
Specifications
| Dimensions and Capacity | |
| Dimensions (H*W*D) | 243mm*195mm*55mm |
| Color | White |
| Weight | 560 g |
| Adapter Type | SC Simplex/LC Duplex |
| Adapter Capacity | 8 pcs |
| Splitter Type | 1*8 mini type splitter |
| Number of Cable Entrance(s) and Exit(s) | 2/8 |
| Cable inlet caliber | 12mm |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Micro Splitter |
| Working Temperature | -40°C～+65°C |
| Shipping Information | |
| Package Contents | Fiber optics distribution box, 1 unit; Keys for lock, 2 keys; |
| Package Dimensions(W*H*D) | 248mm*205mm*60mm |
| Material | Carton box |
| Weight | 600 g |
