Single Mode PC Fiber Optic Jumper Cable 2.0mm Cable >1000times Durability -40~85.C OperatTemp
The MU 2.0mm Connector is a small connector, approximately half the size of a standard SC-type simplex connector. Ideal for backplane and other high density applications, our MU Simplex connectors are available with zirconia collars in both pre-assembled and unassembled kits.

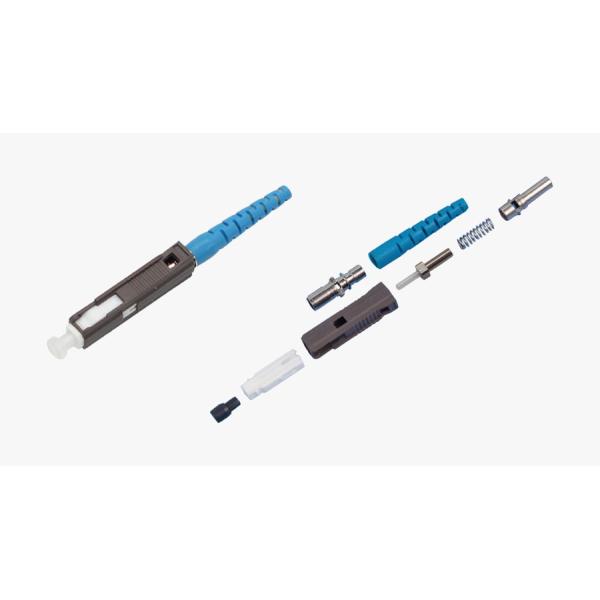

Components of MU 2.0mm Connector:Dust Cap, Outer Housing, Inner Frame, Ferrule Assembly, Spring, Front Stopper, Back Stopper, Blue boot
MU type optical fiber active connector is mainly used to realize non-permanent fixed connection between equipment, equipment and instrument, equipment and optical fiber, and between optical fiber and optical fiber in the system. It is an indispensable passive component in optical fiber communication system. The MU connector is a plug-in connector that consists of a small single-pin plug and adapter. It features a rectangular structure and an elastic clip locking mechanism. The typical outer diameter of the pin is 1.25 mm. The centering device is realized by a rigid inner hole or an elastic sleeve. MU type connector plugs are available in single core and double core.
Main Features
Good quality and high performance, optical fiber parts, outer skin, ferrule adopts green environmental protection material, low
insertion loss, good repeatability, strong tensile strength, small insertion loss, large return loss and stable transmission. Good
interchangeability and repeatability.
| parameter | MU 2.0mm Connector | |||
| SM | MM | |||
| PC | UPC | APC | PC | |
| Insertion loss | ≤0.25dB | ≤0.25dB | ≤0.25dB | ≤0.25dB |
| Return loss | ≥50dB | ≥55dB | ≥60dB | / |
| operating wavelength | 1310nm, 1550nm | 850nm, 1300nm | ||
| Ferrule Concentricity | ≤1um | ≤4um | ||
Application
Because of its small size, the MU 2.0mm Connector is typically used in applications that require high-density connectivity, such as data centers, local area networks, and wide area networks. It can also be used in fiber optic sensors, medical devices, industrial automation, etc.
Company Show
YingFeng design, develop molds and produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping.
Why choose us
Quality Assurance
Yingfeng dedicates to provide high quality products to our clients.
Our connector testing items include but not limited to insertion loss, return loss, ferrule end face inspection, 3D interference test and tensile value.
Fast Delivery
Yingfeng's production scale allows us to provide product to clients in relatively short time. If the order quantity is small (less than 10,000 pieces), our normal delivery time would be within 7 days after placing order.
Our Certificate
Frequently Asked Questions:
1. How can I check the lead time for the product?
......If the product is sufficient in the warehouse, we can ship within 3 days on business days.
2. Do you provide after-sales service?
......Of course. If you have any questions after receiving the goods, please contact us in time, we will help you deal with it as soon as possible
3.Do you provide customized services?
......Yes, we provide customized services, According to customer requirements and description
4.How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty
period, accessories will continue to be provided and will be charged at cost.
