Stepper Motor Small Gantry Plasma Carbon Steel Cutting Machine For Military Industry
Stepper Motor Small Gantry Plasma Carbon Steel Cutting Machine For Military Industry
Stepper Motor Small Gantry Plasma Carbon Steel Cutting Machine For Military Industry
Stepper Motor Small Gantry Plasma Carbon Steel Cutting Machine For Military Industry
Stepper Motor Small Gantry Plasma Carbon Steel Cutting Machine For Military Industry
Stepper Motor Small Gantry Plasma Carbon Steel Cutting Machine For Military Industry
Stepper Motor Small Gantry Plasma Carbon Steel Cutting Machine For Military Industry
Stepper Motor Small Gantry Plasma Carbon Steel Cutting Machine For Military Industry
Specifications
Brand Name :
Yahong
Model Number :
YH1640
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T , L/C , Western Union, MoneyGram
Supply Ability :
200 pcs per month
Delivery Time :
5-7 days after received your payment

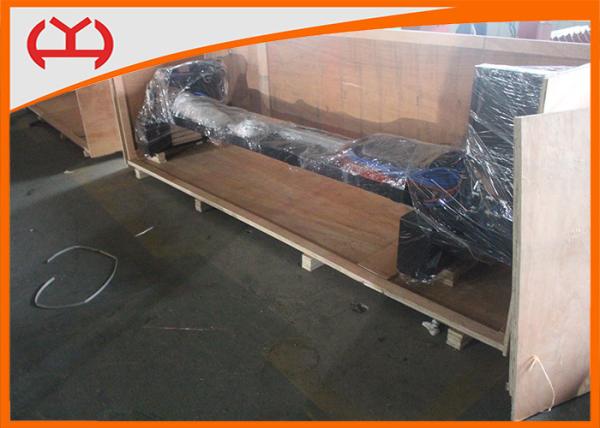

Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Small Gantry CNC Cutting Machine
Cutting Material :
Stainless steel , aluminum , iron , carbon steel
LCD Display Dimension :
7 inches
Effective Cutting size :
1600*4000mm
Cutting Speed :
0 - 8000 mm/min
Motor :
Stepper Motor
Control System :
Fastcam
Cutting Mode :
Plasma / Flame
Height Control :
Arc voltage height control
Feature :
Little noise
Description

Stepper Motor Small Gantry Plasma Carbon Steel Cutting Machine For Military Industry

Description:

Yahong CNC gantry type cutting machine is specially designed for metal plate cutting, it is characterized of high automation and efficiency.This CNC steel plate cutter is gantry type structure with bilateral driving way.The effective cutting size can be customized upon requirement which depend on plate size.

It can match with one or multiple plasma and flame(gas/oxygen) cutting torch.

Feature:

1. The high precision originate from Feimate power(optional) and high pressure adjustable arc.
2. Perfect design and good looking cutting surface make it the best suitable choice for all kinds of thick plates.

3. Reasonable slopes leakage of material design, make the finished work piece and scrap material slopes fell to both sides of the rack feet, safe and convenient.

Specifications:

Technical Parameters for I Light Gantry CNC Cutting Machine

1 Cutting shape Steel plate with any plane shapes fromed by straight lines and arcs
2 LCD Display Dimension 7.0 Inches
3 Effective Cutting Size 1600*4000mm
4 Railway Size 2000*5000mm
5 Plasma Cutting Thickness 0.5--20mm ( Depends on plasma power source capacity)
6 Flame Cutting Thickness 5--200mm
7 Lifting body 1 lifting body standard
8 Cutting Speed 0-8000mm per minute
9 Height Control Electric Height Control+Arc Voltage Height Control(THC)
10 Drive Mode Bilateral drive
11 Cutting Mode flame and plasma
12 Ignition device Auto ignition device
13 File transmission USB transmission
14 Gas Pressure Max. 0.1Mpa
15 Oxygen Pressure Max.0.7Mpa
16 Cutting Gas

Flame: Oxygen+ Acetylene/ Propane/ Coal gas

Plasma :air
17 Software FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.)
18 Cutting accuracy ±0.5mm
19 Power Supply Voltage/Frequency 220V 50HZ / 60HZ
20 Rated Power Supply 1500W
21 Working Temperature -10℃-60℃, Relative Humidity, 0-95%.

Competitive Advantage:

1. graphic display function

2. English interface and other 8 languages

3. Excellent graph library ,48 graphic

4. Steel plate correction function

5. Kerf can be automatically compensated

6. Cutting can continue when power fails

7. Continuous return can be done

8. Positioning and cutting can be done randomly

9. Off-line cutting can be done

10. Online upgrading function

Applicable Material:

stainless steel plate, iron plate, galvanized plate, titanium plate, aluminum and other metal plates.

Guarantee & Aftersales Service:

1.Guarantee for one year

2.24-hour technical support by email or calling

3.User-friendly English manual for machine using and maintaining

4.Free technician training for large customers.

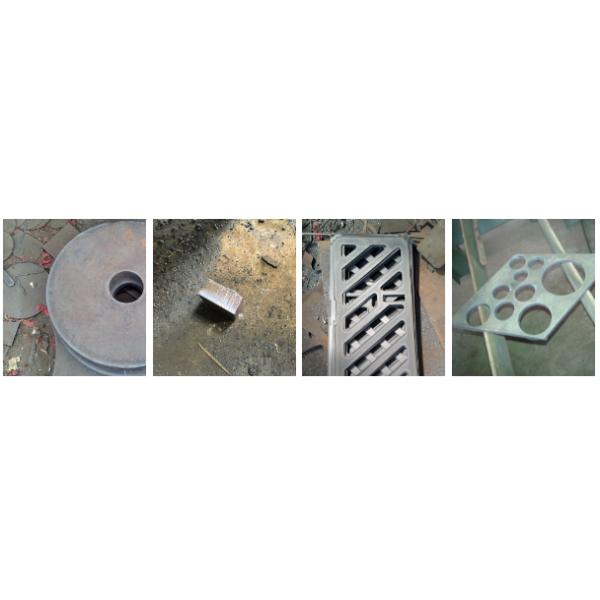

Cutting Samples:

Stepper Motor Small Gantry Plasma Carbon Steel Cutting Machine For Military Industry
