Specifications
Brand Name :
Yahong
Model Number :
YH40120
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T , L/C , Western Union, MoneyGram
Supply Ability :
200 pcs per month
Delivery Time :
15 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Heavy Gantry CNC Cutting Machine
Cutting Material :
Stainless steel , aluminum , iron , carbon steel
LCD Display Dimension :
10.4 inches
Effective Cutting size :
3200*10000mm
Cutting Speed :
0 - 8000 mm/min
Cutting Mode :
Plasma / Flame
Height Control :
Arc voltage height control
Software :
FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.)
Flame Cutting Thickness :
50-150mm
Description

High Definition Gantry CNC Flame Cutter , Dual Drive Plasma CNC Cutter 1500 W

Description:

1. Accumulating several years' experience in cutting area,this series of CNC cutting machine is our latest excellent type.

Human computer interface design makes the machine easy to learn and operate, and have complete functions.
2. Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
3. Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.
4. With two cutting modes: Flame Cutting & Plasma Cutting.

Features:

1. Less investment, the higher cutting efficiency, lower operating and maintenance cost.

2. This product is suitable for large, medium and small mines, widely used in automobile, shipbuilding, engineering machinery, agricultural machinery, suitable for carbon steel (flame cutting), and stainless steel.

3. It can be programmed to cutting parts directly, and also can be operated in computer translating instructions into a program file by CAD program, and then deducing it via U hardware.

Technical Parameters for Heavy Gantry CNC Cutting Machine:

1 Cutting shape Steel plate with any plane shapes fromed by straight lines and arcs
2 LCD Display Dimension 10.4 Inches
3 Effective Cutting Size 3200*10000mm
4 Railway Size 4000*12000mm
5 Plasma Cutting Thickness 0.5--20mm ( Depends on plasma power source capacity)
6 Flame Cutting Thickness 5--150mm
7 Lifting body 1 lifting body standard
8 Cutting Speed 0-8000mm per minute
9 Height Control Electric Height Control+Arc Voltage Height Control(THC)
10 Drive Mode Bilateral drive
11 Cutting Mode flame and plasma
12 Ignition device Auto ignition device
13 File transmission USB transmission
14 Gas Pressure Max. 0.1Mpa
15 Oxygen Pressure Max.0.7Mpa
16 Cutting Gas

Flame: Oxygen+ Acetylene/ Propane/ Coal gas

Plasma :air
17 Software FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.)
18 Cutting accuracy ±0.5mm
19 Power Supply Voltage/Frequency 220V 50HZ / 60HZ
20 Rated Power Supply 1500W
21 Working Temperature -10℃-60℃, Relative Humidity, 0-95%.

Applied Industies:

Advertising industry:

Advertising signs, logo making, decorative products, production of advertising and a variety of metal materials.

Mold Industry:

Engraving metal molds made of copper, aluminum, iron and so on.

Metal industry:

For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate, gold, silver, Titanium and other metal plate and tube.

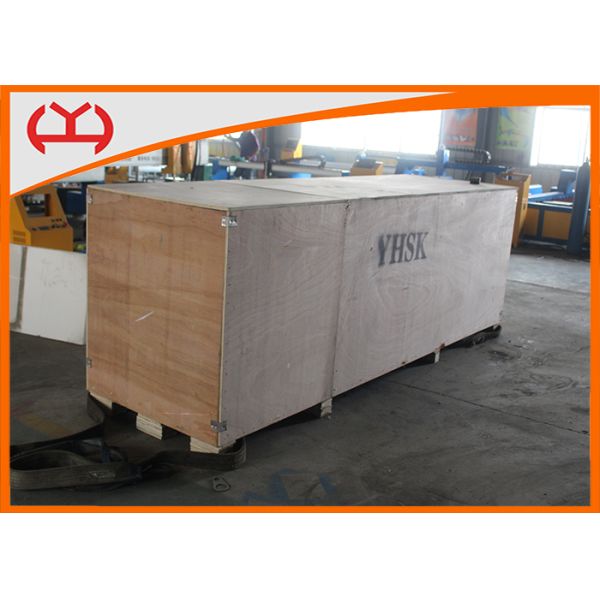

Packaging:

Dual Drive CNC Iron Cutting Machine , Sheet Metal Plasma Cutting Table High Definition
