Specifications
Brand Name :
Yahong
Model Number :
YH2560
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200pcs per month
Delivery Time :
7 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Gantry CNC Cutting Machine
Rated Power Supply :
1500W
LCD Display Dimension :
7.0 inches
Working Area :
2500*6000mm
Cutting Speed :
0-8000mm/min
Drive Mode :
Bilateral drive
Lifting body :
One Lifting Body
Height Control :
Arc voltage height control
Other cutting size :
can be customized
Description

Arc Voltage Height Control Mini Gantry Metal Cnc Plasma Cutter For Mild Steel

Description:

1. Machine tool and beam are of good quality aluminum alloy which is anti-deformed, durable, economical and decent after the disposal of stress relieving and surface oxidation.

2. The combination of the T-bar and tailored track with dual drive acquires zero-noise, high-intensity, high-speed and high-precision features.

3. Equipped with two movable bodies which is convenient and practical.

4. Cutting Objects: carbon steel, stainless steel and non-ferrous metal plate.

5. With the function of cutting metal plates into any shapes.

6. With two cutting modes: Flame Cutting & Plasma Cutting.

7. Can choose Plasma THC ( torch height control) device.

8. Plasma high frequency proofed which guarantees the safety of the plasma cutting.

Features:

1. Automatic memory function when power off or emergency stop.

2. Auto alarm function when faced with a mistake or arc breaking.

3. Advanced CNC control system, auto arc, arcing success rate over 99%.

4. Support DXF files of AUTOCAD by transfer software. Control system supports U disk file transfer.

Technical Parameters for Light Gantry CNC Cutting Machine:

1 Cutting shape Steel plate with any plane shapes fromed by straight lines and arcs
2 LCD Display Dimension 7.0 Inches
3 Effective Cutting Size 2500*6000mm
4 Railway Size 3000*7000mm
5 Plasma Cutting Thickness 0.5--20mm ( Depends on plasma power source capacity)
6 Flame Cutting Thickness 5--200mm
7 Lifting body 1 lifting body standard
8 Cutting Speed 0-8000mm per minute
9 Height Control Electric Height Control+Arc Voltage Height Control(THC)
10 Drive Mode Bilateral drive
11 Cutting Mode flame and plasma
12 Ignition device Auto ignition device
13 File transmission USB transmission
14 Gas Pressure Max. 0.1Mpa
15 Oxygen Pressure Max.0.7Mpa
16 Cutting Gas

Flame: Oxygen+ Acetylene/ Propane/ Coal gas

Plasma :air
17 Software FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.)
18 Cutting accuracy ±0.5mm
19 Power Supply Voltage/Frequency 220V 50HZ / 60HZ
20 Rated Power Supply 1500W
21 Working Temperature -10℃-60℃, Relative Humidity, 0-95%.

Advantage:

Movable Bodies Computerized Plasma Cutter Steel Plate Correction Function

Application:

The cutting accuracy reaches the excellent target for the cutting of Aluminum Sheet, Stainless Steel Plate, Titanium Plate, Copper Plate, Galvanized Sheet, Advertising with Luminous Three-Dimensional Characters and Metal Panel with T-shot. The cutting incision is small, tidy and neat, with no burr, so that avoid the second process.

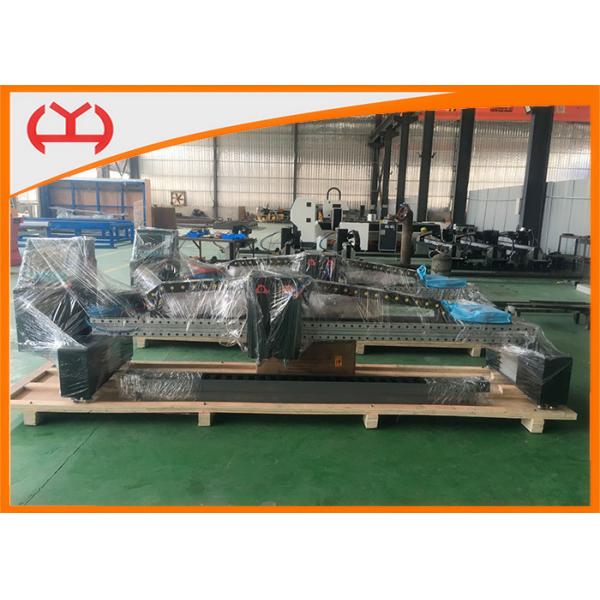

Packaging:

Movable Bodies Computerized Plasma Cutter Steel Plate Correction Function
