Metal Processing Gantry Plasma Cutting Machine Bilateral Drive Reasonable Structure
Metal Processing Gantry Plasma Cutting Machine Bilateral Drive Reasonable Structure
Metal Processing Gantry Plasma Cutting Machine Bilateral Drive Reasonable Structure
Metal Processing Gantry Plasma Cutting Machine Bilateral Drive Reasonable Structure
Metal Processing Gantry Plasma Cutting Machine Bilateral Drive Reasonable Structure
Metal Processing Gantry Plasma Cutting Machine Bilateral Drive Reasonable Structure
Metal Processing Gantry Plasma Cutting Machine Bilateral Drive Reasonable Structure
Metal Processing Gantry Plasma Cutting Machine Bilateral Drive Reasonable Structure
Specifications
Brand Name :
Yahong
Model Number :
YH2060
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T / L/C / western Union, MoneyGram
Supply Ability :
200 pcs per month
Delivery Time :
7 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Light Gantry CNC Cutting Machine
LCD Display Dimension :
7.0 inches
Effective Cutting size :
2000 * 6000mm
Cutting Speed :
0 - 8000mm/min
Drive Mode :
Bilateral drive
File transmission :
USB transmission
Cutting Mode :
Plasma / Flame
Height Control :
Arc voltage height control
Ignition device :
Auto ignition device
Description

Metal Processing Machine / Automated Gantry CNC Plasma Cutter With Bilateral drive

Description:

Gantry cnc metal cutting machine is a kind of CNC cutting equipment with high efficiency and high precision, and can reduce labor intensity. It is widely used in the process of cutting metal plate in machinery manufacturing industry, and can cut steel, stainless steel, aluminum, coppper and many kinds of non-ferrous metal.

It has plasma or flame cutting style. It is easy to maintain and to operate, and it is reliable. It has compact and ratio0nal construction, and the price is reasonable.It is more suitable for medium-sized and small enterprises to buy and use.

Feature:

1. CNC system with high configuration, automatic arc strike and stable performance, with above 99% arc strike success rate.

2. Support for standard G code path files which are generated by softwares such as Artcut, Artcam, Type3. DXF format files generated by softwares such as AUTOCAD can also be read through software transform. The controlling system adopts U disk to exchange processing files, operation is convenient and speedy.

3. Plasma power source and burning torch are equipped with famous domestic brands, and they are manufactured by factories with multi-termed national patent technology.

Technical Parameters for Light Gantry CNC Cutting Machine:

1 Cutting shape Steel plate with any plane shapes fromed by straight lines and arcs
2 LCD Display Dimension 7.0 Inches
3 Effective Cutting Size 2000*6000mm
4 Railway Size 2500*7000mm
5 Plasma Cutting Thickness 0.5--20mm ( Depends on plasma power source capacity)
6 Flame Cutting Thickness 5--200mm
7 Lifting body 1 lifting body standard
8 Cutting Speed 0-8000mm per minute
9 Height Control Electric Height Control + Arc Voltage Height Control (THC)
10 Drive Mode Bilateral drive
11 Cutting Mode flame and plasma
12 Ignition device Auto ignition device
13 File transmission USB transmission
14 Gas Pressure Max. 0.1Mpa
15 Oxygen Pressure Max.0.7Mpa
16 Cutting Gas

Flame: Oxygen + Acetylene / Propane / Coal gas

Plasma :air
17 Software FastCAM Standard (support Auto CAD / Solidworks / CAXA / Types etc.)
18 Cutting accuracy ±0.5mm
19 Power Supply Voltage/Frequency 220V 50HZ / 60HZ
20 Rated Power Supply 1500W
21 Working Temperature -10℃-60℃, Relative Humidity, 0-95%.

Our Services:

1. One year quality guaranty, the machine with main parts(excluding the consumables)

shall be changed free of charge when if any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 18 hours on line service each day, free technical support.

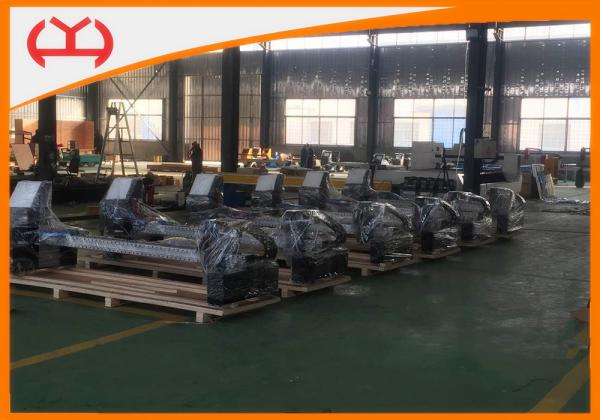

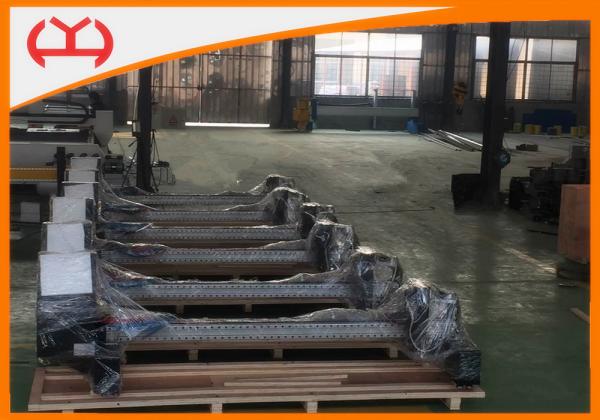

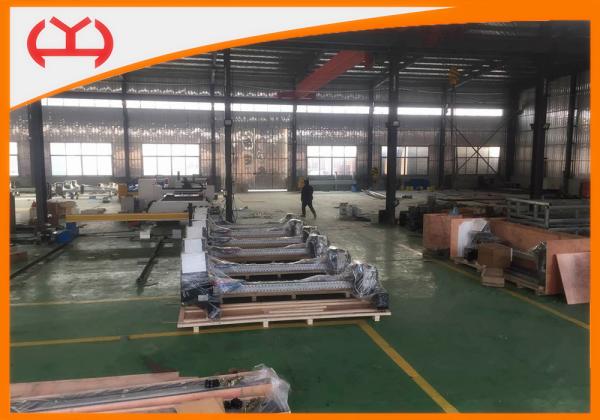

5. Machine has been adjusted before delivery.We will take machine photos and make
machine working image for you ,after gettingyour agreement ,then we will book a ship.

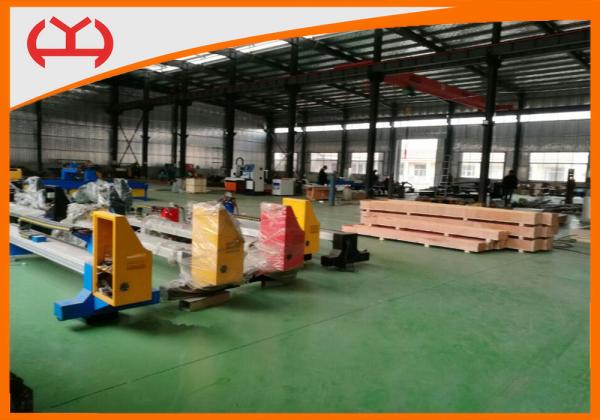

Gantry CNC Plasma Cutting Machine :

Metal Processing Gantry Plasma Cutting Machine Bilateral Drive Reasonable Structure
