Oxy Fuel Gantry Plasma Cutting Machinee 0.5 - 20 Mm MaterialThickness
Oxy Fuel Gantry Plasma Cutting Machinee 0.5 - 20 Mm MaterialThickness
Oxy Fuel Gantry Plasma Cutting Machinee 0.5 - 20 Mm MaterialThickness
Oxy Fuel Gantry Plasma Cutting Machinee 0.5 - 20 Mm MaterialThickness
Oxy Fuel Gantry Plasma Cutting Machinee 0.5 - 20 Mm MaterialThickness
Oxy Fuel Gantry Plasma Cutting Machinee 0.5 - 20 Mm MaterialThickness
Oxy Fuel Gantry Plasma Cutting Machinee 0.5 - 20 Mm MaterialThickness
Oxy Fuel Gantry Plasma Cutting Machinee 0.5 - 20 Mm MaterialThickness
Specifications
Brand Name :
Yahong
Model Number :
YH2060
Certification :
ISO / CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200pcs per month
Delivery Time :
7 days after received your payment
Packaging Details :

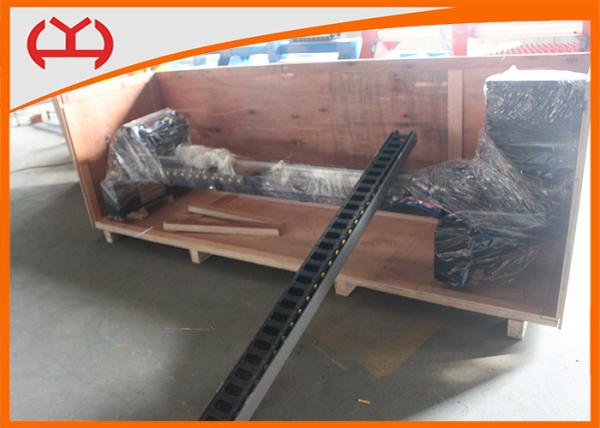

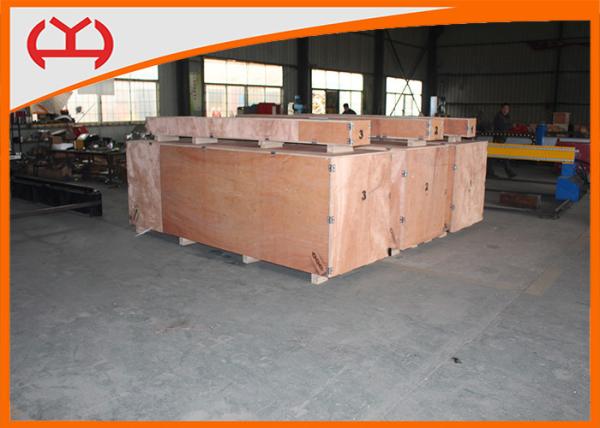

lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
I Light Gantry CNC Cutting Machine
Cutting Material :
Stainless steel , aluminum , iron , carbon steel
LCD Display Dimension :
7.0 inches
Effective Cutting size :
2000*6000mm
Cutting Speed :
0-8000mm/min
Plasma Cutting Thickness :
0.5--20mm ( Depends on plasma power source capacity)
Cutting Mode :
Plasma / Flame
Height Control :
Arc voltage height control
Ignition device :
Auto ignition device
Standard :
CE/ISO
Description

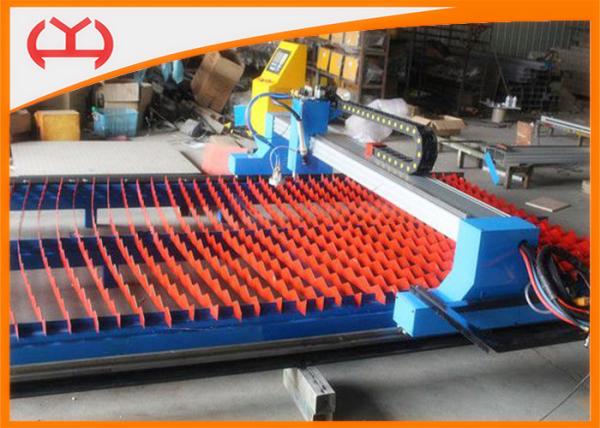

Gantry Oxy Fuel CNC Metal Cutting Machine Plasma 0.5 - 20 mm Cutting Thickness

Description:

Yahong YH2560 Series cnc plasma cutter is an excellent model designed and manufactured by Xuzhou Yahong CNC Equipment Factory. Its main characteristics is that this model uses bilateral drive mode so that the machine can operate smoothly, have high locating accuracy and simple & good appearance. Moreover, the modularized design makes machine components have strong exchange ability and equipment function be expanded more simply & conveniently. The user can configure plasma cutting torches in different sizes according to the process requirements. Its advantages is high automation, easy operation, high accuracy, high reliability, low price, and simple operation & maintenance.

Technical Parameters for Light Gantry CNC Cutting Machine:

1 Cutting shape Steel plate with any plane shapes fromed by straight lines and arcs
2 LCD Display Dimension 7.0 Inches
3 Effective Cutting Size 2000*6000mm
4 Railway Size 2500*7000mm
5 Plasma Cutting Thickness 0.5--20mm ( Depends on plasma power source capacity)
6 Flame Cutting Thickness 5--200mm
7 Lifting body 1 lifting body standard
8 Cutting Speed 0-8000mm per minute
9 Height Control Electric Height Control+Arc Voltage Height Control(THC)
10 Drive Mode Bilateral drive
11 Cutting Mode flame and plasma
12 Ignition device Auto ignition device
13 File transmission USB transmission
14 Gas Pressure Max. 0.1Mpa
15 Oxygen Pressure Max.0.7Mpa
16 Cutting Gas

Flame: Oxygen+ Acetylene/ Propane/ Coal gas

Plasma :air
17 Software FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.)
18 Cutting accuracy ±0.5mm
19 Power Supply Voltage/Frequency 220V 50HZ / 60HZ
20 Rated Power Supply 1500W
21 Working Temperature -10℃-60℃, Relative Humidity, 0-95%.

Applications:

Oxy Fuel Gantry Plasma Cutting Machinee 0.5 - 20 Mm MaterialThickness

Our Service:

1. Yahong CNC provides 13 months warranty, starts from receipt of the machine or parts.

2. All extra parts for the machine can be purchased with agent price.

3. Email/ Skype/Whasapp/ Trade manager online to support.

4. Life-long technical support and free after-sale service.

5. Professional technical team and salesperson help you with troubleshooting procedures.

6. Free and professional training at our factory.

7. Door-to-door service if necessary.

Light Gantry CNC Cutting Machine:

Oxy Fuel Gantry Plasma Cutting Machinee 0.5 - 20 Mm MaterialThickness
