Specifications
Brand Name :
Yahong
Model Number :
YH2560
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T , L/C , Western Union, MoneyGram
Supply Ability :
200 pcs per month
Delivery Time :
7 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Gantry CNC Oxy Cutting Machine
Frequency :
50HZ / 60HZ
LCD Display Dimension :
7.0 inches
Effective Cutting size :
2500 * 6000mm
Cutting Speed :
0 - 8000 mm/min
File transmission :
USB transmission
Standard :
CE / ISO
Cutting Mode :
Plasma / Flame
Height Control :
Arc voltage height control
Cutting Gas :
Acetylene / Propane
Description

Industrial Gantry CNC Plasma Oxy Fuel Cutting Machines 2500 * 6000mm Cutting Size

Description:

The gantry CNC plasma and flame cutting machine is specially designed for metal plate cutting,it is characterized of high automation and efficiency,easy operation and long service time.This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon requirement.

Competitive Advantage:

1. Steel hollow beam design ensures good heat dissipation without deformation.

2. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed.

3. Fully functionalized CNC system and optocoupler device enhance the super anti-jamming capability of the plasma system.

4. Multiple cutting torches can be configured.

5. Both flame and plasma torches are optional to meet the needs of cutting different materials in a range of thickness.

Applications:

This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other nonferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc

Technical Parameters for Light Gantry CNC Cutting Machine:

1 Cutting shape Steel plate with any plane shapes fromed by straight lines and arcs
2 LCD Display Dimension 7.0 Inches
3 Effective Cutting Size 2500*6000mm
4 Railway Size 3000*7000mm
5 Plasma Cutting Thickness 0.5--20mm ( Depends on plasma power source capacity)
6 Flame Cutting Thickness 5--200mm
7 Lifting body 1 lifting body standard
8 Cutting Speed 0-8000mm per minute
9 Height Control Electric Height Control+Arc Voltage Height Control(THC)
10 Drive Mode Bilateral drive
11 Cutting Mode flame and plasma
12 Ignition device Auto ignition device
13 File transmission USB transmission
14 Gas Pressure Max. 0.1Mpa
15 Oxygen Pressure Max.0.7Mpa
16 Cutting Gas

Flame: Oxygen+ Acetylene/ Propane/ Coal gas

Plasma :air
17 Software FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.)
18 Cutting accuracy ±0.5mm
19 Power Supply Voltage/Frequency 220V 50HZ / 60HZ
20 Rated Power Supply 1500W
21 Working Temperature -10℃-60℃, Relative Humidity, 0-95%.

FAQ:

1. Are you factory or foreign trade company?

We are industry and trade integration.

2. What shall we do if don't know how to operate your machine after bought from you?

We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day.

3. What's the quality of your products?

Parts of our products come with best quality, the machine after the installation completed, will be after 48 hours of aging. Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.

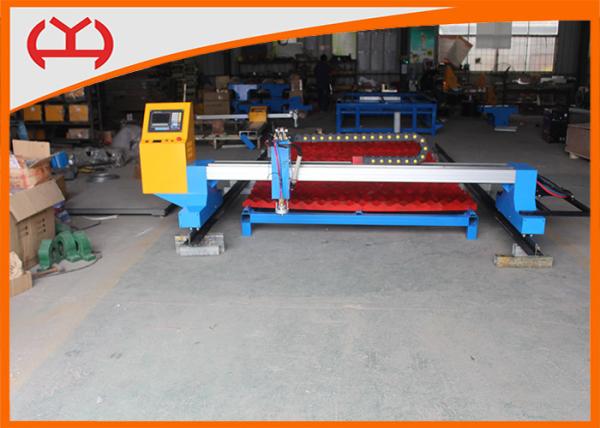

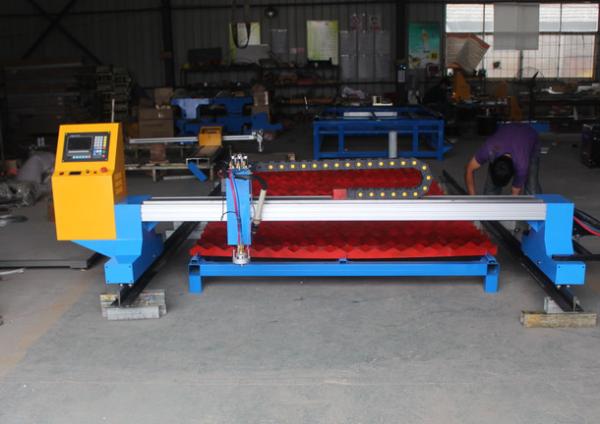

Light Gantry CNC Cutting Machine:

Bilateral Drive Mode Gantry Plasma Cutting Machine Equipment CE ISO Standard
