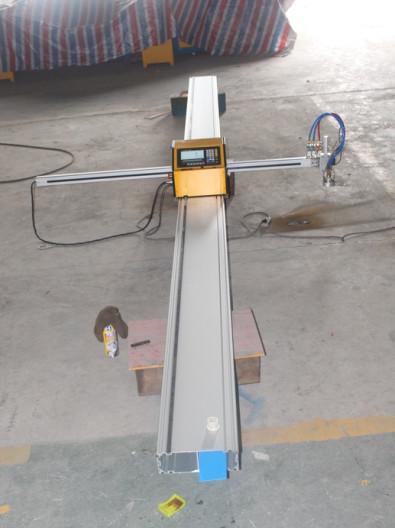

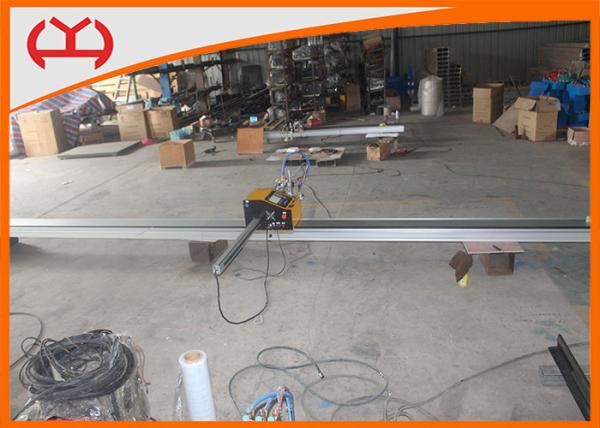

Transportable Portable Plasma Cutting Machine Light Duty For Mild Steel
Transportable Portable Plasma Cutting Machine Light Duty For Mild Steel
Transportable Portable Plasma Cutting Machine Light Duty For Mild Steel
Transportable Portable Plasma Cutting Machine Light Duty For Mild Steel
Transportable Portable Plasma Cutting Machine Light Duty For Mild Steel
Transportable Portable Plasma Cutting Machine Light Duty For Mild Steel
Transportable Portable Plasma Cutting Machine Light Duty For Mild Steel
Transportable Portable Plasma Cutting Machine Light Duty For Mild Steel
Transportable Portable Plasma Cutting Machine Light Duty For Mild Steel
Transportable Portable Plasma Cutting Machine Light Duty For Mild Steel
Specifications
Brand Name :
Yahong
Model Number :
YH1530
Certification :
ISO / CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200pcs per month
Delivery Time :
3 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Portable CNC Cutting Machine
Color :
According to your requirment
Cutting Speed :
0-4000mm/min
Ignition device :
Auto ignition device
Effective Cutting size :
1500*3000mm
Plasma Cutting Thickness :
0.5--20mm ( Depends on plasma power source capacity)
Height Control :
Arc voltage height control (THC)
MOQ :
One set
Multi-function :
Plasma and Flame
Description

Steel Mini Light Portable CNC Plasma Cutter / Plasma Cutting Equipment 200W

Features:

1. Low noise, high-intensity, high-speed and high-precision features.

2. Easy to learn and operate, and have complete functions because of human-computer interface design

3. Can cut carbon steel, stainless steel and non-ferrous metal plate.

4. Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.

5. Can automatically memorize and restore when power is off.

6. With status indication device.

7. With positioning functions of protection cover, proximity switch and dual-speed.

Application:

Industries as aerospace, agricultural machinery, tool manufacturing, construction railway manufacturing, elevator manufacturing, special construction vehicle, oil machinery manufacture, food machinery.


Technical Parameters for Portable CNC Cutting Machine:

1 Cutting shape any shapes
2 LCD Display Dimension 7.0Inches
3 Effective Cutting Width (X axis) 1500mm
4 Effective Cutting Length (Y axis) 3000mm
5 Cross Beam Length 2000mm
6 Longitudinal Rail Length 3500mm
7 Cutting Speed 0-4000mm per minute
8 Plasma Cutting Thickness 0.5--20mm ( Depends on plasma power source capacity)
9 Flame Cutting Thickness 5--200mm
10 Drive Mode single-side
11 Cutting Mode flame and plasma
12 Ignition device Auto ignition device
13 Height regulating device Arc voltage height control (THC) or Electric adjustable high
14 File transmission USB transmission
15 Gas Pressure Max. 0.1Mpa
16 Oxygen Pressure Max.0.7Mpa
17 Cutting Gas Acetylene/Propane
18 Plasma Power Source Yahong cut-100A,cut-130A, cut-200A or other
19 Plasma Air Only pressed Air
20 Software FastCAM Standard vision(support Auto CAD/ Solidworks/ CAXA/ Types etc.)
21 Plasma Air Pressure Max. 0.8Mpa
22 Cutting precision ±0.5mm National standard JB/T10045.3-99
23 Control accuracy ±0.01mm
24 Power Supply Voltage/Frequency 220V 50HZ / 60HZ
25 Rated Power Supply 200W
26 Working Temperature -10℃-60℃, Relative Humidity, 0-95%.



































Our Sercices:

24 hours technical support by email and calling.

Guarantee period: One years.

Supply the machine working video if you need.

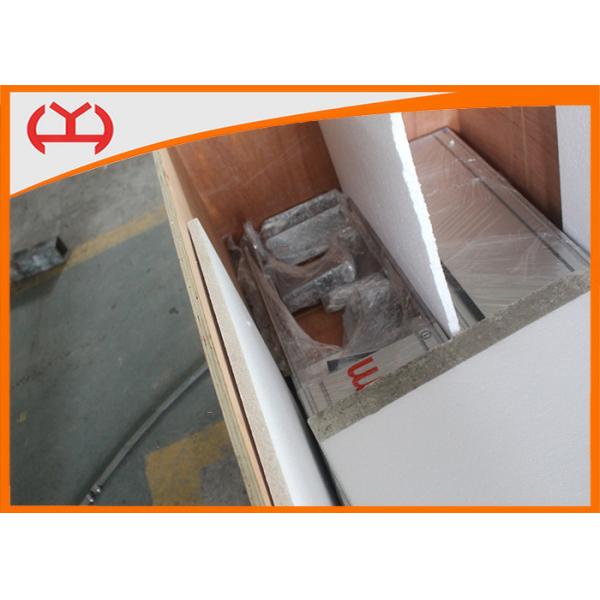

Packaging:

Transportable Portable Plasma Cutting Machine Light Duty For Mild Steel
