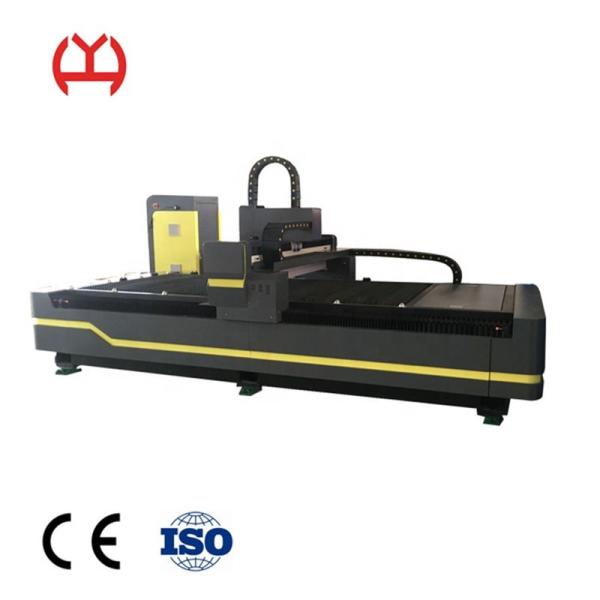

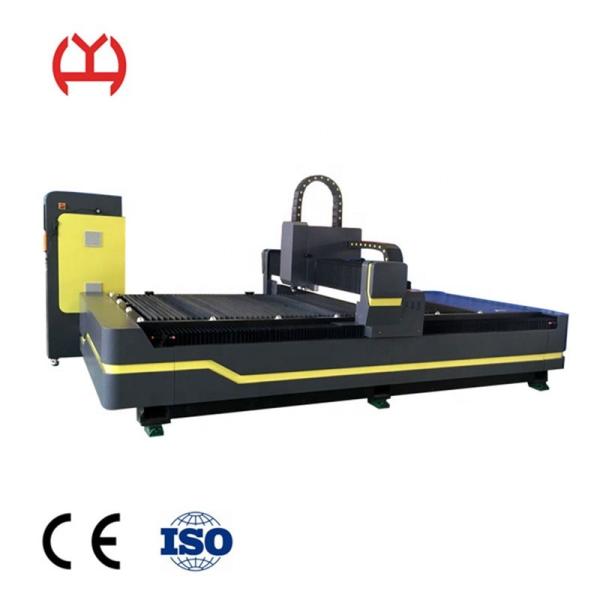

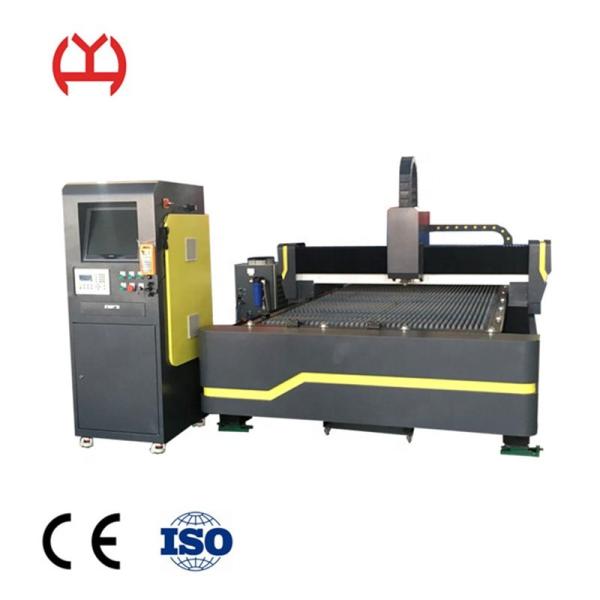

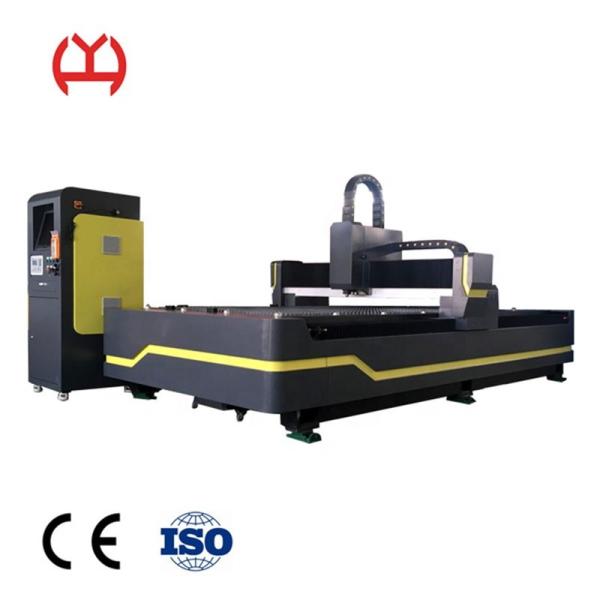

Single Table Fiber Laser Cutting Machine
Product Introduction

Product Features
1, Gantry double drive structure, smooth and reliable movement
2, Independent research and development design, the manufacture of machine tool bed, special processing technology, high precision of hine tool, stable and reliable, long life
3. Precision gear rack drive, with high precision gear reducer, high response and high precision servo motor;
4.The international first-class quality of fiber laser,industrial application for many years, long service life, maintenance free, stable and reliable
5. High precision laser cutting head, imported optical lenses, is focused on the fine, the adjustment is convenient, cutting perfect
6. A double closed-loop control capacitive torch height controller, low requirement to the steel plate, cutting quality is stable and reliable
7. CNC system is simple and easy operation, low requirements for the
8. Cutting graphic input multiple formats, powerful draw and edit graphics function;
10. Special cutting software, cutting technology experts, data call functions:
11. Automatic refueling system
12. Cutting gas pressure proportional valve to adjust automatically, not need manual adjustment;

• Bed and Beam

• Laser power

• Control cabinet

• System and remote controller

• Height controller

The height of the laser head is ad- justed in real time so that the plate can be effectively cut in the effective range of the laser, and the cutting precision is ensured.

• Motor drive

Reducer Using Japanese Yaskawa servo motor and driver. Large torque, good stability. The re- sponse speed is fast.response. Using Japanese SHIMPO reduce, The precision is high and the stability is good.

• Linear guide rail

Using Taiwan HIWIN linear guide rail,
1. high precision positioning
2. less abrasion can maintain the accuracy for a long time
3. driving horsepower for high speed movement and large reduction of machine

• • Rack

Taiwan YYC high precision rack. Obliquely teeth, high precision

• Proportional valve

Japanese SMC proportional valve Automatic control of gas pressure
