Metal Processing Laser CNC Machine Gantry Dual Drive Breakpoint Recovery Function
Metal Processing Laser CNC Machine Gantry Dual Drive Breakpoint Recovery Function
Metal Processing Laser CNC Machine Gantry Dual Drive Breakpoint Recovery Function
Metal Processing Laser CNC Machine Gantry Dual Drive Breakpoint Recovery Function
Metal Processing Laser CNC Machine Gantry Dual Drive Breakpoint Recovery Function
Metal Processing Laser CNC Machine Gantry Dual Drive Breakpoint Recovery Function
Specifications
Brand Name :
Yahong
Model Number :
YH3015
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T , L/C , Western Union, MoneyGram
Supply Ability :
20 pcs per month
Delivery Time :
30 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Fiber laser cutting machine
Applicable Material :
Metal
Laser Type :
Fiber Laser
Service :
OEM
Standard :
CE / ISO
Graphic Format Supported :
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, Other
Cooling Mode :
Water Cooling
Cutting Area :
3000*1500mm
Description

Automatic Cnc Laser Tube Cutting Machine For Metal Processing

Description:

1. Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.

2. The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding, customer will have long-term payback.

Features:

1. Support segmental pierce, Progressive pierce, Pre-pierce, support separately setting laser watt, frequency, laser type, air type, pressure, auto cutting height during pierce and cutting.

2. Support to set separate lead in/out speed according to adjustment of laser power.

3. Big storage, allowing user to save all cutting parameters to use it again on same material.

4. Breakpoint recovery, CNC can return to the point where the cutting stopped, allowing partial file cutting. It can go to any point to start there after stop or pause.

5. Same software can support round tube cutting and plate cutting, programming is same, and support intersect cutting.

6. Support to cut at set height, automatically seek edge, and start from outside of workpiece, or lift up when torch is out of workpiece.

7. Powerful expanding capability, over 15 PLC process programming, over 30 programmable processes.

8. Input/output and alarm input are programmable, support wireless remote control, and support internet

Competitive Advantage:

We can choose brand laser head origins from USA, Germany. It depends on customer’s request, or we would suggest according to the laser power you choose.

Surely laser head is standard supplied with closed-loop control Auto focus system.

We use Panasonic or Yaskawa servo, always confirm it with customer in advance.

Gear rack is YYC, Linear guide is THK.

Alpha gear rack and gearbox is available too.

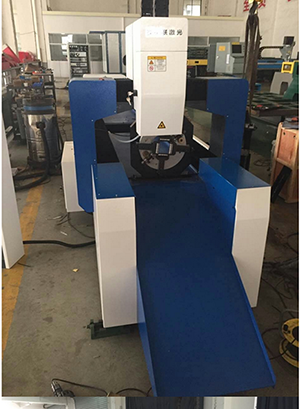

Metal Processing Laser CNC Machine Gantry Dual Drive Breakpoint Recovery Function

Technical Parameters for Fiber Laser Cutting Machine :

Item Model
YH2513 YH3015 YH4020
Effective size(mm) 2500*1250 3000*1500 4000*2000
Max process height(mm) 90
Effective stroke X axis(mm) 2550 3050 4050
Y axis(mm) 1300 1550 2050
Z axis(mm) 100
Position accuracy X axis(mm/m) ±0.03
Y axis(mm/m) ±0.03
Z axis(mm/m) ±0.01
Repeated accuracy X axis(mm) ±0.02
Y axis(mm) ±0.02
Z axis(mm) ±0.005
Fast positioning speed X axis(m/min) 72
Y axis(m/min) 72
Z axis(m/min) 15
Max cutting speed 30m/min
Max cutting thickness 6mm/C S; 3mm/ S S
Power consumption 6.8KW/h
Protection level IP54
Machine weight(Ton) 3.58 4.35 5.12
Size L*W*H(mm) 3420*1785*1346 4116*2165*1346 5628*2950*1346

Service after sales:

1. Machine will be supplied with training video and user's manual in English for installation, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone, skype…. for fast solution. We may offer technician for onsite service, customer shall cover visa, ticket, local living cost.

2. Customer may come to our factory for training. We will offer training of installation, operation, machine trouble-shooting, and maintenance.

During training in our workshop, we offer free training and living cost for 7 days, limit 2 people.

Fiber Laser Cutting Machine:

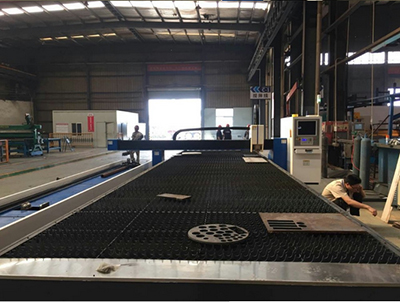

Metal Processing Laser CNC Machine Gantry Dual Drive Breakpoint Recovery Function
