Specifications
Brand Name :
Yahong
Model Number :
YH3015
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T , L/C , Western Union, MoneyGram
Supply Ability :
20 pcs per month
Delivery Time :
30 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Fiber laser cutting machine
Applicable Material :
Metal
Laser Type :
Fiber Laser
Service :
OEM
Standard :
CE / ISO
Graphic Format Supported :
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, Other
Cooling Mode :
Water Cooling
Cutting Area :
3000*1500mm
Cutting Thickness :
12mm
Description

500w Fiber Laser Cutting Machine For Carbon Steel , Aluminum Metal Cutting

Description:

Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.

The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding, customer will have long-term payback.

Competitive Advantage:

1. Double drive structure, stable and reliable movement.
2. Double cutting table, fast exchange speed, loading and unloading conveniently, highly efficiency.
3. Machine protected by sheetmetal, safe.
4. Independent R&D, manufacturing machinebody special processing technology,high precision, stable and reliable , long service life.With high response and high precision servo motor
5. High precision laser cutting head, imported optical lens, focusing on fine,convenient adjustment and perfect cutting

6. The CNC system operation is simple and easy to learn, low requirements for operators.

7. The international first-class quality fiber laser, long history of industrial applications,maintenance easily, stable and reliable.

Technical Parameters for Fiber Laser Cutting Machine :

Item

Technical Parameters

Type

3015

4020

6020

Max Cutting Size(mm)

3000×1500

3000×2000

6000×2000

Max Height of the Workpiece(mm)

110

110

110

Effective Travel

X axis(mm)

3100

4100

6100

Y axis(mm)

1600

2100

2100

Z axis(mm)

150

150

150

Positional Accutacy

X axis(mm/m)

±0.03

±0.04

±0.05

Y axis(mm/m)

±0.03

±0.04

±0.05

Z axis(mm/m)

±0.01

±0.01

±0.01

Repeated Positioning Accuracy

X axis(mm)

±0.02

±0.02

±0.03

Y axis(mm)

±0.02

±0.02

±0.03

Z axis(mm)

±0.005

±0.005

±0.005

Repid Positioning Speed

X axis(m/min)

120

120

120

Y axis(m/min)

120

120

120

Z axis(m/min)

30

30

30

Accelerated Speed(G)

X axis(G)

1.3

1.3

1.3

Y axis(G)

1.3

1.3

1.3

Working Platform Loading Weight(Kg)

1200

1800

2400

Working Platform Raising Time(S)

15

15

15

Working Platform To Exchange Time(S)

20

22

25

The Laser Power(W)

500/800/1000/1500/2000/3000/4000

The Power Consumption of The Machine Tool(Kwh)

9.45

10.25

10.25

Total Weight(T)

9.65

11.3

13.8

Boundary Dimension L×W×H(mm)

7861×3225×1600

12150×3225×1600

15260×3225×1600

FAQ:

Question 1: I want to buy this machine,what suggestion can you give?

Answer: Please tell me:what material do you process? What's the size of your material?(Better show me your product picture)

Question 2: What's the delivery cost & time?
Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.

Question 3: Have you exported to our country?
Answer: We have been in this field for 11 years,we have CE,CO,ISO,FDA certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.

Question 4: This is the first time I use this kind of machine, is it easy to operate?

There are english manual or guide video that show how to use machine.

If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

MOQ ?
1 set machine, mixed order is also welcomed.

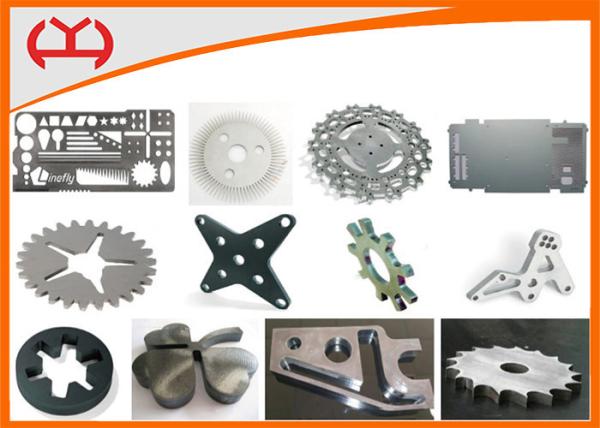

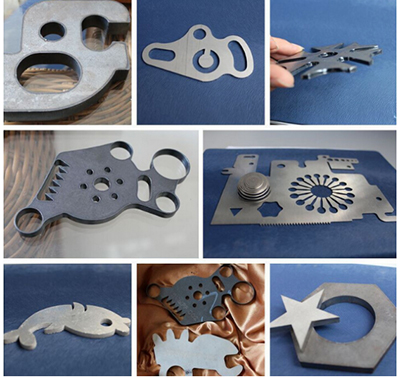

Cutting Samples:

12mm Thickness 500 Watt CNC Fiber Laser Cutter , Fiber Optic Laser Cutting Machine Aluminum

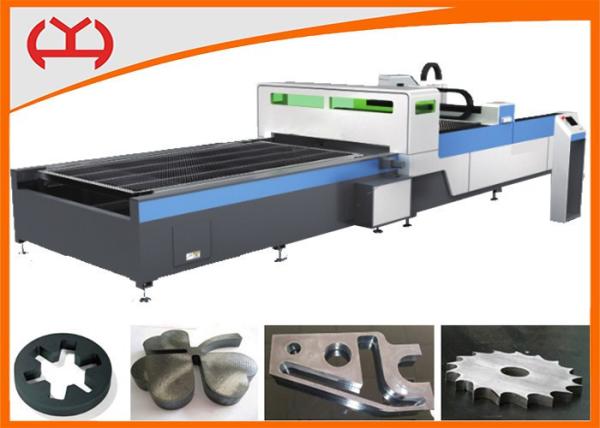

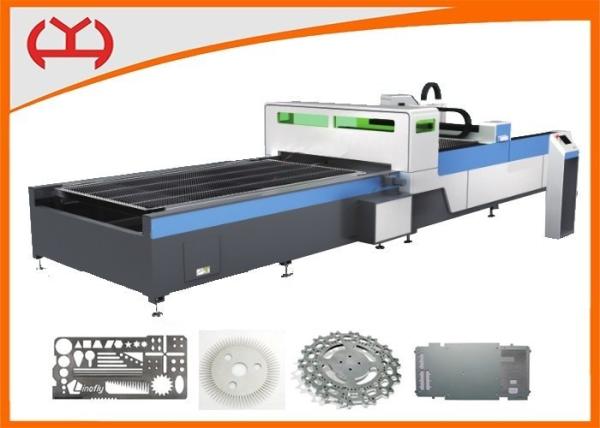

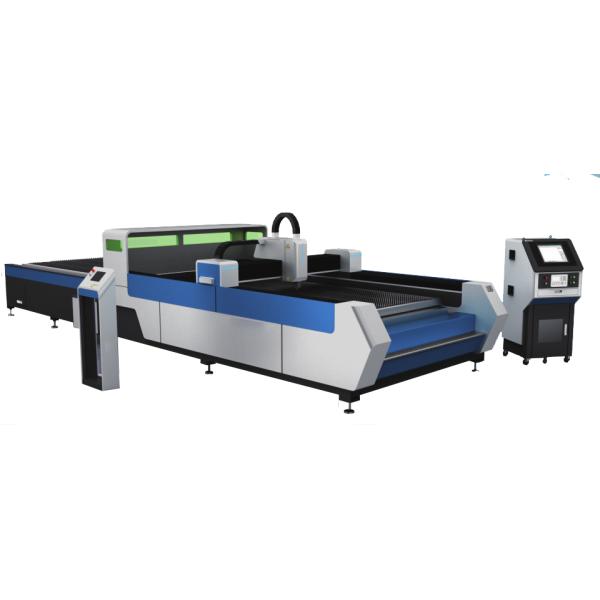

Fiber Laser Cutting Machine:

12mm Thickness 500 Watt CNC Fiber Laser Cutter , Fiber Optic Laser Cutting Machine Aluminum
