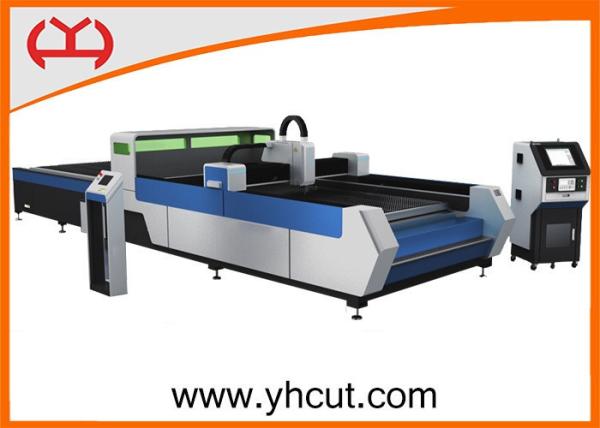

Low Noise CNC Fiber Laser Cutter , Carbon Fiber Cutting Machine For Sheet Metal Processing
Low Noise CNC Fiber Laser Cutter , Carbon Fiber Cutting Machine For Sheet Metal Processing
Low Noise CNC Fiber Laser Cutter , Carbon Fiber Cutting Machine For Sheet Metal Processing
Low Noise CNC Fiber Laser Cutter , Carbon Fiber Cutting Machine For Sheet Metal Processing
Low Noise CNC Fiber Laser Cutter , Carbon Fiber Cutting Machine For Sheet Metal Processing
Low Noise CNC Fiber Laser Cutter , Carbon Fiber Cutting Machine For Sheet Metal Processing
Specifications
Brand Name :
Yahong
Model Number :
YH3015
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T , L/C , Western Union, MoneyGram
Supply Ability :
20 pcs per month
Delivery Time :
30 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Fiber laser cutting machine
Applicable Material :
Metal
Laser Type :
Fiber Laser
Service :
OEM
Standard :
CE / ISO
Graphic Format Supported :
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, Other
Cooling Mode :
Water Cooling
Cutting Area :
3000*1500mm
Cutting Thickness :
12mm
Description

Low Noise Table Cnc Fiiber Laser Cutting Machine For Sheet Metal Processing

Description:

Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.

The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding, customer will have long-term payback.

Features:

1. The integration of high strength frame type lathe bed structure, good rigidity, ensure the high stability of the equipment.

2. Guide rail base with high precision gantry , and adopts imported linear guide rail, installation

and debugging adopt precision collimator test, ensure the high speed and high precision.

3. A new advanced design, unique closed constant light path structure.

4. The follow-up on smoking and smoke exhaust system, under high power exhaust more thoroughly.

5. The mixture of machine cutting ability: for stainless steel, carbon steel, acrylic, and the board can be cut.

6. Machine precision: imported servo, with imports of ball screw transmission, greatly improves the response speed and precision equipment, prolong the service life of the product.

7. The constant light path system: this machine adopts the constant light path system, for the

first time realized the full width and high precision cutting.

Technical Parameters for Fiber Laser Cutting Machine :

Item

Technical Parameters

Type

3015

4020

6020

Max Cutting Size(mm)

3000×1500

3000×2000

6000×2000

Max Height of the Workpiece(mm)

110

110

110

Effective Travel

X axis(mm)

3100

4100

6100

Y axis(mm)

1600

2100

2100

Z axis(mm)

150

150

150

Positional Accutacy

X axis(mm/m)

±0.03

±0.04

±0.05

Y axis(mm/m)

±0.03

±0.04

±0.05

Z axis(mm/m)

±0.01

±0.01

±0.01

Repeated Positioning Accuracy

X axis(mm)

±0.02

±0.02

±0.03

Y axis(mm)

±0.02

±0.02

±0.03

Z axis(mm)

±0.005

±0.005

±0.005

Repid Positioning Speed

X axis(m/min)

120

120

120

Y axis(m/min)

120

120

120

Z axis(m/min)

30

30

30

Accelerated Speed(G)

X axis(G)

1.3

1.3

1.3

Y axis(G)

1.3

1.3

1.3

Working Platform Loading Weight(Kg)

1200

1800

2400

Working Platform Raising Time(S)

15

15

15

Working Platform To Exchange Time(S)

20

22

25

The Laser Power(W)

500/800/1000/1500/2000/3000/4000

The Power Consumption of The Machine Tool(Kwh)

9.45

10.25

10.25

Total Weight(T)

9.65

11.3

13.8

Boundary Dimension L×W×H(mm)

7861×3225×1600

12150×3225×1600

15260×3225×1600

After-Sales Service :


1.Installation Service
our technicians will provide on-site service. According to the specific circumstances, we will arrange technicians go

abroad to install the machine. (Customers only need to pay the airfare and hotel )

2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your

technician to our company to learn how to operate machines.

3.Quality Guarantee
We guarantee the quality of machine, and the whole machine warranty for one year.(quick-wear parts not included)
Once malfunction occurs,We guarantee we will give you a clear reply within 24 hours. Customer service staff will assist

and guide you to analyze the malfunction in order to locate the cause and solve the problem as soon as possible.

Cutting Samples:

Low Noise CNC Fiber Laser Cutter , Carbon Fiber Cutting Machine For Sheet Metal Processing

Delivery:

Low Noise CNC Fiber Laser Cutter , Carbon Fiber Cutting Machine For Sheet Metal Processing
