OEM Water Cooling Industrial CNC Laser Cutting Machine 4191×2520×1326 Boundary Dimension
OEM Water Cooling Industrial CNC Laser Cutting Machine 4191×2520×1326 Boundary Dimension
OEM Water Cooling Industrial CNC Laser Cutting Machine 4191×2520×1326 Boundary Dimension
OEM Water Cooling Industrial CNC Laser Cutting Machine 4191×2520×1326 Boundary Dimension
OEM Water Cooling Industrial CNC Laser Cutting Machine 4191×2520×1326 Boundary Dimension
OEM Water Cooling Industrial CNC Laser Cutting Machine 4191×2520×1326 Boundary Dimension
Specifications
Brand Name :
Yahong
Model Number :
YH3015
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T , L/C , Western Union, MoneyGram
Supply Ability :
20 pcs per month
Delivery Time :
30 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Fiber laser cutting machine
Max cutting size :
3000×1500 mm
Max Cutting Speed :
15m/min
Power adjust range (%) :
5-100
Boundary dimension L×W×H(mm) :
4191×2520×1326
Service :
OEM
Focal length F(mm) :
150
Fiber Laser :
Rycas-500W
Description

Water Cooling 500W Fiber Laser CNC Cutting MachineFor Stainless Steel

Product introduction:

500W fiber laser cutting machine is the finalize the design product, maximum cutting ability, carbon steel plate up to 6mm,and quality cutting 6mm, and 2mm stainless steel plate; double driving structure of the longitudinal direction with pinion and rack, and also transverse direction with gear and rack transmission, with today's most advanced fiber laser as a laser power source, combined with the company’s independent research and development design.

Fiber Lasers bring you a cost effective, low-maintenance, low operating cost,environmentally friendly solution to your organization. We deliver a machine that providesquality cutting and tolerances with small productivity loss between jobs, equating to higher returnon investments. Our fiber laser cutting machines are developed and sold based on these criteria.

Main features:

1. Reduction in cutting variables or tribal knowledge.

2. Fiber Laser is extremely efficient, equates to very low power consumption.

3. Low cost of operation, energy cost reduced, no laser gases requied to produce beam.

4. High cutting flexibility (Steel, Stainless Steel, Brass, Copper, Titanium, Aluminum, and more).

5. Laser beam transmitted through a fiber optic.cable rather than with mirrors and channel tubing resulting in negligible power loss.

6. Higher cutting speeds possible.

Technology parameters:

Max cutting size (mm) 3000×1500
The workpiece maximum height (mm) 90
Effective travel X axle(mm) 1550
Y axle (mm) 3050
Z axle (mm) 100
PositionaI accuracy X axle (mm/m) ±0.05/1000
Y axle (mm/m) ±0.05/1000
Z axle (mm/m) ±0.01/100
repeated positioning accuracy X axle (mm) ±0.01
Y axle (mm) ±0.01
Z axle (mm) ±0.005
Rapid positioning speed X axle (m/min) 72
Y axle (m/min) 72
Z axle (m/min) 15
Max Cutting Speed (m/min) 15
IP Grade IP54
Total weight (T) 4.35
Machine Power Consumption (Kwh) 1.6
Boundary dimension L×W×H(mm) 4191×2520×1326

Laser & process parameters:

Items Technical parameters
working mode Continuous/modulation
Laser power(W) 500
Laser wavelength (nm) 1070
The maximum modulation frequency (KHz) 5
laser mode Multi mode
Optical quality (M2) 2.2mm*mrad
Power adjust range (%) 5-100
Fiber Length (m) 10m
Type of cooling water-cooling
Operating temperature (℃) 10-40
Long-term stability (24h) ﹤2%
Laser life(h) 100000
maximum cutting thickness MS (mm) 12
SS(mm) 4
cutting speed (1mm MS) 15m/min
Focal length F(mm) 150
Adjustable focus range (mm) 0-10
Overall Power Consumption (Kwh) 4

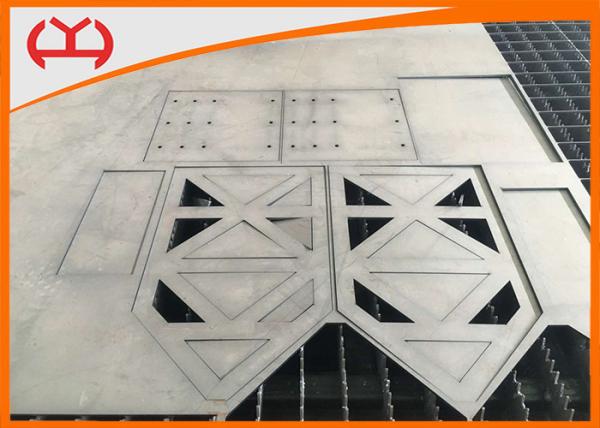

Cutting Sample:

OEM Water Cooling Industrial CNC Laser Cutting Machine 4191×2520×1326 Boundary Dimension
