Specifications
Brand Name :
Yahong
Model Number :
YH3015
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T , L/C , Western Union, MoneyGram
Supply Ability :
20 pcs per month
Delivery Time :
30 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Rycas Fiber laser cutting machine
Max cutting size :
3000×1500 mm
Max Cutting Speed :
15m/min
Power adjust range (%) :
5-100
Boundary dimension L×W×H(mm) :
4191×2520×1326
Service :
OEM
Focal length F(mm) :
150
Fiber Laser :
Rycas-500W
Description

Mild Steel Plate Cnc Fiber Laser Cutting Machine Closed Loop Controller

Product introduction:

1. 500W fiber laser cutting machine is the finalize the design product, maximum cutting ability, carbon steel plate up to 6mm,and quality cutting 6mm, and 2mm stainless steel plate; double driving structure of the longitudinal direction with pinion and rack, and also transverse direction with gear and rack transmission, with today's most advanced fiber laser as a laser power source, combined with the company’s independent research and development design.

2. Integrally cast aluminum beam, strong rigidity, light weight, small inertia, fast response, machine acceleration of 0.6 G, empty moving speed of 72 m/s, improving the processing ability of the equipment. Equipment machining accuracy for a long time to keep within + / - 0.05 mm.

Main features:

1. Has the very good rigidity and stability; With high response servo motor, high precision, high speed.

2. Fiber lasers with high beam quality, high brightness, high conversion rate, free maintenance, stable and reliable.

3. low cost and small volume.

4. Professional smoke dust, smoke dust effect is good, good working environment of the factory..

Basic configration:

No. Description Brand Origin
1 Machine main body Yahong China
2 CNC operationg carbinet Yahong China
3 Smoke dust sucking structure Yahong China
4 air conditioning cabinet Yahong China
5 Fiber Laser Rycas-500W China
6 optical module Import America
7 Conductive fiber Import America
8 QBH connector Import America
9 Laser cutting head RayToolAG Swiss
10 laser chiller Han’s China
11 CNC system Baichu China
12 Capacitive THC Baichu China
13 Servo motor Fuji Japan
14 IPC ADVANTECH Taiwan
15 Gear rack YYC/ Level 6 precision Taiwan
16 Linear Guide Bosch Rexroth Germany
17 Precision reducer Shimpo/3 Arc-min Japan
18 Proportional valve SMC Japan
19 high-pressure valve ARK Korea
20 Electronic pieces Schneider France
21 Solenoid valve SMC Japan
22 Air cylinder AirTAC Korea
23 Air Conditioner WINHENG China
24 Cutting software Baichu China
25 Composing software SmartNest China

Technical indicators:

1,Machine tool technology parameters

Items Technical parameters
Max cutting size (mm) 3000×1500
The workpiece maximum height (mm) 90
Effective travel X axle(mm) 1550
Y axle (mm) 3050
Z axle (mm) 100
PositionaI accuracy X axle (mm/m) ±0.05/1000
Y axle (mm/m) ±0.05/1000
Z axle (mm/m) ±0.01/100
repeated positioning accuracy X axle (mm) ±0.01
Y axle (mm) ±0.01
Z axle (mm) ±0.005
Rapid positioning speed X axle (m/min) 72
Y axle (m/min) 72
Z axle (m/min) 15
Max Cutting Speed (m/min) 15
IP Grade IP54
Total weight (T) 4.35
Machine Power Consumption (Kwh) 1.6
Boundary dimension L×W×H(mm) 4191×2520×1326

2,Laser & process parameters

Items Technical parameters
working mode Continuous/modulation
Laser power(W) 500
Laser wavelength (nm) 1070
The maximum modulation frequency (KHz) 5
laser mode Multi mode
Optical quality (M2) 2.2mm*mrad
Power adjust range (%) 5-100
Fiber Length (m) 10m
Type of cooling water-cooling
Operating temperature (℃) 10-40
Long-term stability (24h) ﹤2%
Laser life(h) 100000
maximum cutting thickness MS (mm) 12
SS(mm) 4
cutting speed (1mm MS) 15m/min
Focal length F(mm) 150
Adjustable focus range (mm) 0-10
Overall Power Consumption (Kwh) 4

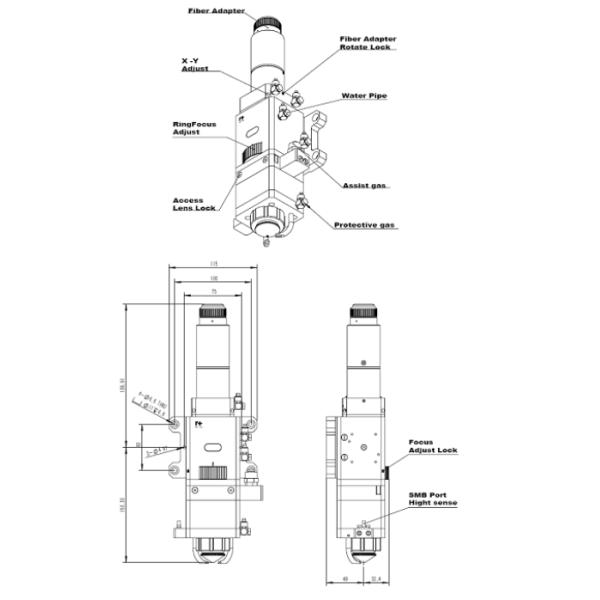

Laser cutting head:

Cutting head part adopts original Swiss RayTools AG newly developed BT240 series laser cutting head, the QBH interface, high cutting efficiency, cutting section of good quality;
