Main features:

1. High strength, high rigidity box type welding machine frame, high precision linear guide and rack driving and bilateral drive system to strengthen the accuracy and stability of the machine running .

2. Integrally cast aluminum beam, strong rigidity, light weight, small inertia, fast response.

3. Machine acceleration of 0.6 G, empty moving speed of 72 m/s, improving the processing ability of the equipment.

4. Equipment machining accuracy for a long time to keep within + / - 0.05 mm.

Basic configration:

Technical indicators:

1. Machine tool technology parameters:

2. Laser & process parameters:

Product introduction:

Beam body with the method of integral aluminum casting, annealing processed after stress relief, the process for the castings to annealing to stress to rough machining, vibration aging, semi-finishing to vibration aging, finish machining, machining after tempering, ensure the strength, rigidity and stability of the beam as a whole, can maintain the precision of the beam for long time.

The beam is installed on the body of precision linear guide in pairs. Beam is equipped with high quality linear guide above, servo motor drive, through reducer gear rotates, the Z axis skateboard to achieve the reciprocating movement of the Y direction, moving distance is 1550 mm; In the process of movement, limited position switch control, at the same time at both ends and elastic buffer hard spacing device, ensure the security of the system operation;

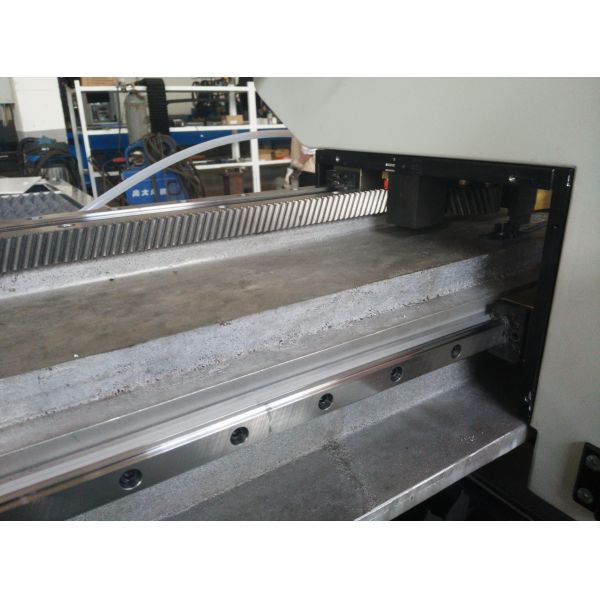

Above the beam and both sides with retractable organ type shield, ensure that the rack and linear guide in fully enclosed environment, not affected by the external environment. Beam is equipped with automatic lubricating device, add lubricating oil regularly to the gear rack and linear guide, ensure that the gear rack in good lubrication condition, operation to improve the service life of the gear and rack;
