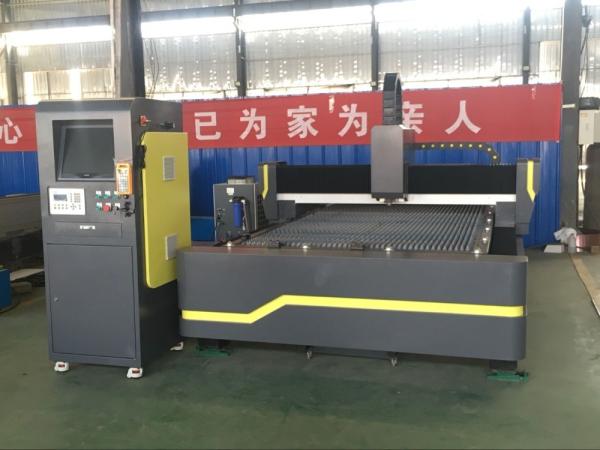

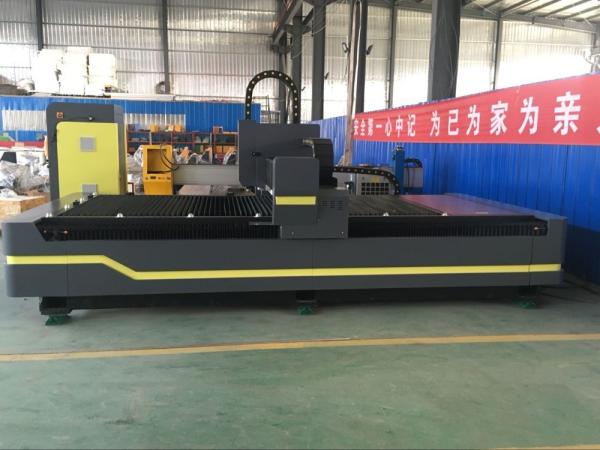

I.Product Features

1, Independent R & D, manufacturing cutting table,special processing technology,high precision, stable and reliable, long service life.
2, The main body of the steel plate welding, transmission structure, on the axis of aluminum cast beams, light weight, fast response, good dynamic performance
3, Under the dual drive shaft precision helical structure on shaft bevel gear trans-mission, stable and reliable motion
4, The international first-class quality fiber laser, long history of industrial appli-cations,maintenance easily, stable and reliable
5, With high response and high precision servo motor
6, High precision laser cutting head, imported optical lens, focusing on fine,convenient adjustment and perfect cutting
7, The high response of double loop control high capacitance, low sensi-tive on the plate, the cutting quality is stable and reliable
8, The CNC system operation is simple and easy to learn, low require-ments for operators
9, Cutting graphics input formats, powerful graphics rendering and editing function
10, Special cutting software, cutting technology experts, datastorage call function
11, Proportional valve control gas flow, air flow stability, cutting surface quality
12, Automatic lubrication system, machine running more smoothly, long life
13, The process of smoke dust experts, like boat exhaust gas system design, the effect is better

II.Machine Technical Parameters:

1. Support different images format as Al, DXF, PLT, Gerber, can read standard ISO G codes from MaterCam, Type3 such nesting software.

2. Automatically optimization when open or lead in DXF file, like delete repeated line, merge connected lines, recognize in/out cutting file and file sorting out.User can decide to manually do above work, or let controller do it automatically.

3. Support conventional picture edit functions

4. Following what you see is what you get, to set lead in/out, kerf compensation, merge, bridge, over burning, save gap ….etc

5. Unique function of Preview of cutting work flow.

6. Support segmental pierce, Progressive pierce, Pre-pierce, support separately setting laser watt, frequency, laser type, air type, pressure, auto cutting height during pierce and cutting.

7. Support to set separate lead in/out speed according to adjustment of laser power.

8. Big storage, allowing user to save all cutting parameters to use it again on same material.

9. Breakpoint recovery, CNC can return to the point where the cutting stopped, allowing partial file cutting. It can go to any point to start there after stop or pause.

10. Same software can support round tube cutting and plate cutting, programming is same, and support intersect cutting.

11. Support to cut at set height, automatically seek edge, and start from outside of workpiece, or lift up when torch is out of workpiece.

12. Powerful expanding capability, over 15 PLC process programming, over 30 programmable processes.

13. Input/output and alarm input are programmable, support wireless remote control, and support internet .

We have assembled CNC systems with many famous brand controllers, like Hypertherm’s EDGE, Burny, Fanuc, Fagor controllers, collected rich experience of CNC system building.

Our capability and experience enables us build CNC system according to the CNC controller you choose.

And according to our anti-interference practice experience in plasma cutting field, we have strict anti-interference design in our CNC laser controller system.

Machine stability decided by small details

We use brand laser head origins from Switzerland,and also can choose from USA, Germany. It depends on customer’s request, or we would suggest according to the laser power you choose.

Surely laser head is standard supplied with closed-loop control Auto focus system.

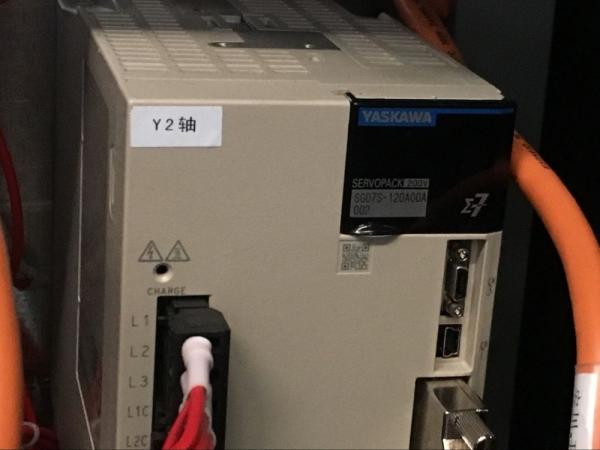

Same as most manufacturers, we use Panasonic/Yaskawa servo and Shimpo gearbox, but how to fix it on machine and commission it makes big difference.

It matters to machine’s fast move precision, and long-term work stability.

That’s why only few manufacturers can make high precision machine.

We also choose other brand servo according to CNC controller’s request.

Laser Power

We can offer China fiber laser power 500W, and 750W/1KW will be mature soon.

Over 1000W, we only suggest IPG, SPI such brand fiber laser.

We may supply it with machine for customer’s convenience, or allow customer to buy it on their own if it is a better option.

I.Cutting Samples:

Packing: lining--anti-static film package firstly, waterproof, moistureproof.

Intermediate--around the perimeter of the box, there is bubble.

Outer--export standard packing, fumigation-free plywood.
