Specifications
Place of Origin :
china
Brand Name :
YAHONG
Certification :
CE, ISO
MOQ :
1-4 Sets
Price :
$14,800.00
Usage :
welding
Max. Output Power :
1500w
Condition :
New
Warranty :
1 year
After-sales Service Provided :
Online support, Free spare parts, Field installation, commissioning and training, Video technical support
Dimensions :
750-1000mm
Single Pulse Energy :
90j
Pulse Width :
15ms
Focal Spot Diameter :
0.2-3mm
Wavelength :
1070
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Advertising Company, cabinet
Laser Source Brand :
RAYCUS
Laser Head Brand :
WSX
Control System Brand :
Cypcut
Guiderail Brand :
HIWIN
Servo Motor Brand :
Yaskawa
Key Selling Points :
High Productivity
Weight (KG) :
280 KG
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
Viet Nam, Mexico, Thailand
Showroom Location :
Viet Nam, Mexico
Max laser power :
2000w
Selling Units :
Single item
Single package size  :
70X122X142 cm
Single gross weight :
290.0 kg
Package Type :
standard plywood case
Description

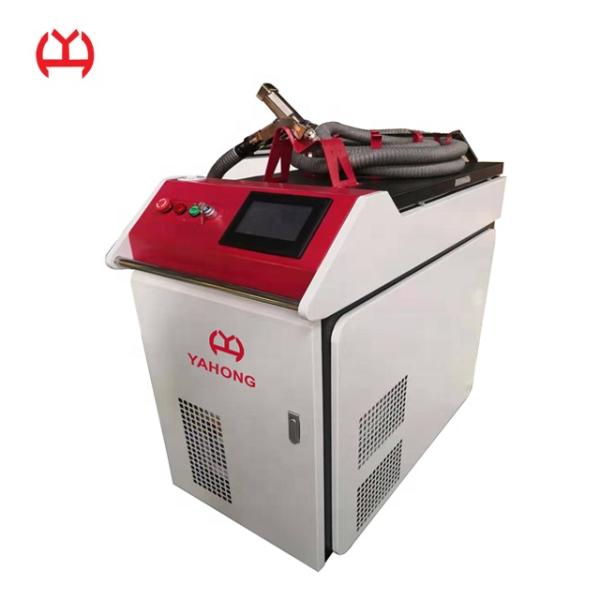

Hand held fiber laser welding machine manufacturer 500w 1000w 1500w 2000w Optical  Fiber Laser Welding Machine , CNC Laser Welding Machine Small Dimension

I.Advantage:

Our company's hand-held fiber laser welding machine can weld carbon steel, stainless steel, aluminum plate and other non-ferrous metals. There is no technical requirement for the welding personnel, operation is very easy, the cost is low, the cost is only electricity, and the electricity cost is only one tenth of the ordinary welding machine, and the welding wire is not needed. Especially suitable for thin plate welding.

II.Welding thickness Parameter:

Model

Carbon steel

Stainless steel

Aluminum

1000W

5mm

3mm

3mm

1500W

8mm

5mm

5mm

III, Technical specifications

1, Equipment introduction

l* The system is mainly composed of a laser unit and a welding unit;

l* Hand-held welding, taking into account the flexibility, high efficiency and high weld quality of laser welding;

l* Modular design and layout of the overall equipment, beautiful and easy to maintain and debug;

l* High system flexibility, compatible with a wide range of models, and short changeover times;

l* The overall appearance color: red + white;

l* Power(MAX):2.5-5KW;

2, Device configuration table

Number

Name

specification

Brand

1

Fiber laser

RFL-1000H/ RFL-1500H/

Raycus

2

Cabinet

BY-LW1000

YAHONG

3

Swing welding head and control system

DN18

YAHONG

Package photos:

Optical  Fiber Laser Welding Machine , CNC Laser Welding Machine Small Dimension Optical  Fiber Laser Welding Machine , CNC Laser Welding Machine Small Dimension

Consumables: Nozzles and protective lense

Optical  Fiber Laser Welding Machine , CNC Laser Welding Machine Small Dimension Optical  Fiber Laser Welding Machine , CNC Laser Welding Machine Small Dimension

Welding samples:

Optical  Fiber Laser Welding Machine , CNC Laser Welding Machine Small Dimension Optical  Fiber Laser Welding Machine , CNC Laser Welding Machine Small DimensionOptical  Fiber Laser Welding Machine , CNC Laser Welding Machine Small Dimension Optical  Fiber Laser Welding Machine , CNC Laser Welding Machine Small Dimension

Factory introduce:

Optical  Fiber Laser Welding Machine , CNC Laser Welding Machine Small Dimension

Xuzhou YAHONG CNC manufacture is located in High-tech Development Zone, Xuzhou, Jiangsu Province. Our factory has become the plasma metal cutting machine,fiber laser cutting machine,fiber laser welding machine leader of domestic market with years of years of effort and development. Our machines' quality and service got vast number of users trust.Adhere to People-oriented, technology first, our factory has lots of advanced and technology and management stuff, at the same time we are cooperating with international famous enterprise as OEM factory, dedicate to create Chinese economic practical NC cutter, and promote numerical control automation cutting technology.The YH series CNC cutting machine and welding machine absorbs domestic and foreign the advantage, gradually formed independent intellectual property rights products. The mechanical structure design reasonable, performance stable, operation safe and reliable, the practice has proved our equipment durable.Our factory insists on catching up with the advanced technology, at the same time we are emphasizes the product quality and considerate service. We offer our customers the full set of solutions, not only a set of equipment. At receiving the customers' order, we firstly to understand the demand of customer, then according to the customers' requirements to organize produce the products. We are always follow-up, from the equipments delivery to the customers produce, qualified products.YAHONG NC control products are your best choice, and YAHONG staffs are your friends worthy of your trusted. We will continue to work hard, and constantly develop more and better new products. Choose YAHONG, choosing success.The success of clients is our success. Let us common development, and realize the win-win results.
