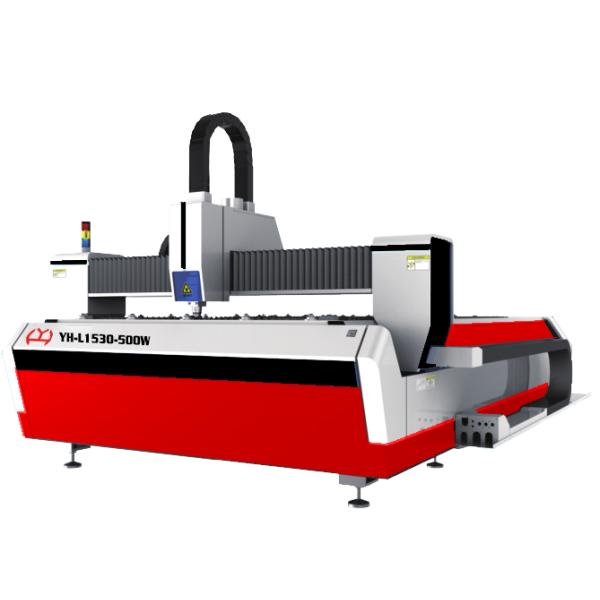

Water Cooling Fiber Laser Cutting Machine Equipment For Carbon Steel Long Lifespan
Water Cooling Fiber Laser Cutting Machine Equipment For Carbon Steel Long Lifespan
Specifications
Brand Name :
Yahong
Model Number :
YH3015
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T , L/C , Western Union, MoneyGram
Supply Ability :
20 pcs per month
Delivery Time :
30 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Rycas Fiber laser cutting machine
Max cutting size :
3000×1500 mm
Max Cutting Speed :
15m/min
Fiber Length (m) :
10m
Boundary dimension L×W×H(mm) :
4191×2520×1326
Type of cooling :
water-cooling
Focal length F(mm) :
150
Fiber Laser :
Rycas-500W
Description

Laser Wavelength (nm) 1070 Single Table Fiber Laser Cutting Machine For Carbon Steel

Product introduction:

Xuzhou Yahong CNC Equipment Factory focus on laser cutting machines for many years, has accumulated rich experience in the field of laser cutting, relying on designing and manufacturing advantages of Yahong group, have the ability to manufacture large laser cutting equipments.

Optical fiber laser as the fourth generation of laser technology, has superior performance like long life, good flexible, low power consumption, free of maintenance, easy integration and so on ,being widely used in laser cutting, which is recognized as the most stable in the global performance .

Applicable materials: professional used to cut thin sheet metal, in a variety of high-quality cutting 0.5 ~ 10mm carbon steel sheet, 0.5 ~ 4mm stainless steel plate, can also be cutting aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminum zinc plate and other metal materials.

Basic configration:

No. Description Brand Origin
1 Machine main body Yahong China
2 CNC operationg carbinet Yahong China
3 Smoke dust sucking structure Yahong China
4 air conditioning cabinet Yahong China
5 Fiber Laser Rycas-500W China
6 optical module Import America
7 Conductive fiber Import America
8 QBH connector Import America
9 Laser cutting head RayToolAG Swiss
10 laser chiller Han’s China
11 CNC system Baichu China
12 Capacitive THC Baichu China
13 Servo motor Fuji Japan
14 IPC ADVANTECH Taiwan

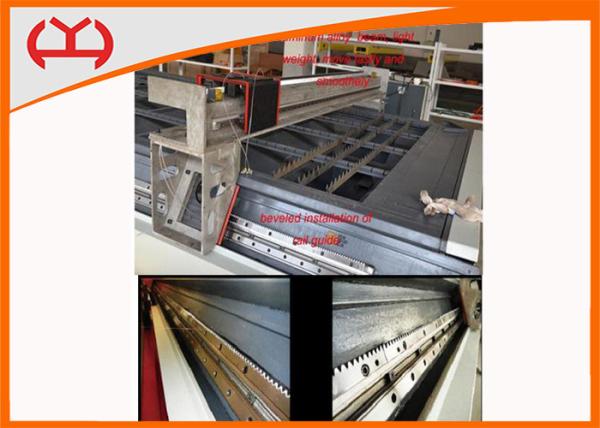

15 Gear rack YYC/ Level 6 precision Taiwan
16 Linear Guide Bosch Rexroth Germany
17 Precision reducer Shimpo/3 Arc-min Japan
18 Proportional valve SMC Japan
19 high-pressure valve ARK Korea
20 Electronic pieces Schneider France
21 Solenoid valve SMC Japan
22 Air cylinder AirTAC Korea
23 Air Conditioner WINHENG China
24 Cutting software Baichu China
25 Composing software SmartNest China

Technical indicators:

1. Machine tool technology parameters

Items Technical parameters
Max cutting size (mm) 3000×1500
The workpiece maximum height (mm) 90
Effective travel X axle(mm) 1550
Y axle (mm) 3050
Z axle (mm) 100
PositionaI accuracy X axle (mm/m) ±0.05/1000
Y axle (mm/m) ±0.05/1000
Z axle (mm/m) ±0.01/100
repeated positioning accuracy X axle (mm) ±0.01
Y axle (mm) ±0.01
Z axle (mm) ±0.005
Rapid positioning speed X axle (m/min) 72
Y axle (m/min) 72
Z axle (m/min) 15
Max Cutting Speed (m/min) 15
IP Grade IP54
Total weight (T) 4.35
Machine Power Consumption (Kwh) 1.6
Boundary dimension L×W×H(mm) 4191×2520×1326

2. Laser & process parameters

Items Technical parameters
working mode Continuous/modulation
Laser power(W) 500
Laser wavelength (nm) 1070
The maximum modulation frequency (KHz) 5
laser mode Multi mode
Optical quality (M2) 2.2mm*mrad
Power adjust range (%) 5-100
Fiber Length (m) 10m
Type of cooling water-cooling
Operating temperature (℃) 10-40
Long-term stability (24h) ﹤2%
Laser life(h) 100000
maximum cutting thickness MS (mm) 12
SS(mm) 4
cutting speed (1mm MS) 15m/min
Focal length F(mm) 150
Adjustable focus range (mm) 0-10
Overall Power Consumption (Kwh) 4

CNC system Introduction:

FSCUT1000 laser cutting control system is Shanghai BaiChu(BC) electronic technology co., LTD., independent research and development of an economical laser cutting control system. Widely used in the field of metal and nonmetal laser cutting. Because of its outstanding performance in the field of YAG laser cutting, by the vast number of high-end users.

Main functions:

1. Support the AI, DXF, PLT, Gerber, and ect.graphics data format, accept raw Mater Cam, Type3, Wen Tai software into international standard G code.

2. When pen/lead in the external files such as DXF, automatic optimization, including: remove duplicate lines, merger connected lines, remove tiny graphics, automatic distinguish between inner and outer mold and sorting and so on. Automatic optimization process can be customized, the above each function can also be performed manually.

3. Support common editing and typesetting function, including scaling, rotating, alignment, replication, combination, smooth, merger, etc.

4. Set in the form of wysiwyg introduced pinout, slotting compensation, micro connection, bridge connection, over cut, leave a gap, etc.

5. Automatically distinguish between internal and external mold, and according to the internal and external mold to identify slot compensation direction, lead checks, etc.

6. Support the curve split, merge, curve smoothing, text transfer curve, parts merger, break up etc.

7. Flexible automatic sorting and manual sorting, supported by group part of the fixed processing order.

8. The unique processing order browsing function, more interactive than simulation to check the processing order.

9. Support section perforated, gradual perforation, pre-perforation, support of perforation and cutting process set up separate form of laser power, frequency, laser types,the types of gas, air pressure, following the height, etc.

10. Support along with speed the power regulation, can be set up separately lead in and lead out linear velocity.

Fiber Laser Cutting Machine:

Water Cooling Fiber Laser Cutting Machine Equipment For Carbon Steel Long Lifespan
