Sheet Metal IPG Fiber Laser Cutting Machine With SmartNest Composing Software
Sheet Metal IPG Fiber Laser Cutting Machine With SmartNest Composing Software
Sheet Metal IPG Fiber Laser Cutting Machine With SmartNest Composing Software
Sheet Metal IPG Fiber Laser Cutting Machine With SmartNest Composing Software
Sheet Metal IPG Fiber Laser Cutting Machine With SmartNest Composing Software
Sheet Metal IPG Fiber Laser Cutting Machine With SmartNest Composing Software
Sheet Metal IPG Fiber Laser Cutting Machine With SmartNest Composing Software
Sheet Metal IPG Fiber Laser Cutting Machine With SmartNest Composing Software
Sheet Metal IPG Fiber Laser Cutting Machine With SmartNest Composing Software
Sheet Metal IPG Fiber Laser Cutting Machine With SmartNest Composing Software
Specifications
Brand Name :
Yahong
Model Number :
YH3015
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T , L/C , Western Union, MoneyGram
Supply Ability :
20 pcs per month
Delivery Time :
30 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
IPG Fiber laser cutting machine
Max cutting size :
3000×1500 mm
Max Cutting Speed :
15m/min
IP Grade :
IP54
Laser power(W) :
500w
Service :
OEM
Focal length F(mm) :
150
Boundary dimension L×W×H :
4216×2165×1450 mm
Description

Sheet Metal IPG Fiber Laser Cutting Machine With SmartNest Composing Software

Product introduction:

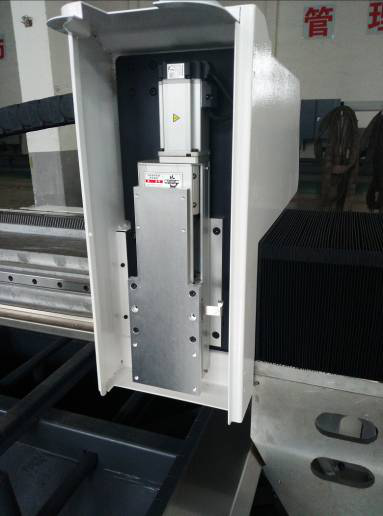

The Z axis device is to let the cutting head movement up and down. The up and down movement of cutting head is controlled by CNC system servo motor, motor driven ball screw, drive the Z axis slide up and down reciprocating movement to complete the Z axis stroke is 150 mm; Both ends up and down all use proximity switch control, at the same time in the elastic cushion on both ends of the ball screw, make sure the safety of movement.

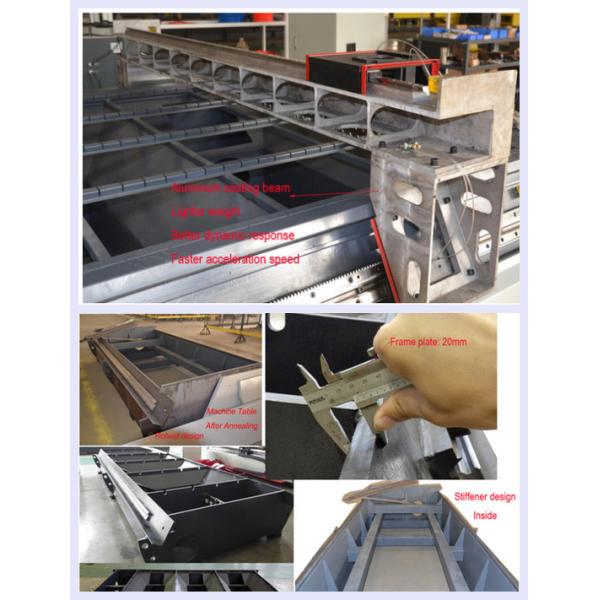

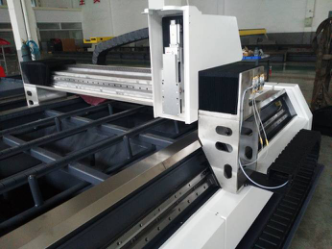

Sheet Metal IPG Fiber Laser Cutting Machine With SmartNest Composing Software Sheet Metal IPG Fiber Laser Cutting Machine With SmartNest Composing Software

Z axis can be either as a numerical control shaft for its single interpolation motion, at the same time can and X, Y axis linkage, and can switch to servo control, in order to meet the needs of different situations. Due to the Z axis servo is also controlled by the CNC system, so the follow-up of high accuracy, good stability, thus ensuring the quality of the cutting.

Z axis unit of capacitance sensor to detect the cutting nozzle, the distance to the plate surface feedback signals to the control system, and then controlled by Z axis motor drive control system of the cutting head movement, so as to control the cutting nozzle and plate distance unchanged, effectively guarantee the cutting quality. Cutting heads have adjust the nut of the focal point, according to the material and thickness of cutting material to adjust the position of the focal point, thus obtain good cutting section.

Main features:

1. photoelectric conversion efficiency can reach 30%, two times that of CO2.

2. less consumption of power source, CO2 is 20% ~ 30%;

3. no laser working gas, can save a lot of laser maintenance cost;

4. optical fiber transmission, without reflection lens, do not need to adjust the light path.

Basic configration:

No. Description Brand Origin
1 Machine main body Yahong China
2 CNC operationg carbinet Yahong China
3 Smoke dust sucking structure Yahong China
4 air conditioning cabinet Yahong China
5 Fiber Laser IPG-1000W America
6 optical module Import America
7 Conductive fiber Import America
8 QBH connector Import America
9 Laser cutting head RayToolAG Swiss
10 laser chiller Han’s China
11 CNC system Baichu China
12 Capacitive THC Baichu China
13 Servo motor Fuji Japan
14 IPC ADVANTECH Taiwan
15 Gear rack YYC/ Level 6 precision Taiwan
16 Linear Guide Bosch Rexroth Germany
17 Precision reducer Shimpo/3 Arc-min Japan
18 Proportional valve SMC Japan
19 high-pressure valve ARK Korea
20 Electronic pieces Schneider France
21 Solenoid valve SMC Japan
22 Air cylinder AirTAC Korea
23 Air Conditioner WINHENG China
24 Cutting software Baichu China
25 Composing software SmartNest China

Technical indicators:

1. Machine tool technology parameters

Items Technical parameters
Max cutting size (mm) 3000×1500
The workpiece maximum height (mm) 90
Effective travel X axle(mm) 3050
Y axle (mm) 1550
Z axle (mm) 100
PositionaI accuracy X axle (mm/m) ±0.05/1000
Y axle (mm/m) ±0.05/1000
Z axle (mm/m) ±0.01/100
repeated positioning accuracy X axle (mm) ±0.01
Y axle (mm) ±0.01
Z axle (mm) ±0.005
Rapid positioning speed X axle (m/min) 72
Y axle (m/min) 72
Z axle (m/min) 15
Max Cutting Speed (m/min) 15
IP Grade IP54
Total weight (T) 4.35
Machine Power Consumption (Kwh) 4.8
boundary dimension L×W×H(mm) 4216×2165×1450

2. Laser & process parameters

Items Technical parameters
working mode Continuous/modulation
Laser power(W) 500
Laser wavelength (nm) 1070
The maximum modulation frequency (KHz) 5
laser mode Multi mode
Optical quality (M2) 2.2mm*mrad
Power adjust range (%) 5-100
Fiber Length (m) 10m
Type of cooling water-cooling
Operating temperature (℃) 10-40
Long-term stability (24h) ﹤2%
Laser life(h) 100000
maximum cutting thickness MS (mm) 6
SS(mm) 2
cutting speed (1mm MS) 15m/min
Focal length F(mm) 150
Adjustable focus range (mm) 0-10
Overall Power Consumption (Kwh) 4

Laser cutting process parameter(for reference):

Material Thickness speed(m/min)
Carbon steel 1 15.3
2 8.1
3 5.2
4 3.2
5 2.4
6 2.1
8 1.3
10 0.9
12 0.7
Stainless Steel 1 18
2 9
3 3.8
4 1.6
5 1.2

Fiber Laser Cutting Machine:
