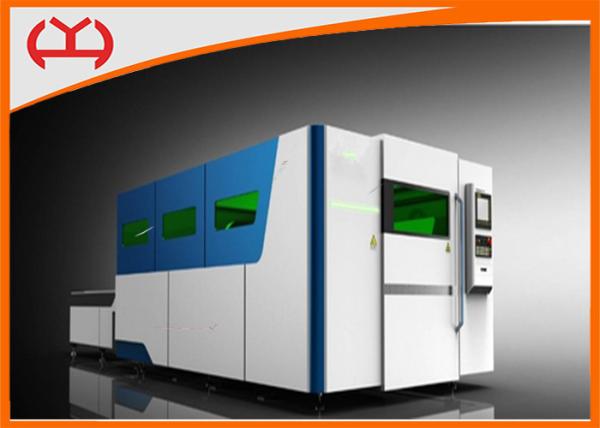

Accutrate 1000w Fiber Laser Cutting Machine Dvanced Gear Rack Transmission Structure
Accutrate 1000w Fiber Laser Cutting Machine Dvanced Gear Rack Transmission Structure
Specifications
Brand Name :
Yahong
Model Number :
YH3015
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T , L/C , Western Union, MoneyGram
Supply Ability :
20 pcs per month
Delivery Time :
30 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Fiber laser cutting machine
Applicable Material :
Metal
Laser Type :
Fiber Laser
Service :
OEM
Standard :
CE / ISO
Graphic Format Supported :
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, Other
Cooling Mode :
Water Cooling
Cutting Area :
3000*1500mm
Cutting Thickness :
12mm
Description

1kw IPG 1000W Metal Sheet Fiber Laser Cutting Machine Water Cooling

Description:

1. Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.

2. The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding, customer will have long-term payback.

Competitive Advantage:

We manufacture 500W 1000W, 1500W, 2000W,3000W, 4000W, 6000W fiber laser cutting machine

Complete machine has TWO years warranty.

3015, 4015, 4020, 6020 table available.

Open type single table, or double auto exchangeble table,

With or without protective cover, customize as your request.

Round/Square tube cutting available.Accutrate 1000w Fiber Laser Cutting Machine Dvanced Gear Rack Transmission Structure

Technical Parameters for Fiber Laser Cutting Machine :

Item

 Technical Parameters

Type

3015

Max Cutting Size(mm)

3000X1500

Max Height of The Workpiece(mm)

90

Effective Travel

X Axis (mm)

3050

Y Axis (mm)

1550

Z Axis (mm)

100

Positional Accuracy

X Axis(mm/m)

±0.04

Y Axis(mm/m)

±0.04

Z Axis(mm/m)

±0.01

Repeated
Positioning Accuracy

X Axis(mm)

±0.03

Y Axis(mm)

±0.03

Z Axis(mm)

±0.005

Repid Positioning Speed

X Axis(m/min)

80

Y Axis(m/min)

80

Z Axis(m/min)

30

Accelerated Sppeed(G)

1

The Laser Power(W)

500/700/1000/1500/2000/3000

The Power Consumption
of The Machine Tool((Kwh)

4.85

Level of Protection

IP54

Total Weight(T)

4.5

Boundary DimensionL×W×H(mm)

4610X2941X2078

Cutting Samples:

Accutrate 1000w Fiber Laser Cutting Machine Dvanced Gear Rack Transmission Structure

Service after sales:

1. Machine will be supplied with training video and user's manual in English for installation, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone, skype…. for fast solution. We may offer technician for onsite service, customer shall cover visa, ticket, local living cost.

2. Customer may come to our factory for training. We will offer training of installation, operation, machine trouble-shooting, and maintenance.

During training in our workshop, we offer free training and living cost for 7 days, limit 2 people.

Fiber Laser Cutting Machine:
Accutrate 1000w Fiber Laser Cutting Machine Dvanced Gear Rack Transmission Structure
Accutrate 1000w Fiber Laser Cutting Machine Dvanced Gear Rack Transmission Structure
