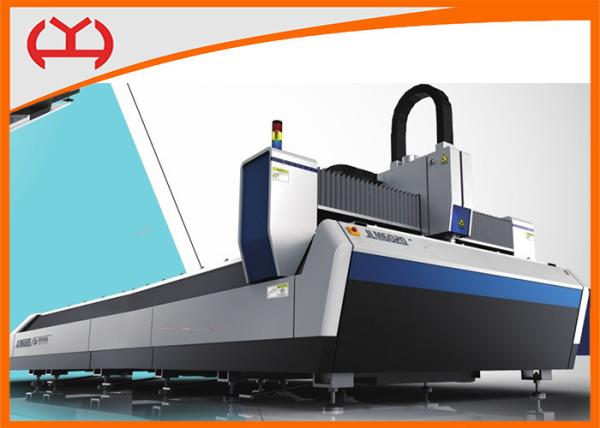

18mm Thick Fiber Laser Table , Fiber Laser Metal Cutting Machine 30 M / Min Cutting Speed
18mm Thick Fiber Laser Table , Fiber Laser Metal Cutting Machine 30 M / Min Cutting Speed
18mm Thick Fiber Laser Table , Fiber Laser Metal Cutting Machine 30 M / Min Cutting Speed
18mm Thick Fiber Laser Table , Fiber Laser Metal Cutting Machine 30 M / Min Cutting Speed
Specifications
Brand Name :
Yahong
Model Number :
YH6020
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T , L/C , Western Union, MoneyGram
Supply Ability :
20 pcs per month
Delivery Time :
30 days after received your payment
Packaging Details :
lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.
Product Name :
Fiber laser cutting machine
Applicable Material :
Metal
Cutting Speed :
30m/min
Cutting Thickness :
18mm
Laser Type :
Fiber Laser
Service :
OEM
Standard :
CE / ISO
Graphic Format Supported :
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, Other
Cutting Area :
6000*2000mm
Description

500W IPG 6020 Table Fiber Laser Cutting Machine For Metal Cutting

Description:

1. Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.

2. The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding, customer will have long-term payback.

3. Beam structure adopts the modular design, with aviation aluminum control processing, effectively controlled the weight of beam. This structure design greatly improves the high speed response, and precision of cutting.

Technical Parameters for Fiber Laser Cutting Machine :

Item Technical Parameters
Type 6015 6020 6523
Max Cutting Size(mm) 6000X1500 6000X2000 6500X2300
Max Height of The Workpiece(mm) 90 90 90
Effective Travel X Axis (mm) 6050 6050 6550
Y Axis (mm) 1550 2050 2350
Z Axis (mm) 100 100 100
Positional Accuracy X Axis(mm/m) ±0.05 ±0.05 ±0.05
Y Axis(mm/m) ±0.05 ±0.05 ±0.05
Z Axis(mm/m) ±0.01 ±0.01 ±0.01
Repeated
Positioning Accuracy		 X Axis(mm) ±0.03 ±0.03 ±0.03
Y Axis(mm) ±0.03 ±0.03 ±0.03
Z Axis(mm) ±0.005 ±0.005 ±0.005
Repid Positioning Speed X Axis(m/min) 80 80 80
Y Axis(m/min) 80 80 80
Z Axis(m/min) 30 30 30
Accelerated Sppeed(G) 1
The Laser Power(W) 500/700/1000/1500/2000/3000
The Power Consumption
of The Machine Tool((Kwh)		 4.85 6.3 6.3
Total Weight(T) 9.25 11.23 13.25
Boundary DimensionL×W×H(mm) 7848X2550X1326 7848X3105X1326 8426X3325X1449

Competitive Advantage:

1. Unique function of Preview of cutting work flow.

2. Support segmental pierce, Progressive pierce, Pre-pierce, support separately setting laser watt, frequency, laser type, air type, pressure, auto cutting height during pierce and cutting.

3. Support to set separate lead in/out speed according to adjustment of laser power.

4. Big storage, allowing user to save all cutting parameters to use it again on same material.

5. Breakpoint recovery, CNC can return to the point where the cutting stopped, allowing partial file cutting. It can go to any point to start there after stop or pause.

6. Same software can support round tube cutting and plate cutting, programming is same, and support intersect cutting.

FAQ:

What to do if the machine has a problem?

24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.

What other things also need after we bought your machines?

(1). With flame cutting: you just need to access to oxygen and fuel gas.

(2). With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.

Packing:

lining--anti-static film package firstly, waterproof, moistureproof.

Intermediate--around the perimeter of the box, there is bubble.

Outer--export standard packing, fumigation-free plywood.

Cutting Samples:

18mm Thick Fiber Laser Table , Fiber Laser Metal Cutting Machine 30 M / Min Cutting Speed
